Pagina 1/3

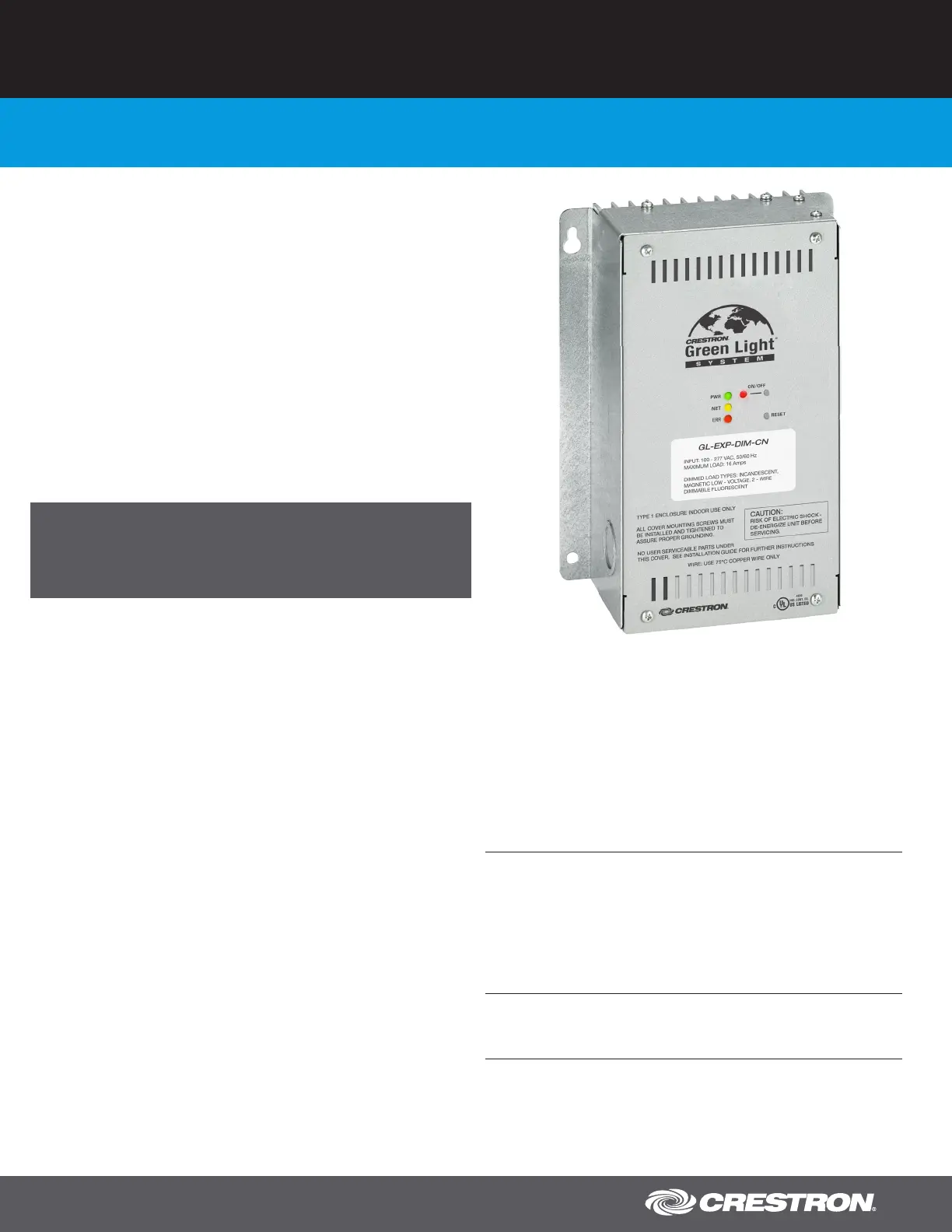

GL-EXP-DIM-CN
Crestron Green Light
®
Dimmer Expansion Module, Cresnet
®
crestron.com
|
800.237.2041
> Single-channel lighting dimmer
> Crestron® system integration via Cresnet
®
> Supports dimmable LED, incandescent, magnetic low-voltage,
neon/cold cathode, and 2-wire fluorescent lighting loads
> Rated 16 Amps at 100-277 Volts AC
> Forward phase dimming
> Zero-cross filter technology for reduced lamp flicker
> Extreme stability under noisy power line conditions
> Built-in air gap relay
> Closure-activated override mode
> UL
®
924 listed for emergency lighting control
> Surface mountable NEMA Type 1 enclosure
> Mounts on a wall panel or above a suspended ceiling
> UL 2043 listed for installation in an environmental air
handling space
The Crestron Green Light
®
GL-EXP Series delivers a family of professional
lighting control modules for Cresnet
®
or DALI
®
based lighting systems.
Designed for easy installation on a wall or above a suspended ceiling,
these modules offer a perfect solution for adding extra lighting zones to
any system without requiring an additional lighting cabinet.
The GL-EXP-DIM-CN is a single-channel dimmer expansion module
designed to control LED, incandescent, magnetic low-voltage, neon/cold
cathode, or 2-wire dimmable fluorescent lighting loads. Utilizing proprietary
zero-cross filter technology, the GL-EXP-DIM-CN compensates for line
voltage and frequency fluctuations, providing superior immunity to power
line noise and a dramatic reduction in lamp flicker.
Forward Phase Dimming
The GL-EXP-DIM-CN employs forward phase (leading edge) dimming to
handle inductive load types like magnetic low-voltage and neon, as well
as incandescent, LED, and 2-wire fluorescent.
Cresnet
®
Communications
The GL-EXP-DIM-CN interfaces with a Crestron
®
control system via
Cresnet. Cresnet is a simple 4-wire network bus that provides the
communications backbone for a system of Crestron lighting dimmers,
switches, keypads, shades, thermostats, and other devices.
Emergency Lighting Control
The GL-EXP-DIM-CN is UL
®
924 listed for use in controlling an emergency
lighting load. In the event of a power failure, a contact closure from a
power loss sensor (Crestron GLS-PLS-120/277, sold separately) activates
the override mode in the GL-EXP-DIM-CN to turn on the lighting load if it
is off (assuming line power is supplied by a backup power source). The
override dimming level can be preset to any value when commissioning
the lighting system, so even if the load is already on prior to a power
failure, it will change to the preset level when override mode is activated.
Plenum Rated NEMA Enclosure
The GL-EXP-DIM-CN is designed to be mounted to a vertical surface
and is UL 2043 compliant to allow for installation in an environmental air-
handling space above a suspended ceiling. Conduit knockouts are provided
on the bottom and lower sides of the unit. All connections are made via
screw terminals behind the front cover.
SPECIFICATIONS
Load Control
Dimmer Channels: 1
Load Rating: 16 Amps
Line Voltage: 100-277 Volts AC, 50/60 Hz
Dimmable Load Types: LED, incandescent, neon/cold cathode, magnetic
low-voltage, 2-wire dimmable fluorescent
Communications
Cresnet: Cresnet slave mode
Connections
NEUT: (3) Captive screw terminals;
Neutral connections for feed and load;
24 to 10 AWG (0.25 to 4.0 mm
2
) wire size
GL-EXP-DIM-CN Dimmer Expansion Module, Cresnet
®
crestron.com
|
800.237.2041
LINE: (2) Captive screw terminals;
Line power feed input and pass-through;
24 to 10 AWG (0.25 to 4.0 mm
2
) wire size
DIM: (1) Captive screw terminal;
Dimmed load output;
24 to 10 AWG (0.25 to 4.0 mm
2
) wire size
N/C: (1) Captive screw terminal;
No connection (not used)
OVERRIDE: (2) Captive screw terminals;
Low-voltage contact closure sensing input;
Activates override mode when a closure is sensed;
26 to 14 AWG (0.14 to 1.5 mm
2
) wire size;
For use with Class 2 wiring only
CRESNET: (4) Captive screw terminals;
Cresnet slave port (communications only, does not use Cresnet power);
26 to 14 AWG (0.14 to 1.5 mm
2
) wire size;
For use with Class 2 wiring only
Ground: (1) 3-terminal grounding block
Controls & Indicators
PWR: (1) Green LED, indicates line power is applied to either LINE terminal
NET: (1) Yellow LED, indicates Cresnet network communication
ERR: (1) Red LED, indicates a variety of error conditions via blinking
patterns (refer to the installation guide)
ON/OFF: (1) Pushbutton and (1) red LED, pushbutton toggles the load
output on and off (press and hold to cycle the dimming level up and down),
LED indicates the load output is energized
RESET: (1) Pushbutton, initiates hardware reset
SW1: (1) Two-position slide switch (behind front cover), enables/disables
the zero-cross detection filter (disabled by default)
SW2 – SW4: (3) Two-position slide switches (behind front cover), not used
Environmental
Temperature: 32° to 104° F (0° to 40° C)
Humidity: 10% to 90% RH (non-condensing)
Construction
Enclosure: NEMA Type 1, galvanized steel with gray matte powder
coated removable front cover panel, extruded aluminum heat sink on rear,
(2) integral mounting flanges, (4) 1/2” or 3/4” conduit knockouts on bottom
and lower left & right sides
Mounting: Surface mount, must be oriented upright and mounted to a
vertical surface with 6 inches (153 mm) minimum spacing above and
below for proper ventilation and heat dissipation
Dimensions
Height: 8.78 in (223 mm)
Width: 6.39 in (163 mm)
Depth: 3.16 in (81 mm)
Weight
3.43 lb (1.56 kg)
Compliance
C(UL)US, UL 924, UL 2043, FCC Part 15 Class A commercial use
MODELS & ACCESSORIES
Available Models
GL-EXP-DIM-CN: Crestron Green Light
®
Dimmer Expansion Module,
Cresnet
®
Available Accessories
CRESNET: Cresnet
®
Control Cable
GLS-PLS-120/277: Power Loss Sensor
Notes:
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
online at www.crestron.com/salesreps or by calling 800-237-2041.
The specific patents that cover Crestron products are listed online at: patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Cresnet, and Crestron Green Light are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries. UL is either
a trademark or registered trademark of UL LLC in the United States and/or other countries. Other
trademarks, registered trademarks, and trade names may be used in this document to refer
to either the entities claiming the marks and names or their products. Crestron disclaims any
proprietary interest in the marks and names of others. Crestron is not responsible for errors in
typography or photography. Specifications are subject to change without notice.
©2017 Crestron Electronics, Inc.
