Installing the Front I/O Connectors
FEATURES

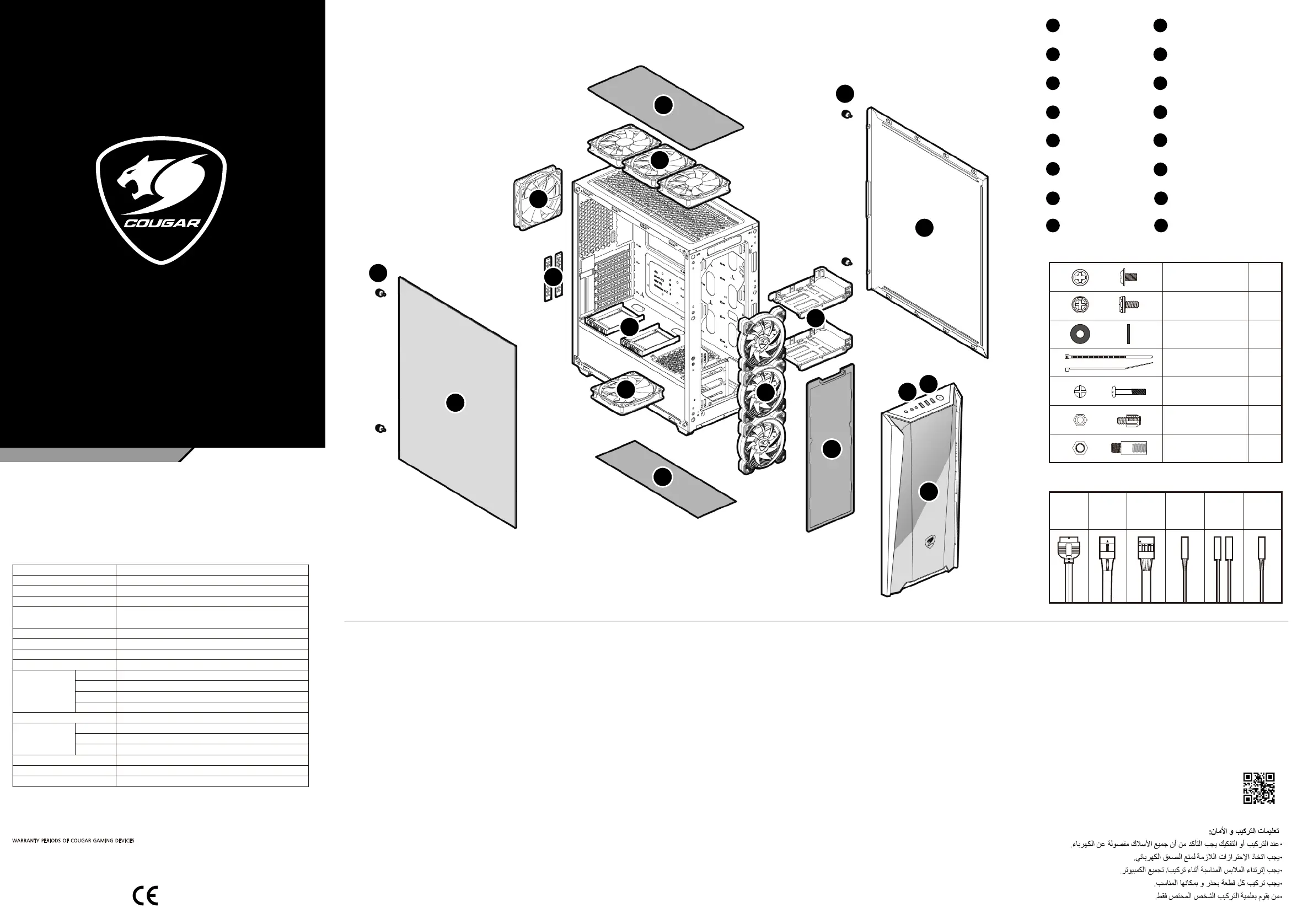

Assembly Drawing
●
Подробни инструкции за употреба
изтеглете от:https://cougargaming.com/bg
БЪЛГАРИЯ
България QR код
ENGLISH
●
Transparent acrylic front panel
●
Massive tempered glass left side panel
●
Support for up to E-ATX motherboard
●
Support for up to a 360mm water cooling radiator and eight fans
●
Support for up to 410mm graphics cards
●
Support for vertical GPU
●
Support for two 3.5" HDDs and five 2.5" SSDs or seven
2.5" SSDs.
POLISH
●
Przezroczysty, akrylowy panel przedni
●
Lewy panel ze szkła hartowanego
●
Obsługa płyt głównych do E-ATX
●
Obsługa chodnicy wodnej o szerokości do 360 mm i ośmiu wentylatorów
●
Obsługa kart graficznych o długości do 410 mm
●
Obsługa procesora graficznego montowanego pionowo
●
Obsługa dwóch dysków twardych 3.5" HDD i pięciu dysków
2.5" SSD lub siedmiu dysków 2.5" SSD
ITALIA
●
Pannello anteriore in acrilico trasparente
●
Pannello sinistro in vetro temperato massiccio
●
Supporto fino a una scheda madre E-ATX
●
Supporto per un radiatore per raffreddamento ad acqua fino
a 360 mm e otto ventole
●
Supporto per schede grafiche fino a 410 mm
●
Supporto per GPU verticale
●
Supporto per due HDD da 3,5" e cinque SSD da 2,5" o sette
SSD da 2,5"
PORTUGUÊS
●
Painel frontal em acrílico transparente
●
Painel esquerdo em vidro maciço temperado
●
Apoio até à placa-mãe E-ATX
●
Suporte para um radiador de arrefecimento a água até 360mm
e oito ventiladores
●
Suporte para placas gráficas até 410mm
●
Suporte para GPU vertical
●
Suporte para dois HDD de 3,5" e cinco SSD de 2,5" ou sete
SSD de 2,5"
РУССКИЙ
●
Прозрачная акриловая передняя панель
●
Массивная боковая панель из закаленного стекла
●
Поддержка всех материнских плат до формата E-ATX
●
Поддержка водяного охлаждения радиатора размером до
360 мм и восьми вентиляторов
●
Поддержка всех видеокарт размером до 410 мм
●
Поддержка вертикального графического процессора
●
Поддержка двух 3.5-дюймовых HDD и пяти 2.5-дюймовых
SSD или семи 2.5-дюймовых SSD.
DEUTSCH
●
Transparente Acrylfrontblende
●
Linke Blende aus massivem Hartglas
●
Unterstützt Motherboards bis E-ATX
●
Unterstützt einen Wasserkühlkörper bis 360 mm und acht
Lüfterherboard
●
Unterstützt Grafikkarten bis 410 mm
●
Unterstützt vertikale GPU
●
Unterstützt zwei 3,5-Zoll-Festplatten und fünf 2,5-Zoll-SSDs
oder sieben 2,5-Zoll-SSDs
ESPAÑOL
●
Panel frontal de acrílico transparente
●
Panel izquierdo de cristal templado masivo
●
Soporte para la placa madre de hasta E-ATX
●
Soporte para un radiador de refrigeración de agua de hasta
360 mm y ocho ventiladores
●
Soporte para tarjetas gráficas de hasta 410 mm
●
Soporte para la GPU vertical
●
Soporte para dos discos duros de 3,5" y cinco SSD de 2,5"
o siete SSD de 2,5"
FRANÇAIS
●
Panneau frontal en acrylique transparent
●
Panneau gauche en verre trempé massif
●
Prise en charge des cartes mères jusqu'à E-ATX
●
Prise en charge d'un radiateur de refroidissement à eau de
360 mm et de huit ventilateurs
●
Prise en charge des cartes graphiques jusqu'à 410 mm
●
Compatible avec les GPU verticaux
●
Compatible avec deux disques durs de 3,5" et cinq disques durs
de 2,5" ou sept disques durs de 2,5"
●
透明压克力面板
●
全景透视钢化玻璃左侧盖
●
最高支援E-ATX主机板
●
最高支援360mm水冷排与8个风扇
●
最高可安装410mm显卡
●
支援显卡垂直安装
●
支援2个 3.5英寸 HDD硬盘(可转换为2个2.5英寸SSD硬盘)
与5个 2.5英寸SSD硬盘
中 文
●
투명 아크릴 전면 패널
●
좌측 패널의 크고 단단한 대형 강화유리
●
최대 E-ATX 마더보드 지원
●
최대 360mm 수랭식 라디에이터 및 팬 8개 지원
●
최대 410mm 그래픽 카드 지원
●
수직 GPU 지원
●
3.5" HDD 2개 및 2.5" SSD 5개 또는 2.5" SSD 7개 지원
한국어
●
透明アクリルパネルを装備
●
強化ガラスウィンドウでPCの内部が見えるので内部のパーツを引き立てます
●
E-ATXマザーボードに対応
●
8個のファンと360ｍｍの水冷ラジエーターを装着でき、優
れた放熱効果を確保します
●
最大410mmグラフィックカードに対応できます
●
グラフィックカードを垂直に取付可能
●
3.5"のHDDを2個と2.5" SSDを5個もしくは2.5"SSDを7個搭載可能
日本語
MX660-T
CGR-5BMSB-T
Mid-Tower
213 (W) x 495 (H) x 474 (D) mm
8.4 (W) x 19.5 (H) x 19 (D) in.
Mini ITX / Micro ATX / ATX / CEB / E-ATX
120mm x 1 (RGB fan x 1 pre-installed)
2
120mm x 1 (for HDD Cooling)
8 Max.
*360mm / 280mm / 240mm / 140mm / 120 mm
*360mm / 280mm / 240mm / 140mm / 120 mm
120mm
200 (mm) / 7.9 in.
5+2 (converted from 3.5" drive bays) / (2 SSD trays included)
7+2
*120mm x 3 / 140mm x 2
120mm x 3 / 140mm x 2
USB3.0 x 1, USB2.0 x 2, Mic x 1 / Audio x 1, Reset Button
Model Name
Model No.
Case Form Factor
Motherboard Type
Dimensions (WxHxD)
I/O Panel
3.5" Drive Bay
2.5" Drive Bay
Expansion Slots
Cooling Fan
Support
Water Cooling
Support
Maximum Number of Fans
Max. Graphics Card Length
Max. CPU Cooler Height
Max. PSU Length
* Please choose either of front or top to install a 360mm radiator.
* Top 360mm radiator supports within 30mm thickness.
* Please choose either of a TOP 360mm radiator or FRONT 120mm x 3 fans to install.
Specifications might vary depending on the country or region of sale.
410 (mm) / 16.1 in.
165 (mm) / 6.5 in.
Rear
PSU cover
Front
Top
Rear
Front
Top
C
A
B
P
F
N
I
J
O
H
G
M
K
L
D
E
E
Power button
/ Reset button
A
Removable front panel
C
USB3.0 ,USB2.0
Mic , Audio
B
F
Right side panel
Thumb screws
E
D
Tempered glass
left panel
Slot covers
G
1 x 120mm fan on PSU cover
for HDD Cooling
O
2.5" HDD/SSD trays
H
Air filter at the front
P
3.5" HDD trays (compatible
for 2.5" HDD/SSD)
I
Air filter at the bottom
J
Air filter on the top
L
120mm fan for rear panel
(pre-installed)
M
2 x 140mm / 3 x 120mm fans
K
N
USB 3.0 HD Audio
HD AUDIO
POWER SW
RESET SW
USB3.0
USB 2.0
USB
Power SW Reset SWPower LED
POWER LED
POWER LED
+
-
MX660-T is an upgraded mid-tower case, which continues COUGAR’s iconic style.
The transparent front panel features minimalist style with folding angles. With a crystal
clear tempered glass left panel, you are freely to create a clear view of your computer’s
internal components.
ADVANCED MID-TOWER CASE WITH
COUGAR’S ICONIC DNA
Made in China
For more information, please visit
www.cougargaming.com
Compucase Enterprise Co.,Ltd.
All rights reserved.
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan,
Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail:service@cougargaming.com
COUGAR USA Technical Service
Tel: (833) 256-3778
Mail: rma@compucaseusa.com
https://cougargaming.com/support/contact/upload/
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR PC Case
Warranty : 1 Year
This warranty gives you specific legal rights.
You may also have other rights
granted under local law.
These rights may vary.
*only for electrical components
MX660
-
T
Accessory kit
X 5
X 12
Power supply screws
2.5"
HDD
/ SSD EVA washers
X 17
Motherboard
/ SSD screws
Fan screws
(on PSU cover for
HDD cooling)
X 4
X 5
Cable ties
X 5
Stand-off
for motherboard
X 2
Stand-off
for VGA riser cable
Removing the side panels
120
140
240
280
120
120
140
120
120
Top 360mm radiator supports
within 30mm thickness.
Please choose either of front or top to install a 360mm radiator.
Installing water cooling radiators & cooling fans
TOP
REAR
PSU COVER
1
2
3
4
Installing Vertical Graphic Card
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа
описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
●
Например, AG=17=2017 год
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
A
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже, и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
B
Installing 2.5" HDD/SSD Installing 3.5" HDD
LeftRight Right Right
1 2
3
4 5
6
7
Right
Left
1
2
3
4
7
5 6
●
Please stick EVA washers on SSD holes
before installing 2.5" SSD.
2.5" HDD/SSD
EVA washers
1
4
4
2
Connectors
1
2
Connectors
PUSH &
HOLD the Bar
PUSH &
HOLD the Bar
3
PUSH &
HOLD the Bar
1
2
Lift up with 45°
Angle to Remove it
2
1
1
Right
1
3
2
1
Left
1
2
Stand-off
for VGA riser cable
The vertical graphic
card and the PCI-E
riser cable are not
included in the
package, please
purchase separately.
Please choose either
of a Vertical Graphic
Card or 2.5" SSD
trays on the PSU cover
to install.
FRONT
*360
*120 140
120140240280360
* Please choose either of a
TOP 360mm radiator or
FRONT 120mm x 3 fans
to install.
3
Max. Graphics Card
Length :
410mm
