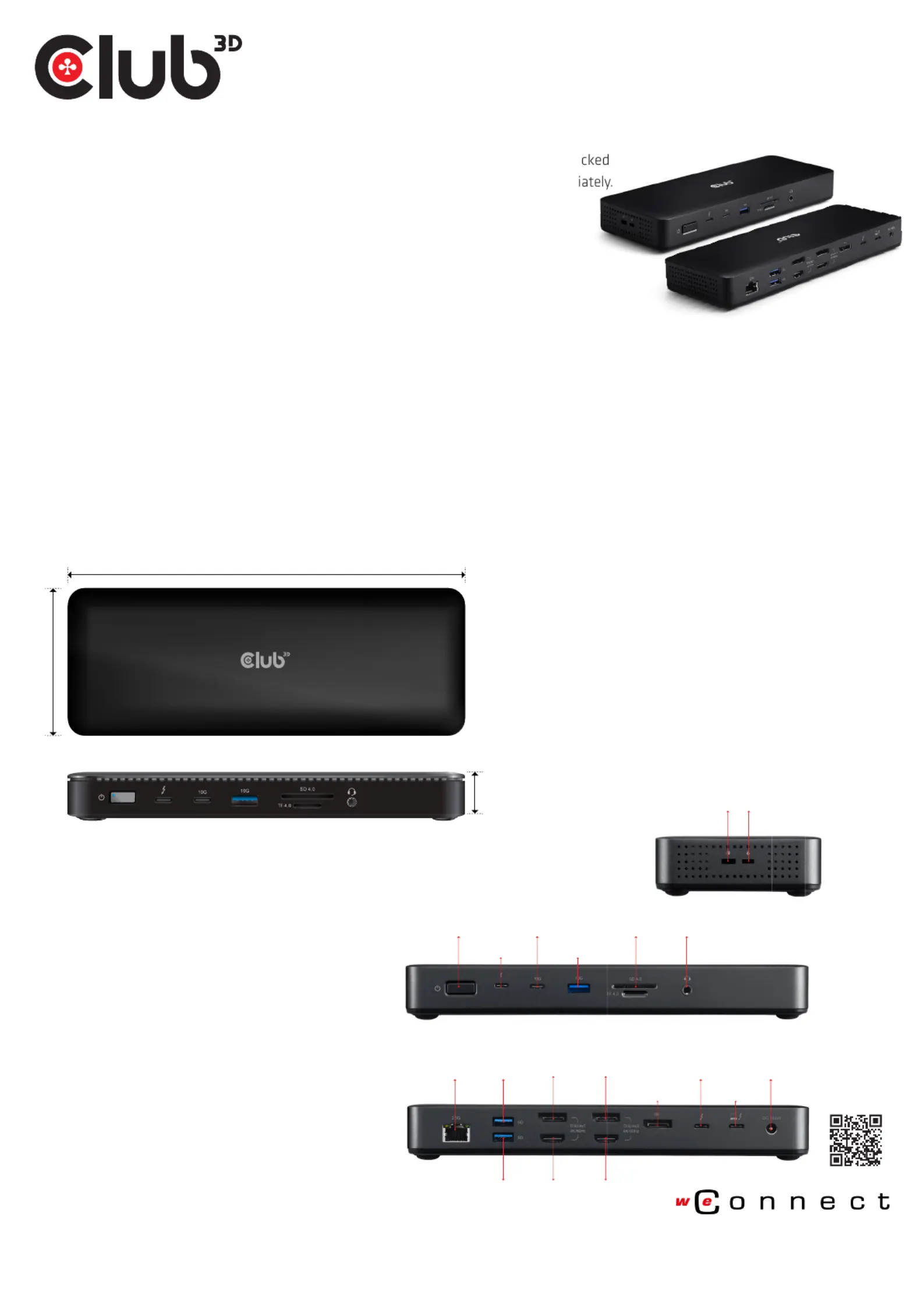

CSV-1583 QUICK INSTALLATION GUIDE
Thank you for purchasing our CSV-1583.
After unpacking the product, please make sure you have all the items provided and che
for any damages. In case of any missing damaged parts please inform your supplier immed
You should have:
•
CSV-1583 Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
•
Power Adapter 21V(150Watt)
•
TB4™ Cable 0.8m / 2.62 ft M/M(for connection to host)
•
QR code for the QIG(Quick Installation Guide)
The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
with DisplayLink® which provides the most advanced, ecient, and versatile I/O solution
available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output
max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max,
M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45
supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it
supports smart power function which enables to distribute power according to the power
consumption of the connected device, making full use of external power supply. It is
designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.
Copyright © 2024 Club 3D B.V. www.club-3d.com
Disclaimer: While we endeavour to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Products might obtain a certification during their lifetime. This doesn’t change
or alter the product specifications and/or performance in any way. Club 3D will provide the updated information on their website www. Club-3d.com at her discretion. Therefore Club 3D does not accept any rights claimed on the content of this document. Please refer to a full
overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
In this document you can find:
Measurements
Avalible interfaces
Operation Notes
Measurements
How does it work
How does it work?
1
Please install the DisplayLink Driver which is
available under downloads in the product page at
www.club-3d.com - search item CSV-1583
2
Connect the Power Supply to the 21V DC jack
3
Connect the host with the provided TBT4 cable
4
Connect your Displays to the respective
DisplayPort™ and/or HDMI™ ports
5
Connect your 2.5Gbps connection to the Rj-45 jack
6
You can connect your other
peripherals to the respective ports
Meassurements are approx.
ALL connectors on the CSV-158 are FEMALE3
22,5 cm/ 8,86"
8,5 cm /3,35 "
2,9 cm / 0.11"
Power Switch
ON/OFF
Thunderbolt4
8K
USB Type-C
10G
USB Type-A
10G
SD/TF
Card Reader
Audio
In/OUT
Nano
Anti-theft lock
Kensington
Anti-theft lock
Ethernet
RJ45 2.5G
DC Power Jack
Thunderbolt4
to host
Thunderbolt 4
8K
DisplayPort
8K
DisplayPort
4K
DisplayPort
4K
USB Type-A
5G
USB Type-A
5G
HDMI
4K
HDMI
4K
Copyright © 2024 Club 3D B.V. www.club-3d.comCSV-1583 QIG July 2024
Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
Warning Safe Usage: Only to be used at altitude 2000 meters/6562 feet and below.
CSV-1583 QUICK INSTALLATION GUIDE
Copyright © 2024 Club 3D B.V. www.club-3d.com
Stream 1 and Stream 2
Maximum Single Display support 8K30Hz
Allows 2 Video stream max at the same time
Stream 3
DisplayPort Support Max 8K30Hz
Above 3 Video Streams allow to output 2 Streams at the same time
Single 8K30Hz or Dual 4K60Hz or 8K30Hz + 4K30Hz supporting
Extended Desktop Displays
Video 4 and 5 are USB mode ( DisplayLink)
Support Dual Max 4K60Hz Output
Important notice
2 stream output is only possible on Thunderbolt4 or USB4 compatible devices.
USB C Devices with Alt mode only support 1 stream. Except for the USB Mode from DisplayLink.
Stream1:
TB4 Max 8K30Hz
Stream2:
TB4 Max 8K30Hz
Stream3:
Max 8K30Hz
Video5:
HDMI or DP
Max 4K60Hz
Video4:
HDMI or DP
Max 4K60Hz
Copyright © 2024 Club 3D B.V. www.club-3d.com
Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
CSV-1583 QIG July 2024
