Pagina 1/20
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
© 2022 Carrier. All rights reserved. Edition Date: 04/22 Form No: 40VM-6SI
A Carrier Company Printed in U.S.A. Replaces: 40VM-5SI
1
Installation and Maintenance Instructions
CONTENTS Page
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
DIMENSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 1 — Unpack and Inspect Units . . . . . . . . . . . . . . 5
Step 2 — Position the Unit . . . . . . . . . . . . . . . . . . . . . . 5
Step 3 — Install Ductwork. . . . . . . . . . . . . . . . . . . . . . . 6
Step 4 — Connect Piping . . . . . . . . . . . . . . . . . . . . . . . 6
Step 5 — Complete Electrical Connections . . . . . . . . 7
Step 6 — Position and Connect Controller . . . . . . . . . 7
ACB (Auxiliary Control Board) Interface . . . . . . . 12
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pre-Start Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
System Operation Check . . . . . . . . . . . . . . . . . . . . . . 12
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
INDOOR UNIT ADDRESSING . . . . . . . . . . . . . . . . 12
Wireless Remote Controller (40VM900001) . . . . . . 12
Non-Programmable Controller. . . . . . . . . . . . . . . . . 13
Programmable Controller . . . . . . . . . . . . . . . . . . . . . 13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 14
APPENDIX A — DIP SWITCH SETTINGS . . . . . . . 16
APPENDIX B — NAMEPLATES. . . . . . . . . . . . . . . 17
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . 17
APPENDIX C — FAN CURVES . . . . . . . . . . . . . . . 19
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire, electrical shock,
or other conditions which, may cause death, personal injury or
property damage. The qualified installer or agency must use
factory authorized kits or accessories when modifying this
product.
Follow all safety codes. Wear safety glasses, protective
clothing, and work gloves. Use quenching cloth for brazing
operations. Have fire extinguisher available. Read these
instructions thoroughly and follow all warnings or cautions
included in literature and attached to the unit. Consult local
building codes and the current editions of the National
Electrical Code (NEC) ANSI/NFPA (American National
Standards Institute/National Fire Protection Association) 70.
For Canada, refer to the current editions of the Canadian
Electrical Code CSA (Canadian Standards Association) C22.1.
Understand the signal words —
DANGER, WARNING, and
CAUTION. DANGER identifies the most serious hazards,
which will result in severe personal injury or death.
WARNING signifies hazards that could result in personal injury
or death. CAUTION is used to identify unsafe practices, which
could result in minor personal injury or product and property
damage.
Recognize safety information. This is the safety-alert
symbol ( ). When this symbol is displayed on the unit and in
instructions or manuals, be alert for the potential of personal
injury. Installing, starting up, and servicing the equipment can
be hazardous due to system pressure, electrical components,
and equipment location.
WARNING
Electrical shock can cause personal injury and death. Shut
off all power to this equipment during installation. There
may be more than one disconnect switch. Tag all
disconnect locations to alert others not to restore power
until work is completed.
WARNING
When installing the equipment in a small space, provide
adequate measures to avoid refrigerant concentration
exceeding safety limits due to refrigerant leak. In case of
refrigerant leak during installation, ventilate the space
immediately. Failure to follow this procedure may lead to
personal injury.
WARNING
DO NOT USE TORCH to remove any component. System
contains oil and refrigerant under pressure.
To remove a component, wear protective gloves and
goggles and proceed as follows:
a. Shut off electrical power to unit.
b. Recover refrigerant to relieve all pressure from
system using both high pressure and low
pressure ports.
c. Traces of vapor should be displaced with
nitrogen and the work area should be well
ventilated. Refrigerant in contact with an open
flame can produce toxic gases.
d. Cut component connection tubing with tubing
cutter and remove component from unit. Use a
pan to catch any oil that may come out of the
lines and as a gage for how much oil to add to
the system.
e. Carefully unsweat remaining tubing stubs
when necessary. Oil can ignite when exposed to
torch flame.
Failure to follow these procedures may result in personal
injury or death.
40VMV012A-054A
Vertical AHU Fan Coil for
Variable Refrigerant Flow (VRF) Systems
2
GENERAL
The 40VMV vertical AHU (air-handling unit) is equipped with
a DC motor. The unit features dual drain spouts so it can be
mounted vertically or horizontally, and is ideal for closet
applications. Through thermostatic control of operations,
conditions can be varied to suit diverse requirements and
activities.
The equipment is initially protected under the manufacturer’s
standard warranty; however, the warranty is provided under the
condition that the steps outlined in this manual for initial
inspection, proper installation, regular periodic maintenance,
and everyday operation of the unit be followed in detail. This
manual should be fully reviewed in advance before initial
installation, start-up, and any maintenance. Contact your local
sales representative or the factory with any questions BEFORE
proceeding.
Table 1 shows components that may or may not be used for a
particular installation. Table 2 lists physical data for each unit
size. See Fig. 1 for model number nomenclature. Fig. 2 shows
unit dimensions.

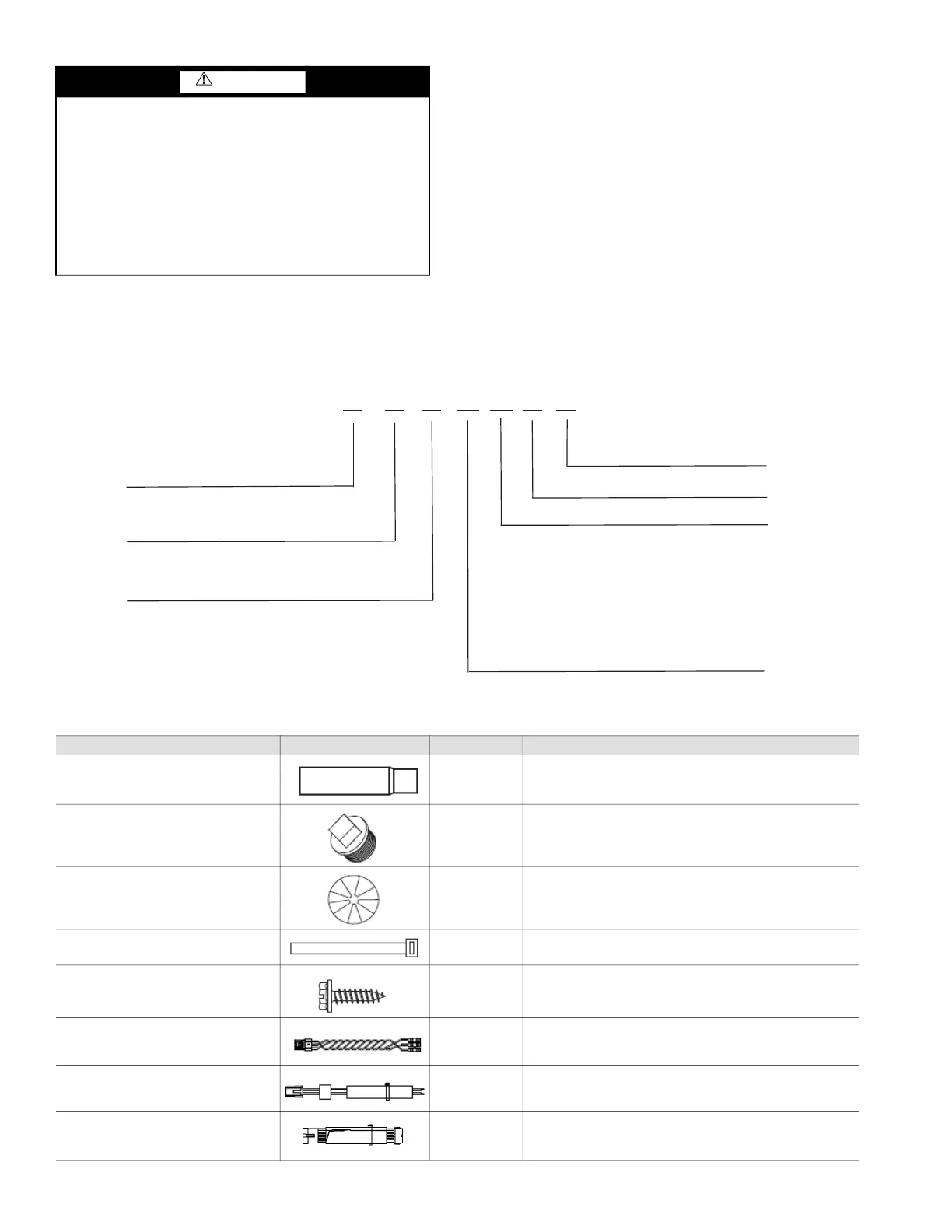

Fig. 1 —Model Number Nomenclature
Table 1 — Components Shipped With Unit
CAUTION
DO NOT re-use compressor oil or any oil that has been
exposed to the atmosphere. Dispose of oil per local codes
and regulations. DO NOT leave refrigerant system open to
air any longer than the actual time required to service the
equipment. Seal circuits being serviced and charge with
dry nitrogen to prevent oil contamination when timely
repairs cannot be completed. Failure to follow these
procedures may result in damage to equipment. For
information about replacement oil type and viscosity, see
the Installation, Start-Up, and Service Instructions for the
38VMAH and 38VMAR outdoor units.
NAME SHAPE QUANTITY FUNCTION
Copper pipes 2 Reducer for smaller pipe diameter (only for size 018 unit).
Drain plug 2 Plug for drain pan outlet
Wire grommet 2 For wire routing
Tie rope 3
————————————————————
Screw 4
————————————————————
PQ connection wire 2 To connect the outdoor unit, indoor unit and sub MDC.
Connecting wire 1 For occupancy sensor
No Beep Harness 1 Prevent beeping noise
LEGEND
MDC — Multiport Distribution Controller
Equipment Type
40
—
Indoor Fan Unit Coil
Voltage (V-Ph-Hz)
V
M — VRF
P
roduct Type
3 — 208/230-1-60
Blank
Model Type
V — Vertical AHU —
Capacity (Btuh)
012 — 12,000
018 — 18,000
024 — 24,000
030 — 30,000
036 — 36,000
048 — 48,000
40
054 — 48,000
VM
V18
--
3
A
A —
Design Revision
LEGEND
VRF — Variable Refrigerant Flow
