INSTALLATION:

SAFETY PRECAUTIONS:

NOTE: Product may not look exactly as shown in figures.

Tel: (613) 342-5424, Fax: (800) 263-4598

IFM742B13

IFM318A13-EC

10/21

EASY CONNECT

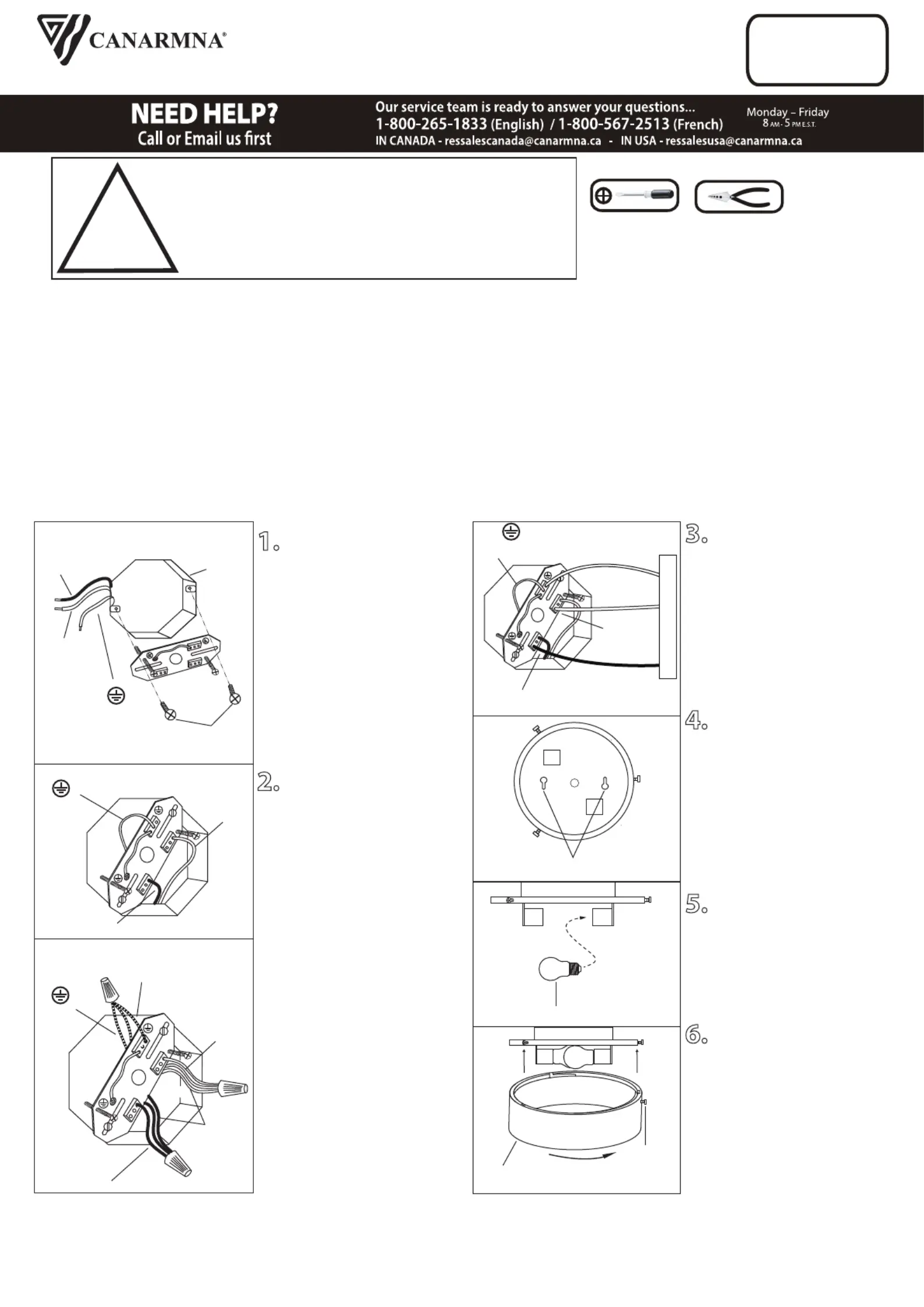

INSTALLATION INSTRUCTIONS

TM

!

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS

READ ALL INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

TOOLS AND MATERIALS REQUIRED:

Phillips

Screwdriver

Wire Cutters

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.

DO NOT REMOVE INSULATION FROM FIXTURE.

2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.

3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY

A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

4. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH

CIRCUIT CONDUCTOR.

5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH

A CLEAN, SOFT CLOTH.

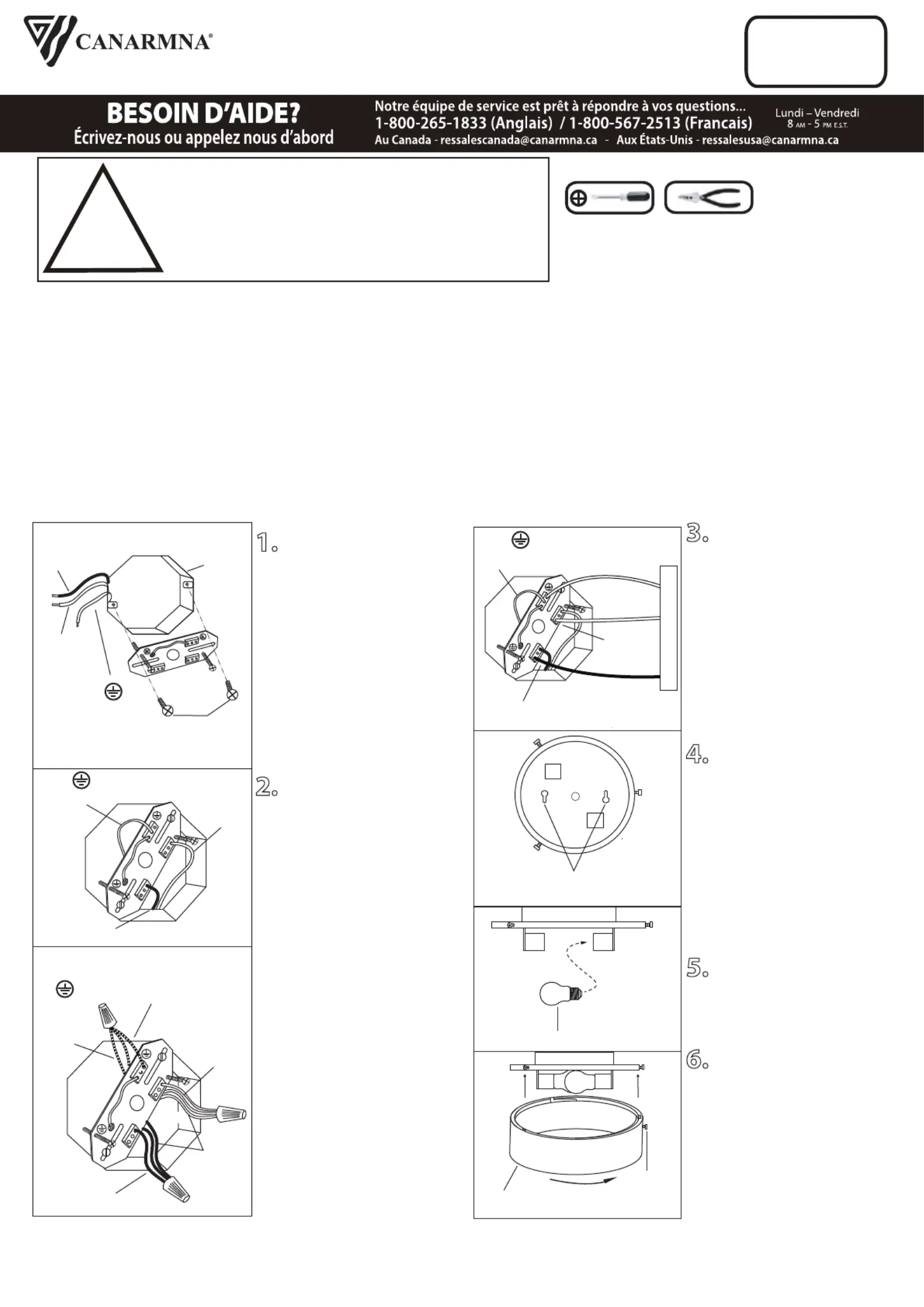

1. Install the mounting

bracket to the electrical box

using two electrical box

screws (not included). (Note:

Do not adjust the two

support screws at this time.)

2

. Option 1: Connect

(push) electrical wires from

electric box (house wiring)

into correct inserts.

Option 2: For multiple black

(live) & white (neutral) wires

joined in the electrical box

(house wiring), attach a single

“black” and “white” Jumper

Wire before connecting. Strip

7mm from a 6” Jumper Wires

supplied. Then connect

(push) wires into correct

inserts.

Electrical

Box

Electrical box

screws

(L)

Black (Live)

(N)

White

(Neutral)

Green

(Ground)

L

(L)

Black (Live)

(L)

Black (Live)

(N)

White

(Neutral)

(N)

White

(Neutral)

Green

(Ground)

Green

(Ground)

Jumper

Wire

Jumper

Wire

L

N

L

N

Option 1

Option 2

3. Connect (push) electrical

wires from fixture into correct

inserts.

4.Tuck the electrical wires

into the electrical box and

position the “key slots” over

the support screws. Turn and

lock the support screws into

the “key slots”. Tighten the

support screws into place.

5. Install the proper bulb

type and wattage (not

included).

6. Push the shade upward

and turn as shown. Lock the

shade by tightening thumb

screw against the fixture on

the side.

L

N

(L)

Black (Live)

(N)

White

(Neutral)

Green (Ground)

Fixture

Key Slots

Bulb

Thumb

screw

Shade
