9625(Q)-K10, 9625(Q)-K30, 9625(Q)-K50,
9625(Q)-K51, 9625(Q)-K55 & 9625(Q)-K81
Kitchen Hot Water Dispenser
Installation Instructions
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
Operating Specifications:
Recommended Supply Pressure: 20 to 70 psi [1.4 to 4.8 bar]
†
† If water pressure exceeds 70 psi [4.8 bar], install a Pressure-Reducing Valve (PRV).

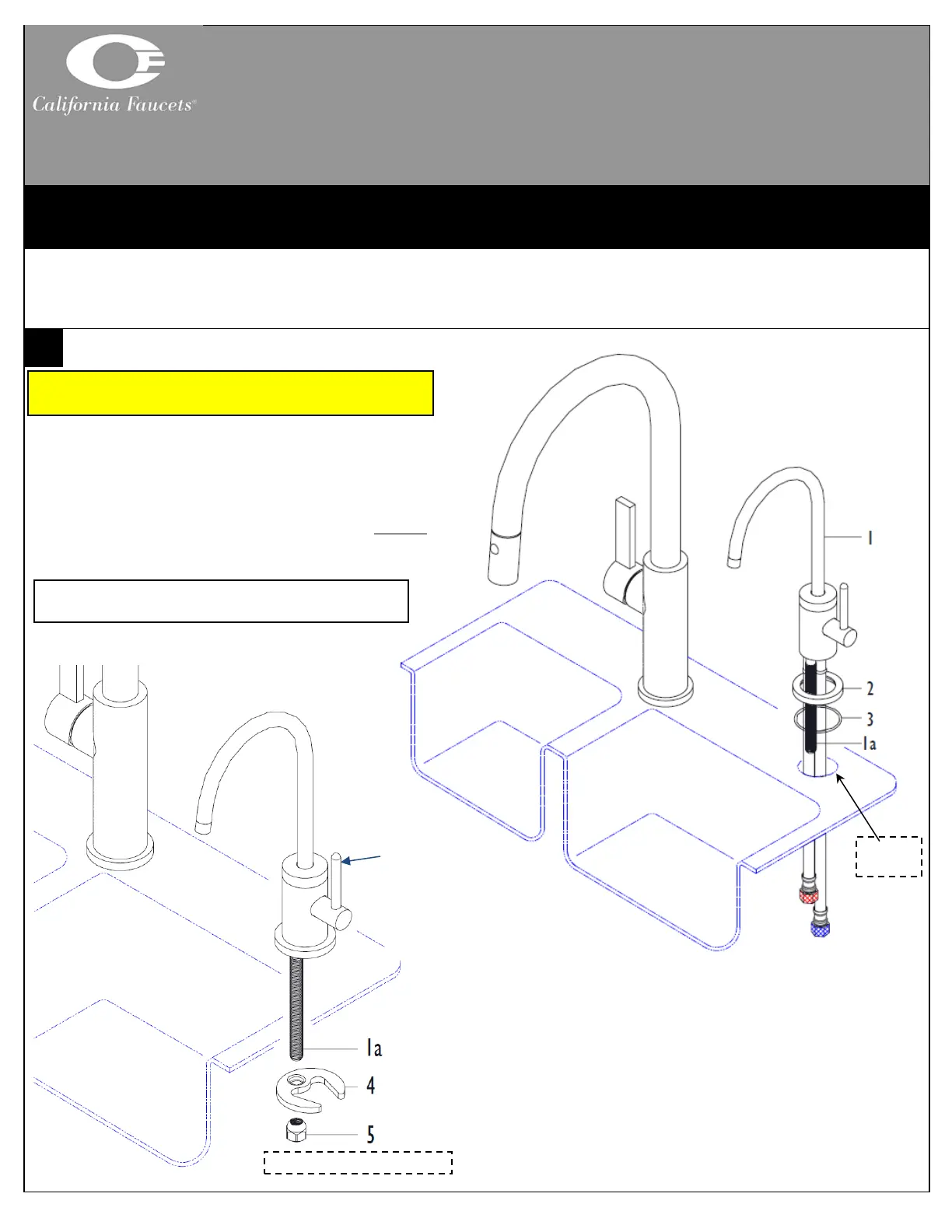

INSTALLING TO SINK/DECK
•Place BASE (2) with O-RING (3) onto BODY (1)and
slide SHANK (1a) through hole
•From underside slide MOUNT (4) and NUT (5) onto
SHANK (1a); loosely tighten NUT (5)
•From topside position BODY (1) with handle on RIGHT
side as shown and from underside securely tighten NUT
(5)
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
BY A LICENSED PROFESSIONAL
Ø1-3/8”
[35mm]
Hoses not shown for clarity
NOTE: When handle is on right side as shown below, handle rotates
forward for ON (e.g., water flow)
ON
Important:The recommended sink/deck through-hole shall be Ø1-3/8”
[35mm]. Maximum sink/deck thickness should no greater than 3-3/4” [95mm]
