9623-K10, 9623-K30, 9623-K50

9623-K51, 9623-K55, & 9623-K81

Kitchen Combo Hot & Cold Water Dispenser

Installation Instructions

1

IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.

Operating Specifications:

Recommended Supply Pressure: 20 to 70 psi

†

† If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (PRV).

INSTALLING TO SINK/DECK

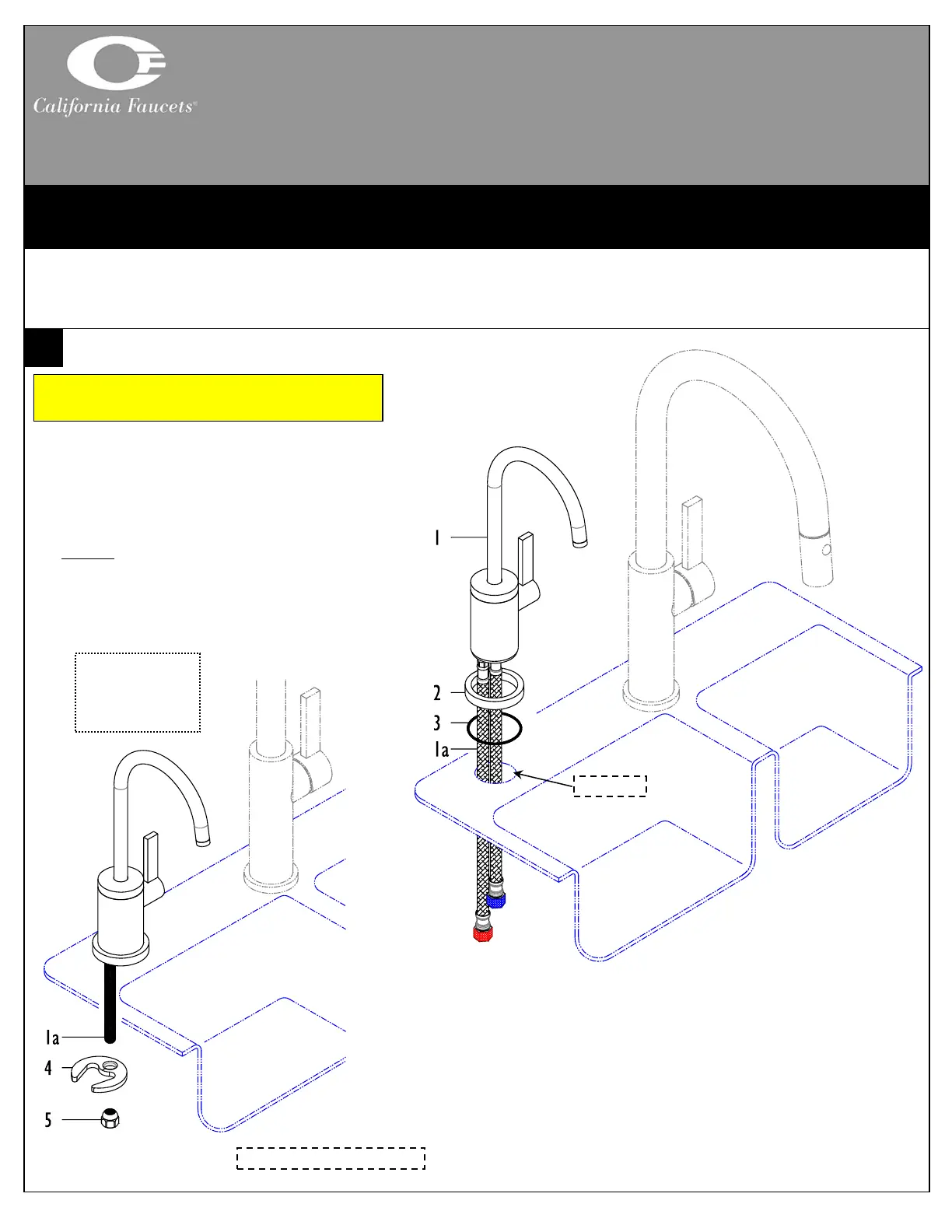

•Place BASE (2) with O-RING (3) onto BODY (1)

Slide SHANK (1a)

•From underside slide MOUNT (4) and NUT (5)

onto SHANK (1a); loosely tighten NUT (5)

•From topside position BODY (1) with handle on

RIGHTside as shown and from underside securely

tighten NUT (5)

Hoses not shown for clarity

CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED

BY A LICENSED PROFESSIONAL

Ø1-5/8”

IMPORTANT:The recommended sink/deck through-hole shall

be Ø1-5/8”. Maximum sink/deck thickness should no greater than

3-3/4”

Position handle on

right as shown for

COLD forward &

HOT backward
