FREQUENCY SHIFTER - MODEL 285t
Eurorack 200 series
BALANCED MODULATOR
FREQUENCY SHIFTER
The Frequency Shifter receives and
external audio at its “signal input”
then shifts it with either its internal
oscillator “ ” or with an eINT xternal
oscillator ref. at the “ ” input. There is
a to choose either or switch INT ref.
The INT oscillator frequency goes
from to0 1kc
The resulting shifts are present at the “ ” and “ ” outputs. dierence sums
There are two identical outputs for each of these.
FM receives an audio input
and can be applied to .INT
The amount of modulation is
determined by the
attenuator knob.
The CV input is sent to
the INT oscillator only
and can be varied with
its .attenuverter
FREQUENCY SHIFTER - MODEL 285t
Eurorack 200 series
Size: 18HP - Depth: 45mm - Power: +12V 50mA / -12V 44mA
The Balanced Modulator audio signal receives an at the
“signal” input. This can be thought of as the carrier while
the “ref.” input receives a dierent audio signal (the
modulator).
The “ ” double output ring
is a pure ring modulation
determined by the
incoming signal and ref.
The bottom MODULATION
section applies to the
“ ” double output.variable
The knob manually sweeps
from zero (the pure incoming
“signal”) through amplitude
modulation ending in pure
ring modulation. When this
knob is set fully CW to “ring”
it is the same signal as the
“ring” outputs.
The CV input and its
attenuverter modulates
the sweep from
“zero-amplitude-ring.”
FREQUENCY SHIFTER - MODEL 285t
Eurorack 200 series

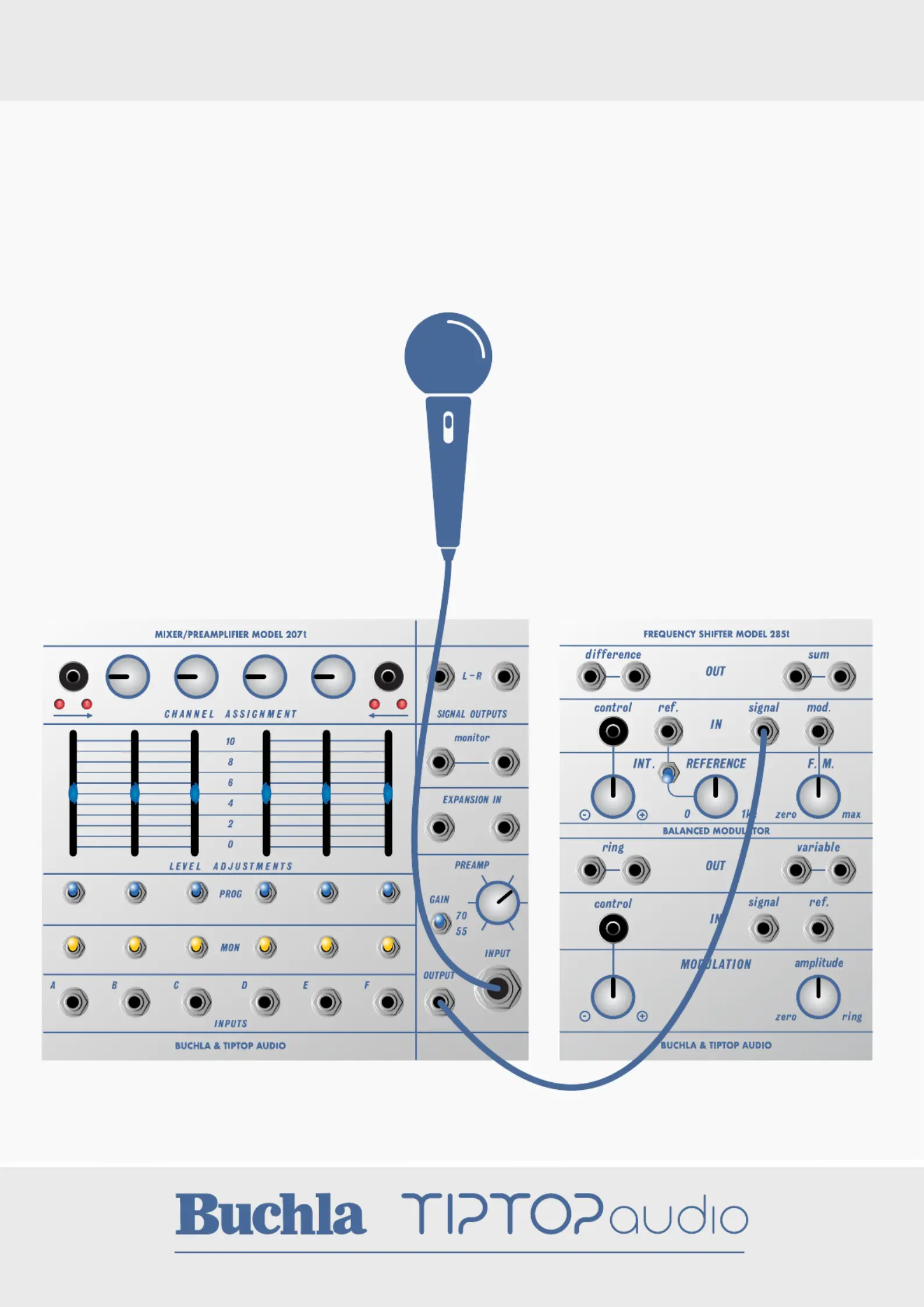

The 285t Frequency Shifter is an interesting module for processing audio samples or live voice input via a microphone
through the 207t Mixer/Preamplifier module. The "sum dierence " and " " outputs from the 285t can then be routed to the
292t Quad Lopass Gate, creating dynamic tone shaping. By further splitting the processed signals into the left and right
channels, this setup allows for a rich .stereophonic eect
