continued . . .

The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Rev. 1/08/18

S/D

Printed in U.S.A.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2018 by Bobrick Washroom Equipment, Inc.

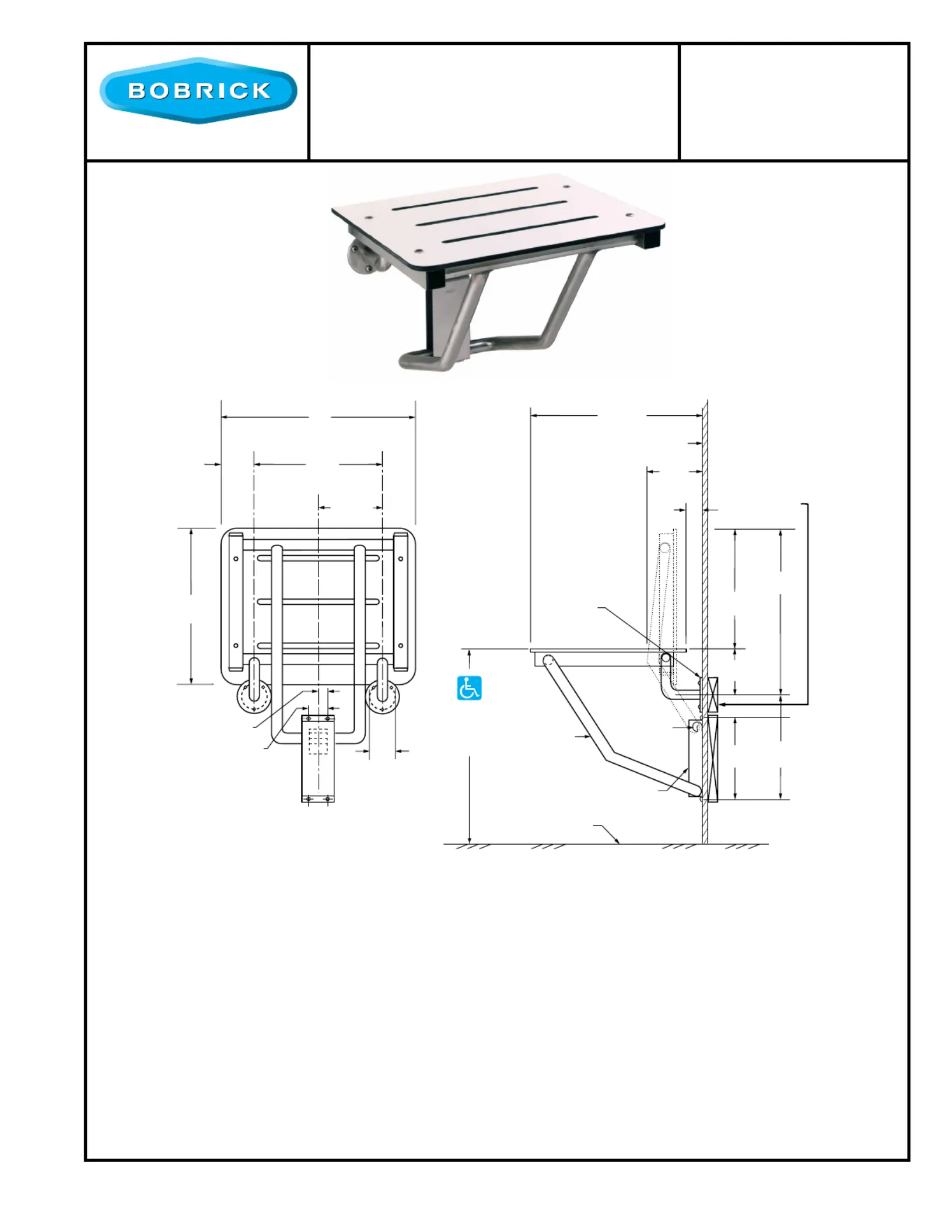

Technical Data

14-7/16''

365mm

5-15/16''

150mm

11-7/8''

300mm

18''

455mm

2-1/4''

55mm

Dia.

Bolt Circle

1-1/8''

30mm

2-1/4''

55mm

S

S

S

S

Base Plate

with Spring

Guide Bracket

Finish Face of Floor

Support

Bracket

15-3/8''

390mm

4-3/8''

110mm

1-3/8''

35mm

5-1/2''

140mm

Finish Face of Wall

15-13/16''

400mm

Mounting

Flange (2)

Concealed

Wall Backing

to Comply with

Local Building Codes

Not Furnished

by Bobrick

*Consult local building codes

S

S

S

S

9-3/8''

240mm

7-1/4''

185mm

3-1/16''

75mm

11''

280mm

Universal/Accessible Design

Recommended

Mounting Height

*17'' to 19''

430 to 485mm

MATERIALS:

Seat — One-piece, 5/16" (8mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, ivory-colored face

sheets, and black phenolic-resin core that are integrally bonded — cannot delaminate. Integral slots for water drainage. Secured

to frame with stainless steel carriage bolts and acorn nuts.

Frame — 18-8, Type-304, stainless steel with satin finish. 16-gauge (1.6mm), 1-1/4" (30mm) square tubing and 18 -gauge

(1.2mm), 1" (25mm) diameter seamless tubing.

Mounting Flanges (2) — 18-8, Type-304, 3/16" (5mm) thick stainless steel with satin finish. 3" (75mm) diameter with three

mounting screw holes.

Baseplate — 18-8, Type-304, heavy-gauge stainless steel.

Spring — 17-7, Type-301, 24-gauge (0.6mm) stainless steel. Spot-welded to baseplate.

Guide Bracket — 18-8, Type-304, 16-gauge (1.6mm) stainless steel with satin finish.

SOLID PHENOLIC

FOLDING

SHOWER/DRESSING

AREA SEAT

B-5191
