INSTRUCTIONS FOR INSTALLATION
BOBRICK ROLL PAPER TOWEL MODULE REPLACEMENT KIT 2860-53 OR 3961-52
In the U.S.A.: BOBRICK WASHROOM EQUIPMENT, INC.
200 Commerce Drive, Clifton Park, New York 12065-1350 • Tel: (518) 877-7444 • FAX: 518-877-5029
11611 Hart Street, North Hollywood, California 91605-5882 • Tel: (818) 982-9600 • FAX: 818-503-1102
In Canada: BOBRICK WASHROOM EQUIPMENT COMPANY
45 Rolark Drive, Scarborough, Ontario M1R 3B1 • Ontario East: (877) 423-6555, FAX: (877) 423-8555
• Manitoba West: (877) 423-6444, FAX: (877) 423-8444
© 2010 by Bobrick Washroom Equipment, Inc.
Form No.2860-69 Rev. 3/22/10 Printed in U.S.A.
1. Unlock & open the door of the “No Touch Roll Towel Dispenser” B-2860 or B-3961.
2. Locate and remove the two screws and lock washers located at the top back of the roll paper towel module
(See Fig. 1) and the two screws and lock washers located on the bottom, outside of the cabinet, using the allen
wrench provided.
3. Slide the module to the left side of cabinet, tilt the left side of the module slightly upward (approx. 1") and then
pull forward to remove from cabinet. (See Fig. 2)
4. Remove the metal speed nuts from the bottom sides of the old module and place them on the new
replacement module in the same position and orientation as they were on the old module. (See Figs. 3 & 4)
5. Install the new module in the reverse order as described above. Make sure that the speed nuts do not
dislocate as the module is placed into the cabinet. (See Figs. 3 & 4)
6. Insert the top screws and lock washers into the threaded holes through the module slots to align the module
and then insert the bottom screws and lock washers. Tighten all screws securely using the allen wrench
provided.
7. Fill the roll paper towel module per the instructions on the inside of the door.
8. Close and lock the door.

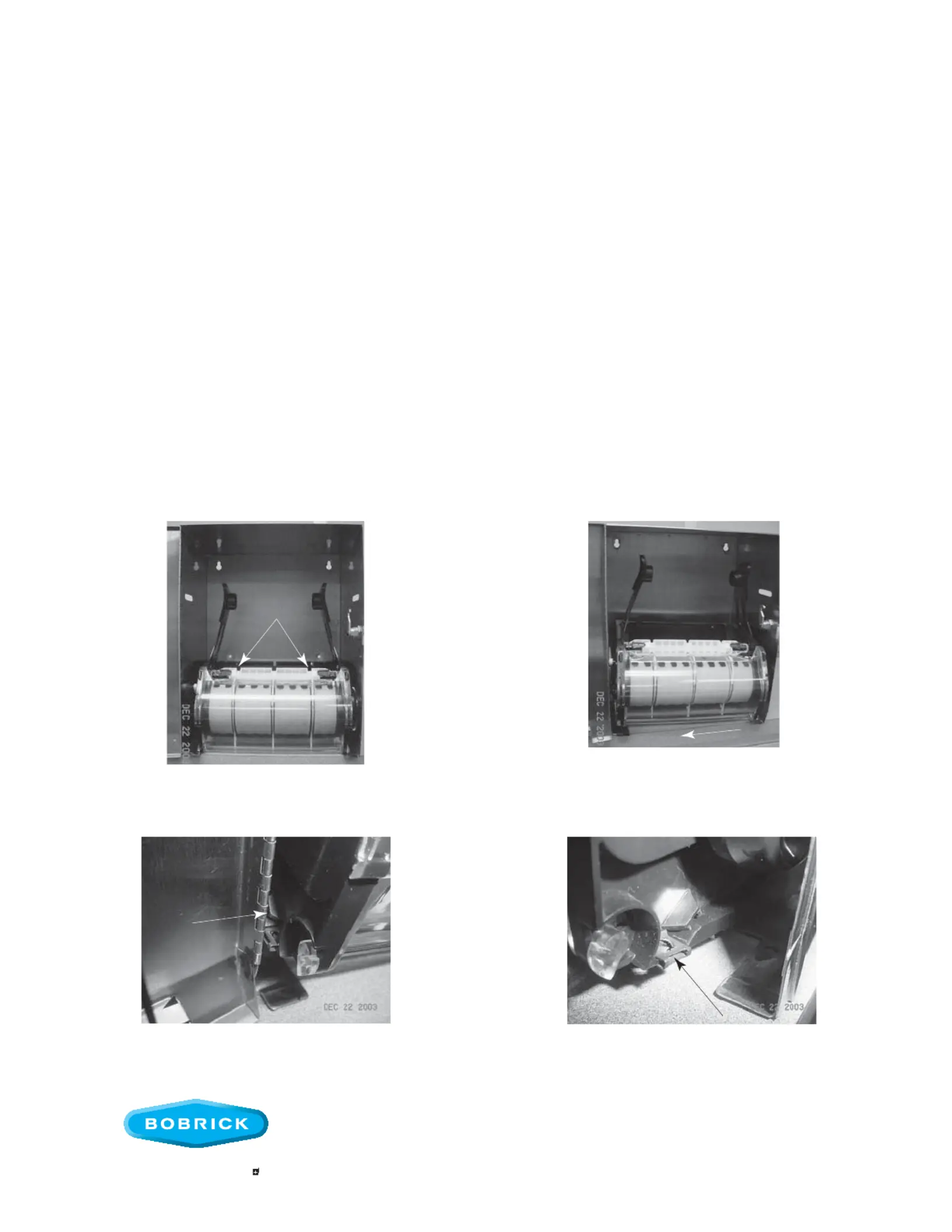

Fig. 1
Remove Screws
Fig. 3
Speed Nut (Left Side of Module)
Fig. 2
Fig. 4
Speed Nut (Right Side of Module)
Model B-2860 shown below:
QA031
