1

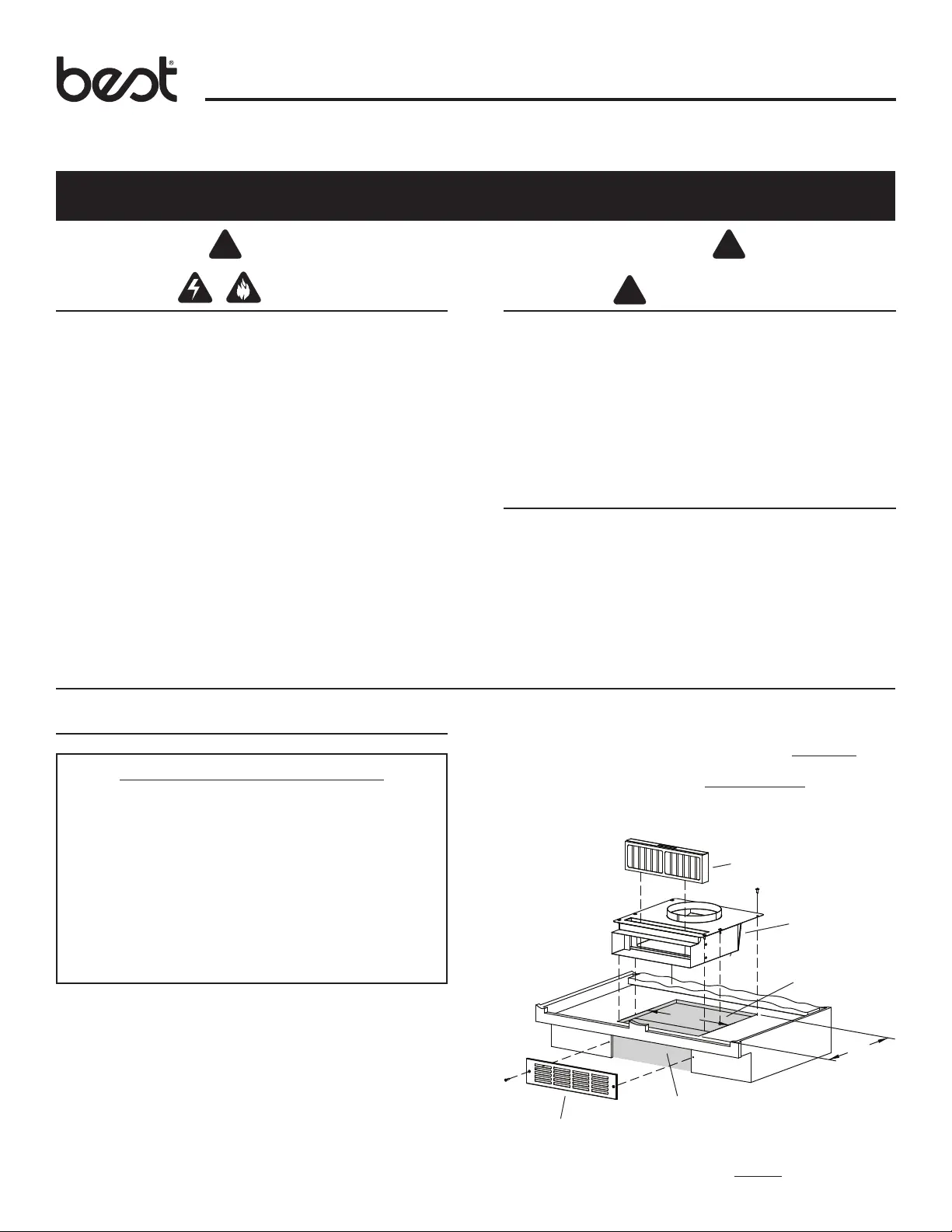

Model ANKDINSTALLATION INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1.Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the

manufacturer at the address or telephone number in the

warranty.

2. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

3. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel

burning equipment to prevent backdrafting. Follow the

heating equipment manufacturer’s guideline and safety

standards such as those published by the National Fire

Protection Association (NFPA), and the American Society

for Heating, Refrigeration and Air Conditioning Engineers

(ASHRAE), and the local code authorities.

4. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

5. To reduce the risk of fire, use only metal ductwork.

!

INTENDED FOR DOMESTIC COOKING ONLY

!

!

CAUTION

1.For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. Clean filters and grease-laden surfaces frequently.

3. Do not repair or replace any part of this appliance unless

specifically recommended in this manual. All other servicing

should be done by a qualified technician.

4. Please read specification label on product for further

information and requirements.

CONTENTS

1 - Recirculation Box

1 - Recirculation Filter

1 - Decorative Grille

1 - Parts Bag (containing):

6 - #10 x .625” screws

4 - #8 x .375” screws

2 - #8 x 1” screws

PLAN THE INSTALLATION

1.Determine where recirculation box will exhaust through

cabinet.

•Front (toe space), Back, Side (Left or Right).

•14½” x 15” opening in cabinet base is required for

recirculation box.

•3½” x 14¼” opening is required for exhaust.

2. Determine location of recirculation box.

•Plan to align blower outlet with recirculation box inlet.

DOWNDRAFT RECIRCULATION KIT

15”

14½”

DECORATIVE

GRILLE

FILTER

RECIRCULATION

BOX

3½” x 14¼”

EXHAUST OPENING

OPENING IN

CABINET BASE

EXHAUST THROUGH CABINET FRONT (TOE SPACE)

IMPORTANT - Installation Requirements

The blower can be installed in either of two ways:

(1) attached to the downdraft and stabilized with

mounting legs.

(2) installed remotely (not attached to the downdraft),

using mounting brackets and wood framing.

Purchase blower separately. (Includes mounting legs and

mounting brackets.)

A minimum 24-inch wide cabinet is recommended.

The 8-inch round blower outlet and 8-inch round

recirculation box inlet must align vertically. (See page 2.)

3. Determine what lengths of duct are required. (Purchase

duct separately.)

•A length of flexible or rigid 8” round duct is required to

connect blower exhaust to recirculation box inlet.

•A length of 3¼” x 14” duct may be required to connect

to exhaust of recirculation box and extend to decorative

grille location.
