Pagina 1/12

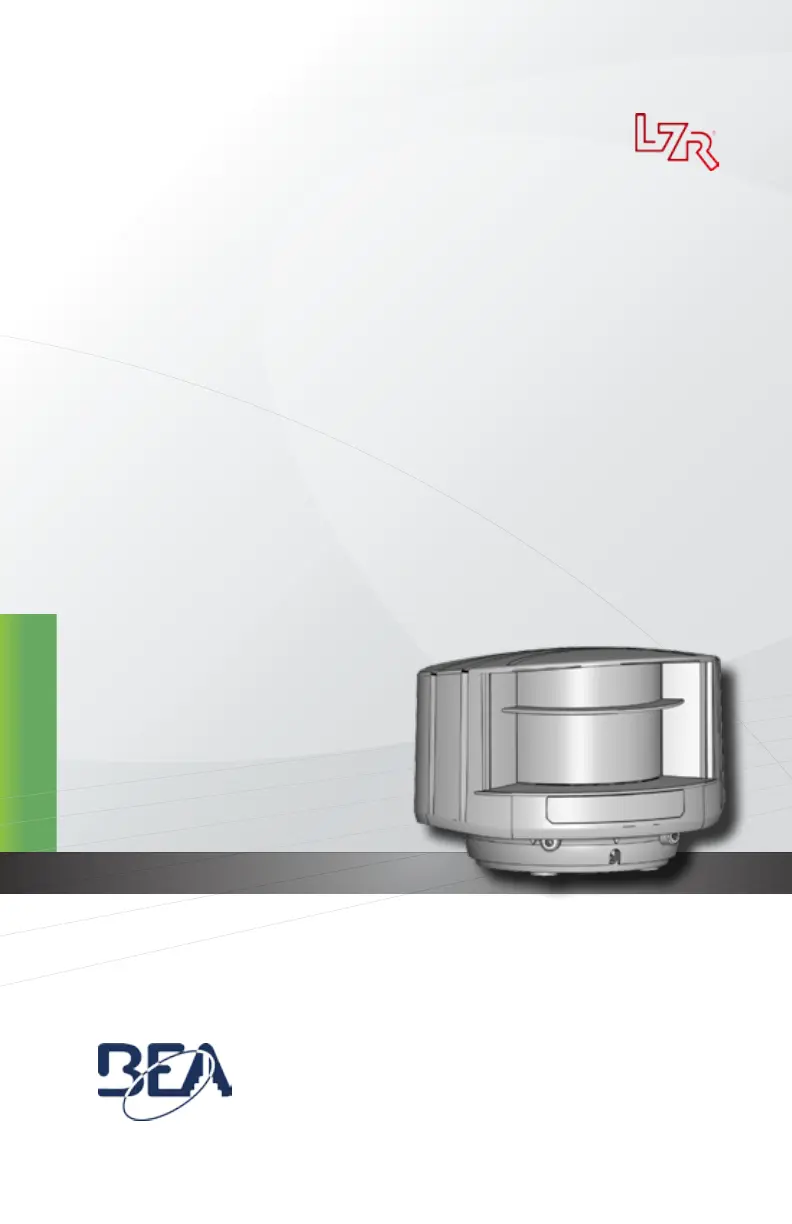

75.5897.02 LZR-H110 20170821 Page 1 of 12

Page 2 of 12 75.5897.02 LZR-H110 20170821

The device contains IR and visible laser diodes.

IR laser: wavelength 905nm; max. output pulse power 75W

(Class 1 according to IEC 60825-1)

Visible laser: wavelength 650nm; max. output CW power 3mW

(Class 3R according to IEC 60825-1)

The visible laser beams are inactive during normal functioning.

The installer can activate the visible lasers if needed.

CAUTION!

Use of controls, adjustments, or performance of procedures other than those speciﬁed herein

may result in hazardous radiation exposure.

INSTALLATION AND MAINTENANCE

Avoid extreme

vibrations.

Do not cover

the front screens.

Avoid moving objects

and light sources in

the detection ﬁeld.

Avoid condensation.

Avoid the presence

of smoke and fog in

the detection ﬁeld.

Avoid exposure to

sudden and extreme

temperature changes.

Keep the sensor

permanently powered

in environments where

the temperature can

descend below 0°C.

Wipe the front

screens regularly

with a clean and

damp cloth.

Do not use aggressive

products to clean

the front screens.

Avoid direct exposure

to high pressure

cleaning.

Do not look into the laser

emitter or the visible red

laser beams.

The warranty is void if

unauthorized repairs are

made or attempted by

unauthorized personnel.

Only trained and qualiﬁed

personnel are recommended

to install and set up the

sensor.

After installation, enter an

access code by remote

control.

This sensor is designed to be used as a movement and presence detector to initiate the opening and the closing

process of a gate or a barrier. Other use of the device, especially on industrial doors, is outside the permitted purpose

and cannot be guaranteed by the manufacturer and might infringe the following patent application EP 1 470 314 B1.

The manufacturer of the system is responsible for installing the sensor and the system in compliance with applicable

national and international regulations and standards on safety and if applicable, the machinery directive 2006/42/EC.

The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate adjustments of

the sensor.

SAFETY

Page 2 of 12 75.5897.02 LZR-H110 20170821

75.5897.02 LZR-H110 20170821 Page 3 of 12

1 2 3 4

DESCRIPTION

SYMBOLS

LED SIGNAL

DETECTION LEDs

no detection

ERROR LED POWER LED

detection

no error

error

no power

power

Caution!

Laser radiation

LED ﬂashes quickly

LED ﬂashes

LED is off

1. laser sweep emission

2. laser sweep reception

3. LED signal (4)

4. screw for position lock (2)

5. connector

6. protection cover

7. visible laser beam (3)

8. notch for tilt angle adjustment (2)

9. adjustable bracket

1. Detection LED: relay 1 – opening ﬁeld

2. Detection LED: relay 2 – safety ﬁeld

3. Error LED

4. Power LED

Remote control

sequence

Possible remote control

adjustments

Factory values

LED ﬂashes slowly

All 4 LEDs can be switched off and on again by remote control.

This can be useful in cases where the sensor should not draw any attention.

Important Tip Quick

installation

75.5897.02 LZR-H110 20170821 Page 3 of 12

Product specificaties

Merk:	BEA
Categorie:	Bewegingsdetector
Model:	LZR-H110
Kleur van het product:	Zwart
Breedte:	92.964 mm
Diepte:	127 mm
Hoogte:	69.85 mm
Materiaal behuizing:	Acrylonitril-styreen-acrylaat (ASA)
Internationale veiligheidscode (IP):	IP65
LED-indicatoren:	Ja
Connectiviteitstechnologie:	Bedraad
Montagewijze:	Muur
Certificering:	2006 / 95 / EC: LVD; 2002 / 95 / EC: RoHS; 2004 / 108 / EC: EMC; EN 60529:2001; IEC 60825-1:2007; EN 60950-1:2005;\nEN 61000-6-2:2005; EN 61000-6-3:2006
Type beeldsensor:	Infraroodsensor
Draaihoek:	10 °
Stroomverbruik (typisch):	5 W
Bedrijfstemperatuur (T-T):	-30 - 60 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 95 procent
Detectieafstand:	5 m
