Pagina 1/60
Made in China
INS-1608016B, 2400016-ATLANTIS-ENG 10-25-23
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands

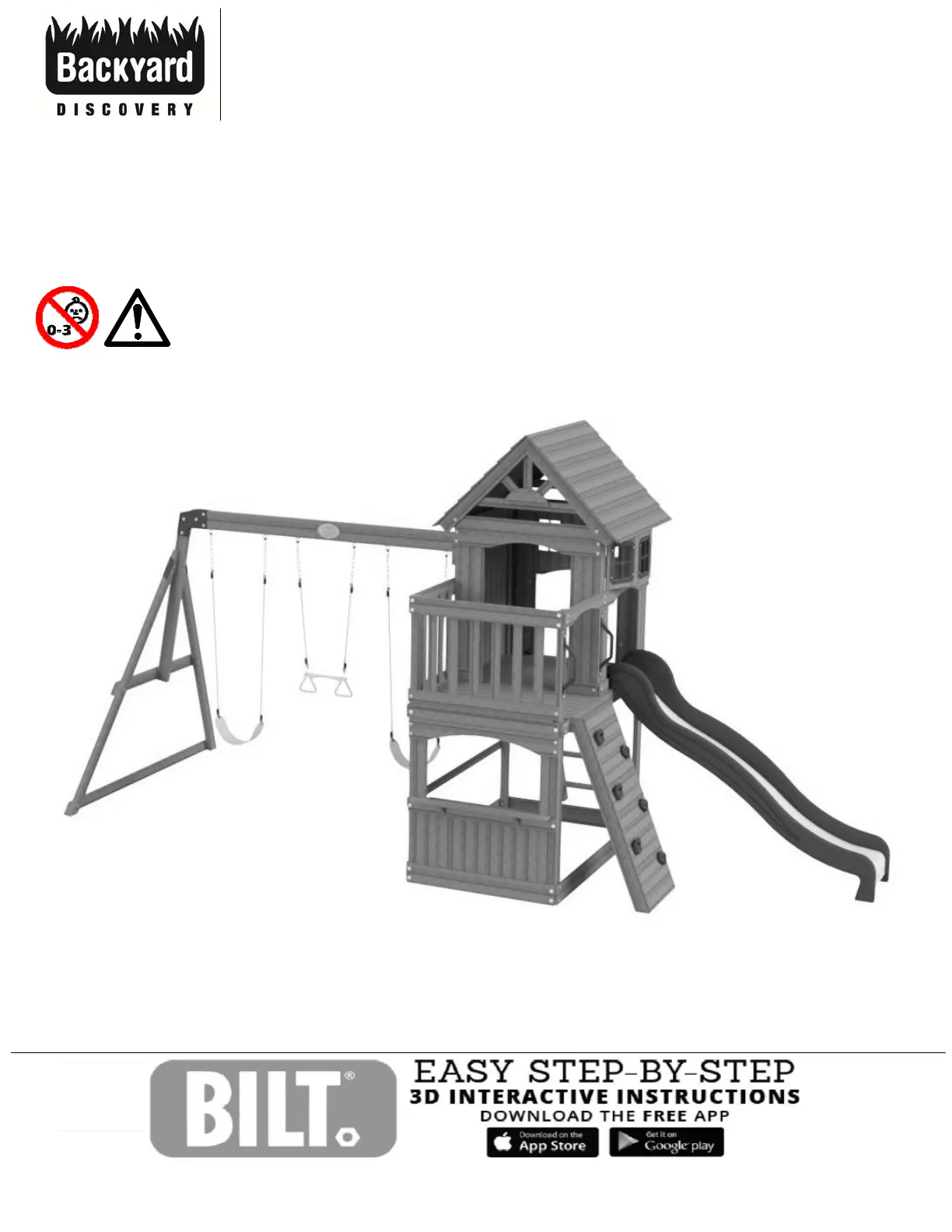

ATLANTIS
Swing Set
Model # 1608016B, 2400016
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
Safe Play Zone
SAFE PLAY HEIGHT: 15'-11 3/8 [4.9 m]
MAXIMUM FALL HEIGHT: 6'-5 3/8" [2.0 m]
General Information:
Your set has been designed and engineered for children only and for residential use only.
A maximum of 150 lbs. per child is recommended for play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.
A maximum of 9 children is recommended for this swing set.
Ground Dimension
7'-5 5/8" [2.3 m] x 18'-3 5/8" [5.6 m]
Safe Play Area
20'-7 1/2" [6.3 m] x 31'-5 5/8" [9.6 m] x 15'-11 3/8" [4.9 m]
SAFE PLAY AREA DIAGRAM
Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
• While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult
and improper assembly may result. Extra care must be taken to insure the fort is square.
• The safe play area refers to a zone extending 6'-7" (2 m) beyond the play product on all sides, including the space above the play
product.
18'-3 5/8"
[5.6 m]
7'-5 5/8"
[2.3 m]
6'-7"
[2.0 m]
6'-7"
[2.0 m]
20'-7 1/2"
[6.3 m]
31'-5 5/8"
[9.6 m]
9'-4 3/8"
[2.9 m]
6'-5 3/8"
[2.0 m]
Owners Manual - Basic Setup Dimensions & Assembly Notes
2
