LUBRICATION

The rod on which the product holder slides, which is underneath the slicer, should be

lubricated weekly with several drops of oil. Machine without oiler. Lift up the machine and

oil the rod directly. After the lubrication have the carriage sliding 4 or 5 times.

Use oil SHELL ONDINA 15 or ESSO MARCOL 82.

Occasionally, the slice thickness plateslide rod should be coated lightly with lubricant.

Turn the slice thickness control fully counterclockwise when lubricating this slide rod

and then turn it ful

ly clockwise when finished.

DO NOT lubricate the rod on which the last slice deviceslides.

It must be kept clean but not lubricated. The motor has sealed bearings and requires no

lubrication maintenance.

WEAR ADJUSTMENT

After several years of operation and many sharpenings of the blade it may become

necessary to have the slice thickness plate adjusted closer to the blade.

INSTALLATION

MAINTENANCE

SLICER

INSTALLATION

UNPACKING

Immediately after unpacking the slicer, check it for possib

le shipping damage. If this

machine is found to be damaged after unpacking, save the packing material and contact

the carrier within 15 days of delivery.

Prior to installation, test the elettrical service to assure that it agrees with the

specifications on the machine data plate1 .

ELECTRICAL

WARNING: THIS MACHINE IS PROVIDED WITH THIS PLUG MUST BE

CONNECTED TO PROPERLY GROUNDING PLUG, GROUNDED OUTLET. IF THE

RECEPTACLE IS NOT THE PROP

ER GROUNDING TYPE, CONTACT AN

ELECTRICIAN.

CLEANING

This machine must be thoroughly cleaned and sanitiz

ed afte

r installation and before

being put into service.

SAFETY

SAFETY DEVICES INCORPORATED IN THIS SLICER MUST BE IN THEIR CORRECT

OPERATING POSITIONS ANYTIME THE SLICER IS IN USE.

Theblade cover5 must be in position over the knife and secured by tightening

the hand knob.

TheIast slice device4 must be used when slicing it keep your ha

nds away from

the blade.

When the slicer is not runni

ng, the slicer thickness control2

must be set on zero

(fuIly clockwise) to prevent the blade edge from being exposed. Always UNPLUG the

power cord before cleaning or moving the slicer.

GB

AX-S9 Ultra

AX-S10 Ultra

AX-S12 Ultra

AX-SD12 Ultra

AX-S14 Ultra

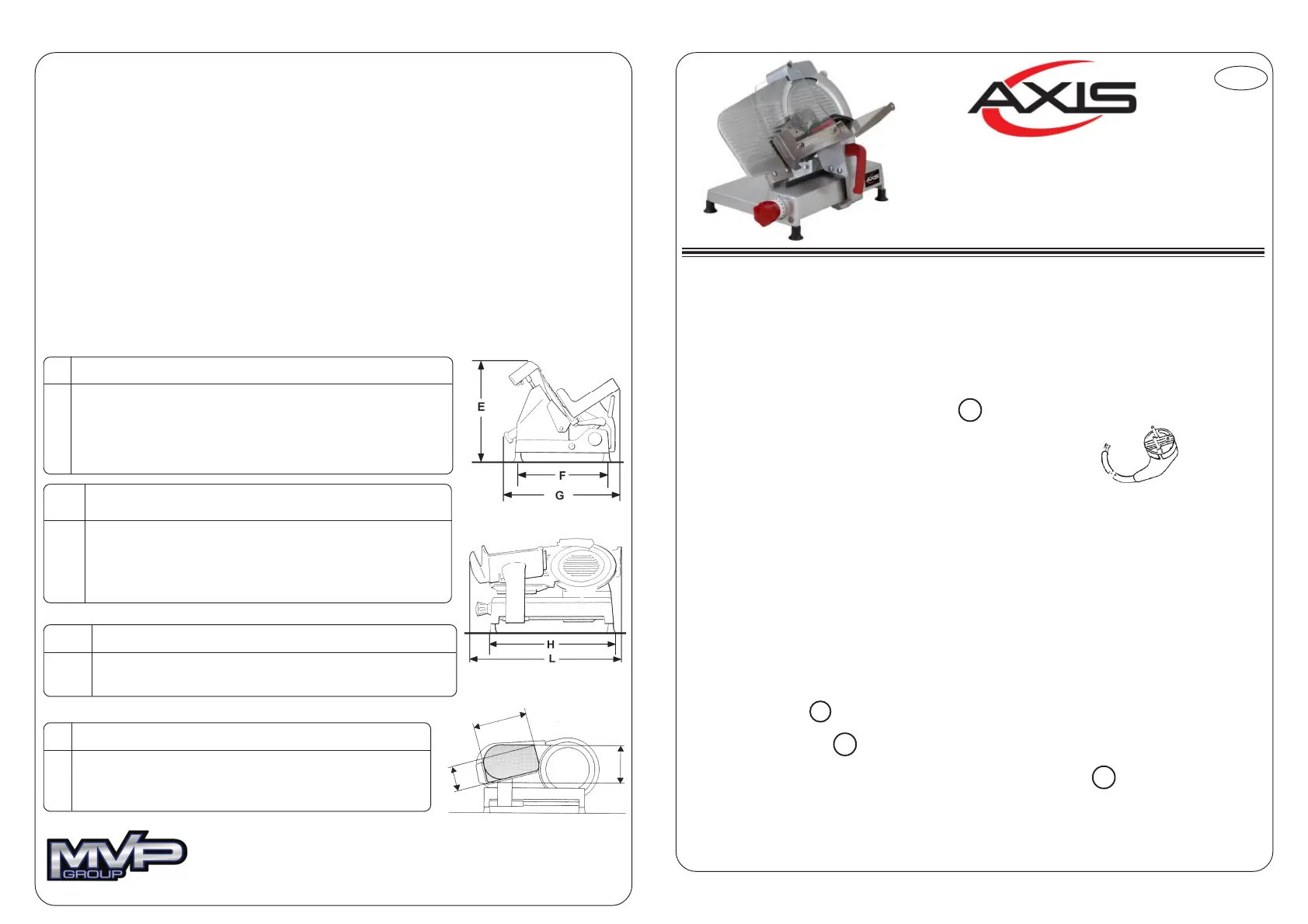

Filename: Man_AX_S_Serie_Ultra_GB.PMD 03/02/15

Dimension mm

Slicing capacity mm

B

A

C

Motor

Data

Volts

Hz

Ph

Amp

N/min

AX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

E330360470

F280280365

G410410500

H360360455

L590590630

A

AX-S14Ultra

AX-S14Ultra

AX-S14Ultra

X-S14Ultra

AX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

540

410

600

560

750

390

320

AX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

121324

151629

35

42

18

22

450

420

600

115

60

1

1,51,52,5

1750

115

60

1

1750

115

60

1

1750

115

60

1

1750

2,5

115

60

1

1750

2,5

A

B

C

Weight

Net kg

Brut kg

AX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

140140200

190190220

170170210

225

290

260

150

220

210
