LUBRICATION

The rod on which the product holder slides, which is underneath the slicer, should be

lubricated weekly with several drops of oil. Machine without oiler. Lift up the machine and

oil the rod directly. After the lubrication have the carriage sliding 4 or 5 times.

Use oil SHELL ONDINA 15 or ESSO MARCOL 82.

Occasionally, the slice thickness plate slide rod should be coated lightly with lubricant.

Turn the slice thickness control fully counterclockwise when lubricating this slide rod

and then turn it fully clockwise when finished.

DO NOT lubricate the rod on which the last slice device slides.

It must be kept clean but not lubricated. The motor has sealed bearings and requires no

lubrication maintenance.

WEAR ADJUSTMENT

After several years of operation and many sharpenings of the blade it may become

necessary to have the slice thickness plate adjusted closer to the blade.

INSTALLATION

MAINTENANCE

SLICER

INSTALLATION

UNPACKING

Immediately after unpacking the slicer, check it for possible shipping damage. If this

machine is found to be damaged after unpacking, save the packing material and contact

the carrier within 15 days of delivery.

Prior to installation, test the elettrical service to assure that it agrees with the

specifications on the machine data plate 1 .

ELECTRICAL

WARNING: THIS MACHINE IS PROVIDED WITH THIS PLUGMUST BE

CONNECTED TO PROPERLY GROUNDING PLUG, GROUNDED OUTLET. IF THE

RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN

ELECTRICIAN.

CLEANING

This machine must be thoroughly cleaned and sanitized after installation and before

being put into service.

SAFETY

SAFETY DEVICES INCORPORATED IN THIS SLICER MUST BE IN THEIR CORRECT

OPERATING POSITIONS ANYTIME THE SLICER IS IN USE.

The blade cover5 must be in position over the knife and secured by tightening

the hand knob.

The Iast slice device4 must be used when slicing it keep your hands away from

the blade.

When the slicer is not running, the slicer thickness control2 must be set on zero

(fuIly clockwise) to prevent the blade edge from being exposed. Always UNPLUG the

power cord before cleaning or moving the slicer.

GB

AX-S9 Ultra

AX-S10 Ultra

AX-S12 Ultra

AX-SD12 Ultra

Filename: Man_AX_S_Serie_Ultra_GB.PMD 03/02/15

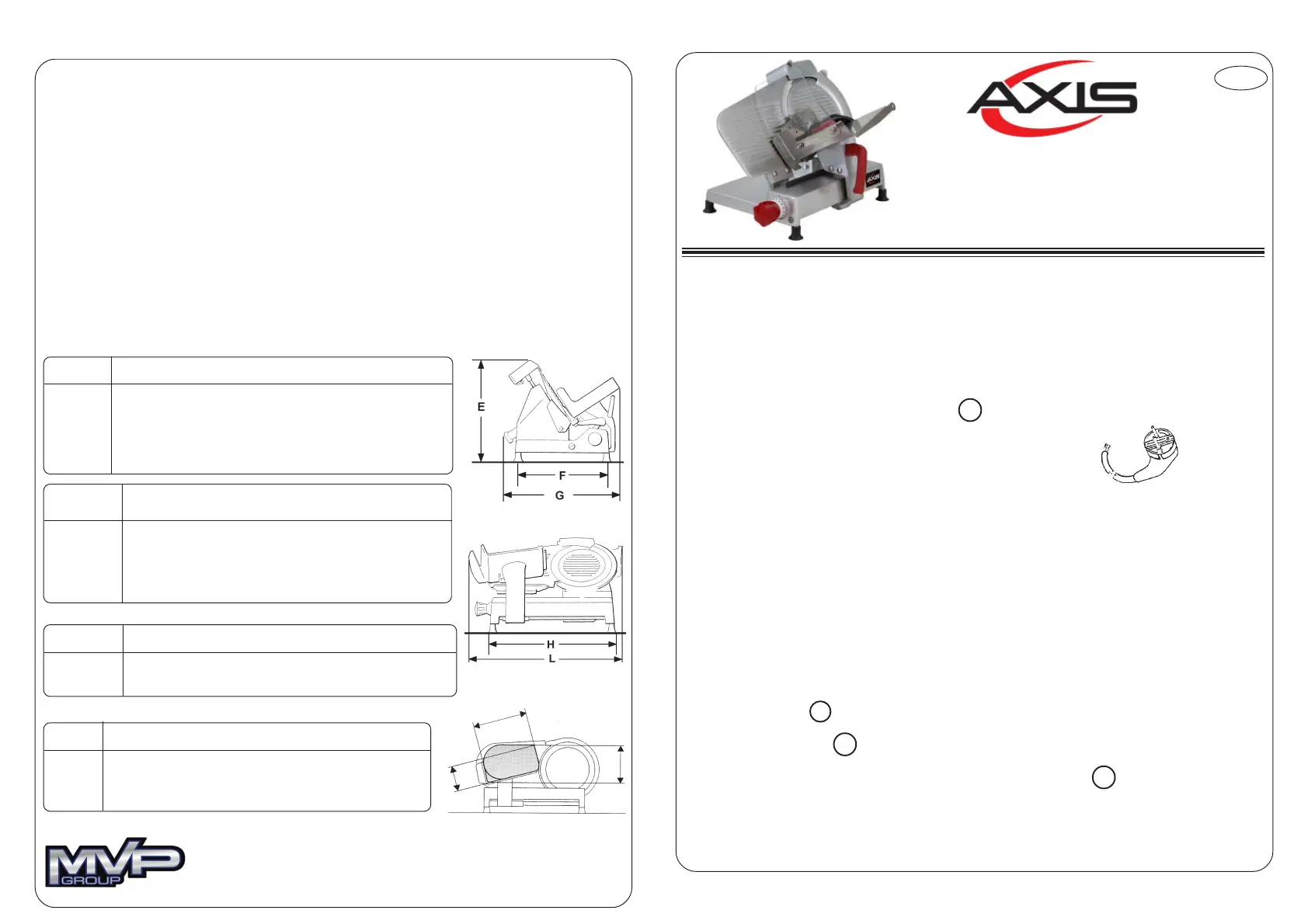

Dimension mm

Slicing capacity mm

B

A

C

MotorDataAX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

Volts 115

Hz 60

Ph 1

Amp1,5 1,52,52,5

N/min1750

AX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

E330360390470

F280280320365

G410410450500

H360360420455

L590590600630

AX-S9UltraAX-S10UltraAX-S12Ultra AX-SD12Ultra

A140140150200

B190190220270

C170170210235

WeightAX-S9UltraAX-S10UltraAX-S12UltraAX-SD12Ultra

Net kg1213 1824

Brut kg1516 2229

5659 Royalmount Avenue

Montreal, Qc, Canada H4P 2P9

Tel.: 514.737.9701 / Toll Free: 888.275.4538

Fax.: 514.342.3854 / Toll Free: 877.453.8832

3560 NW 56th Street

Fort Lauderdale, FL 33309

Tel.: 786.600.4687 / Toll Free:844.218.8477

Fax.: 786.661.4100
