Pagina 1/12

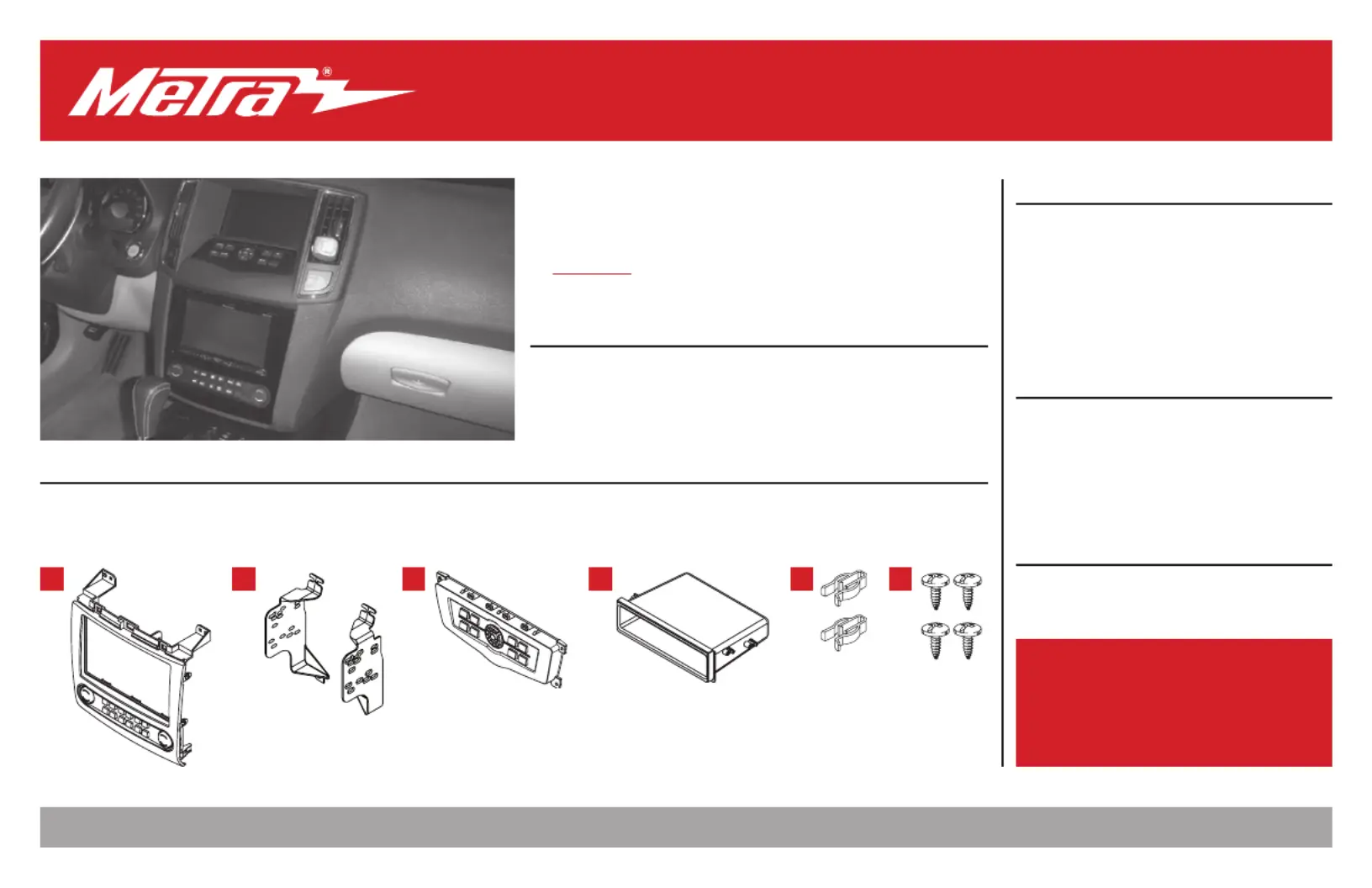

Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INST99-7633
I N S TA L L AT I O N I N S T R U C T I O N S
99-7633
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted high gloss black
KIT COMPONENTS
• A) Radio trim panel with climate controls • B) Radio brackets • C) Keypad • D) Pocket • E) Panel clips (2) • F) #8 x 3/8”Phillips screws (4)
• G) Axxess Interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 2 .......................................................
Kit Assembly
-ISO DIN radio provision with pocket 3 ..................
-ISO DDIN radio provision 3 .....................................
Axxess Interface Installation 4-11 ..........................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and
harness
included.
Antenna Adapter: 40-NI12 (sold separately)
Steering wheel control interface:
(sold separately)
A B C D
E F
Nissan Maxima (with Technology Package) 2009-2014
Nissan Maxima
(with NAV) 2009
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com
2

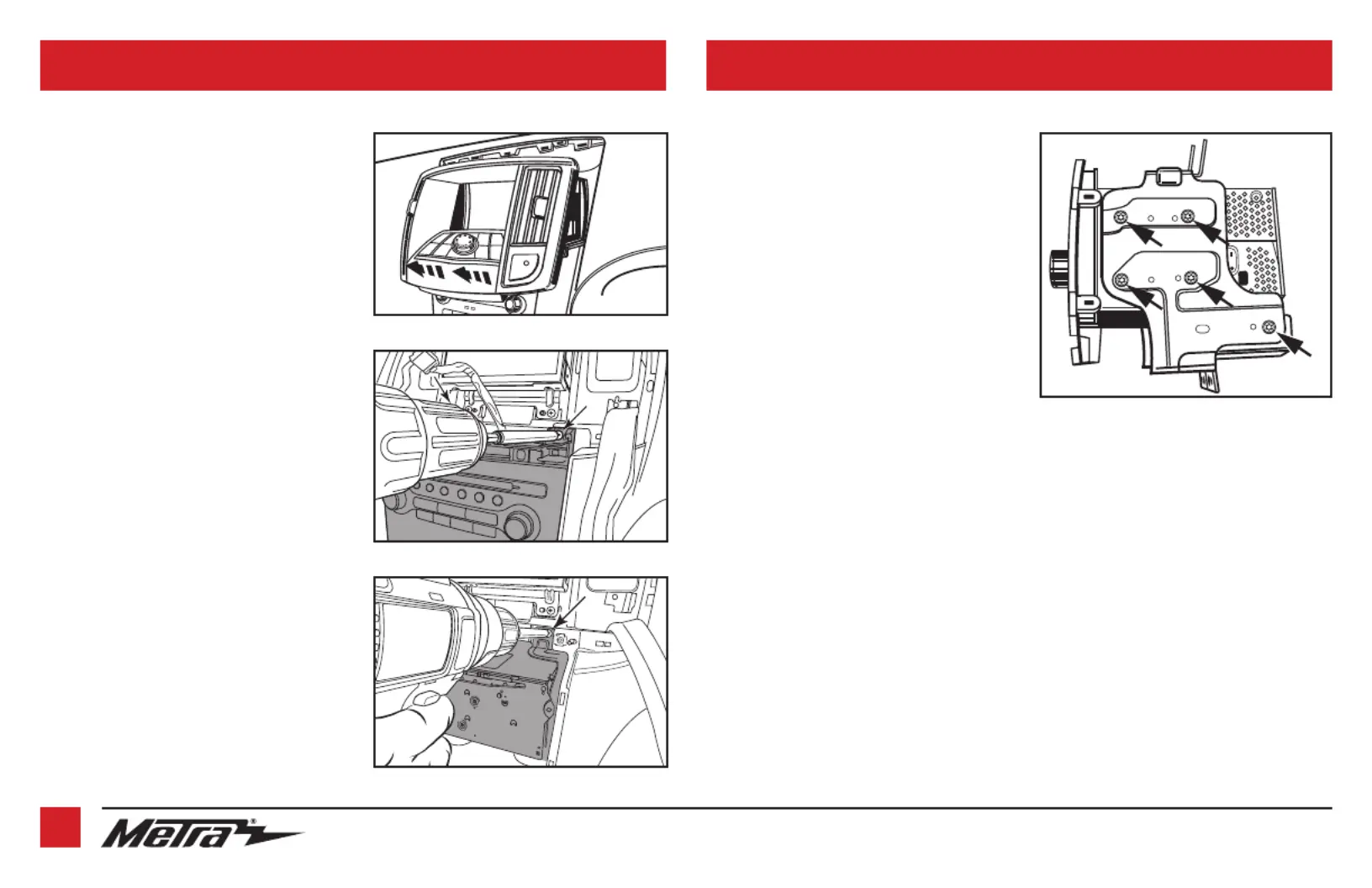

DASH DISASSEMBLY KIT PREPARATION
1. Unclip and remove the entire panel
above the radio including the a/c vents
and keypad, then unplug and remove
the panel. (Figure A)
2. Remove (2) Phillips screws securing the
radio/climate control panel, then unclip
and remove the panel. (Figure B)
3. Remove (4) Phillips screws securing the
radio chassis, then unplug and remove
the chassis. (Figure C)
Continue to Kit Preparation
(Figure A)
(Figure B)
(Figure C)
Climate control module preparation
1. Remove the climate control module
from radio chassis assembly. (Figure A)
a. Slightly loosen (4) Torx screws
securing each side bracket to the
radio chassis.
b. Remove (1) Torx screw from each
side of the climate control module,
then remove the module.
2. Secure the climate control module to
the using the factory radio brackets
hardware.
Keypad preparation
1. Remove (4) Philips screws securing the
factory keypad assembly to the a/c vent
and keypad panel, then remove the
keypad.
2. keypad Attach the provided with the kit
to the factory display panel using the
factory hardware.
3. panel clips Attach (2) provided with
the kit onto the radio trim panel with
climate controls.
Continue to Kit Assembly
(Figure A)
REV. 7/30/2024 INST99-7633
3

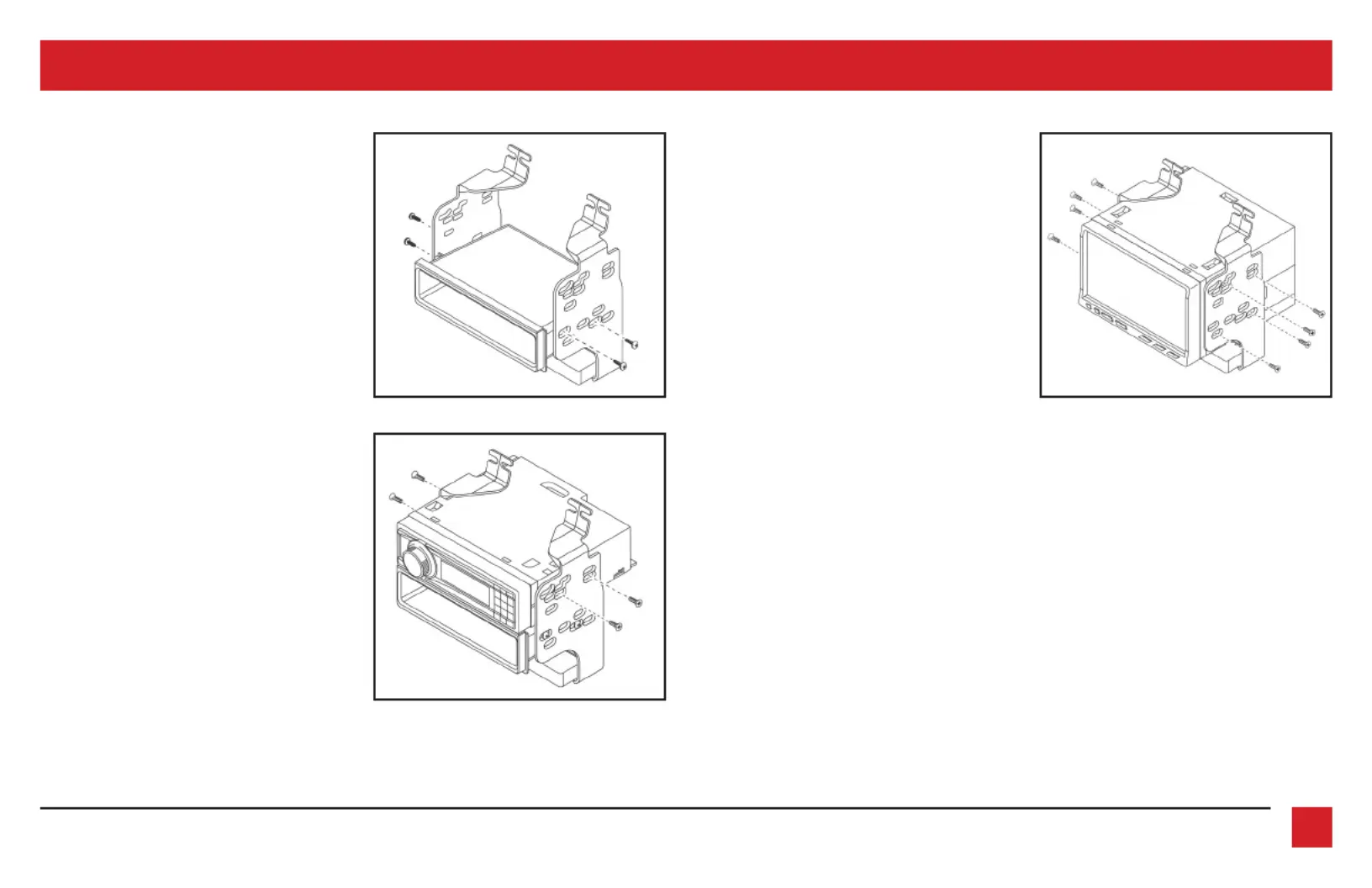

KIT ASSEMBLY
ISO DIN radio provision with pocket
1. pocket Attach the to the radio bracket/
climate control assembly using the
(4) #8 x 3/8” Phillips screws provided.
(Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the assembly and
then secure with the screws supplied
with the radio. (Figure B)
Continue to Axxess Interface
Installation
(Figure B)
(Figure A) (Figure A)
ISO DDIN radio provision
1. Slide the radio into the radio bracket/
climate control assembly and then
secure with the screws supplied with
the radio. (Figure A )
Continue to Axxess Interface
Installation
