Pagina 1/24
APPLICATIONS
METRA. The World’s best kits.
™
metraonline.com1-800-221-0932
© COPYRIGHT 2014 METRA ELECTRONICS CORPORATION
REV. 3/28/2014 INST99-7523S
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Table of Contents

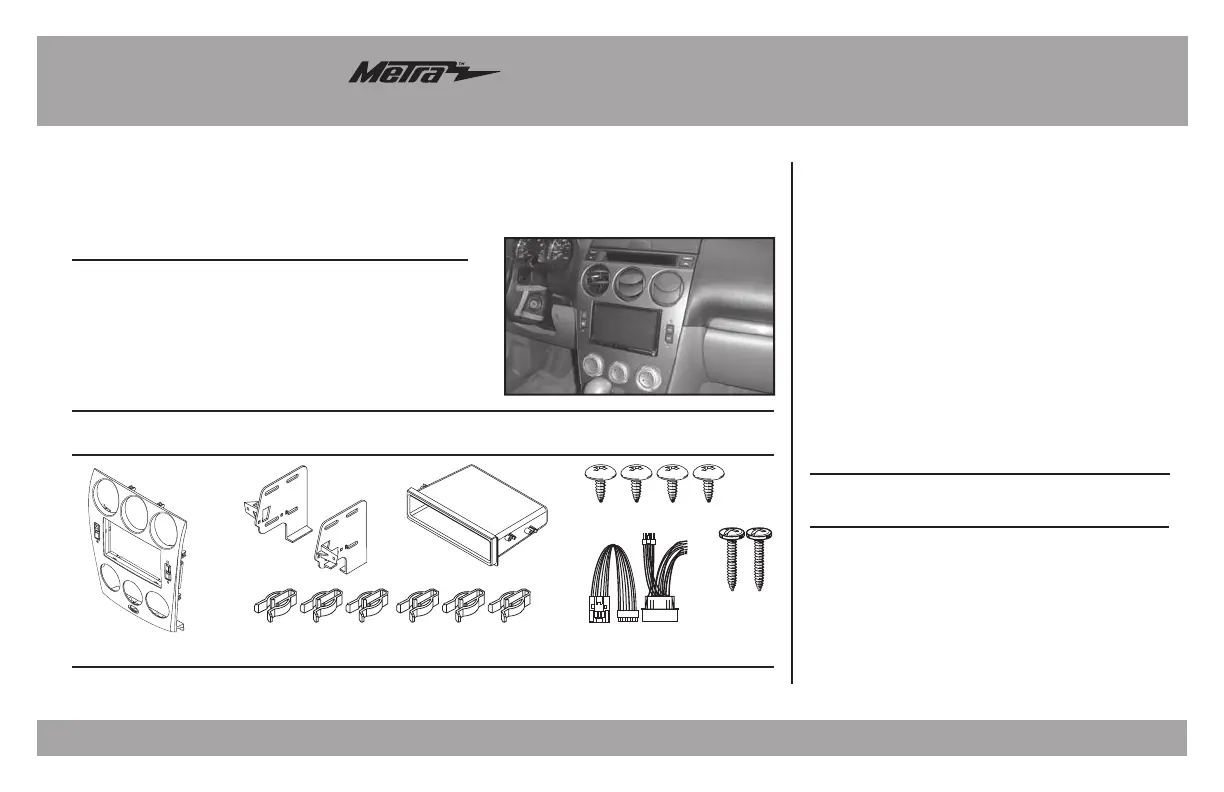

INSTALLATION INSTRUCTIONS FOR PART 99-7523S
• A) Radio/Climate control housing • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
• E) (6) Plastic panel clips • F) Harness • G) (2) #8 x 1” Phillips screws
KIT COMPONENTS
• Double DIN radio provision
• ISO DIN radio provision with pocket
• Painted silver
• Pre-wired ASWC-1 harness included (ASWC-1
sold separately)
KIT FEATURES
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included with kit
Antenna Adapter: • Not required
• Small flat blade screwdriver • Phillips screwdriver
• Socket wrench
TOOLS REQUIRED
Mazda 6 2003-2005
99-7523S
A
B
E
C D
F G
Dash Disassembly
– Mazda 6 2003-2005 .........................................2-4
Kit Assembly
– Electronic climate control ..................................... 5
– Manual climate control ......................................... 6
– Felt tape application ............................................. 7
– ISO DIN radio provision with pocket ...................... 8
– Double DIN radio provision ................................... 8
– Display customization .......................................... 9
– Final wiring and assembly .............................10-11
99-7523S

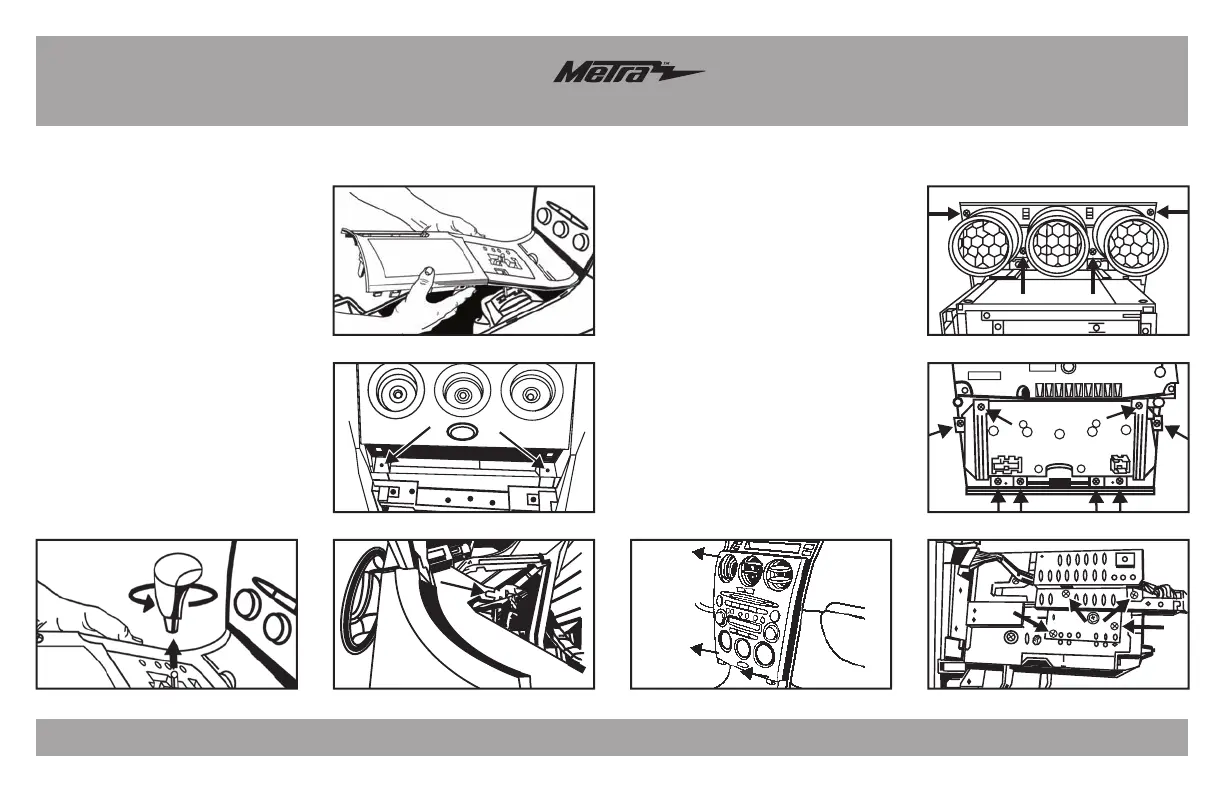

Electronic Climate Control
1. Unscrew the shift knob counter
clockwise to remove. (Figure A)
2. Unclip and remove the cup holder/
parking brake cover and shifter
cover as one radio. (Figure B)
3. Remove (2) Phillips screws from
the bottom of the radio/climate
control panel. (Figure C)
4. Open glove box, squeeze sides
together and let open fully then
remove (1) 10 mm bolt from the
side of the radio bracket.
(Figure D)
Dash Disassembly
Rear of Electronic Climate Control
Rear of Radio/Climate Control Panel
INSIDE
GLOVE BOX
(Figure B) (Figure F)
(Figure E)
(Figure C) (Figure G)
(Figure D) (Figure H)(Figure A)
2
5. Unsnap and remove radio/climate
control panel including climate
control vents at the top. (Figure D)
6. Remove (4) Phillips screws
securing vents to radio/climate
control panel to remove. (Figure E)
7. Remove (8) Phillips screws
securing the electronic climate
control to the radio/climate control
panel to remove. (Figure F)
8. Remove (4) Phillips screws
securing the radio display harness
bracket to the radio chassis then
unclip and remove the radio
display harness. (Figure H)
Continue to kit assembly
