Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 5/10/22 INST99-7620B
INSTALLATION INSTRUCTIONS
99-7620B

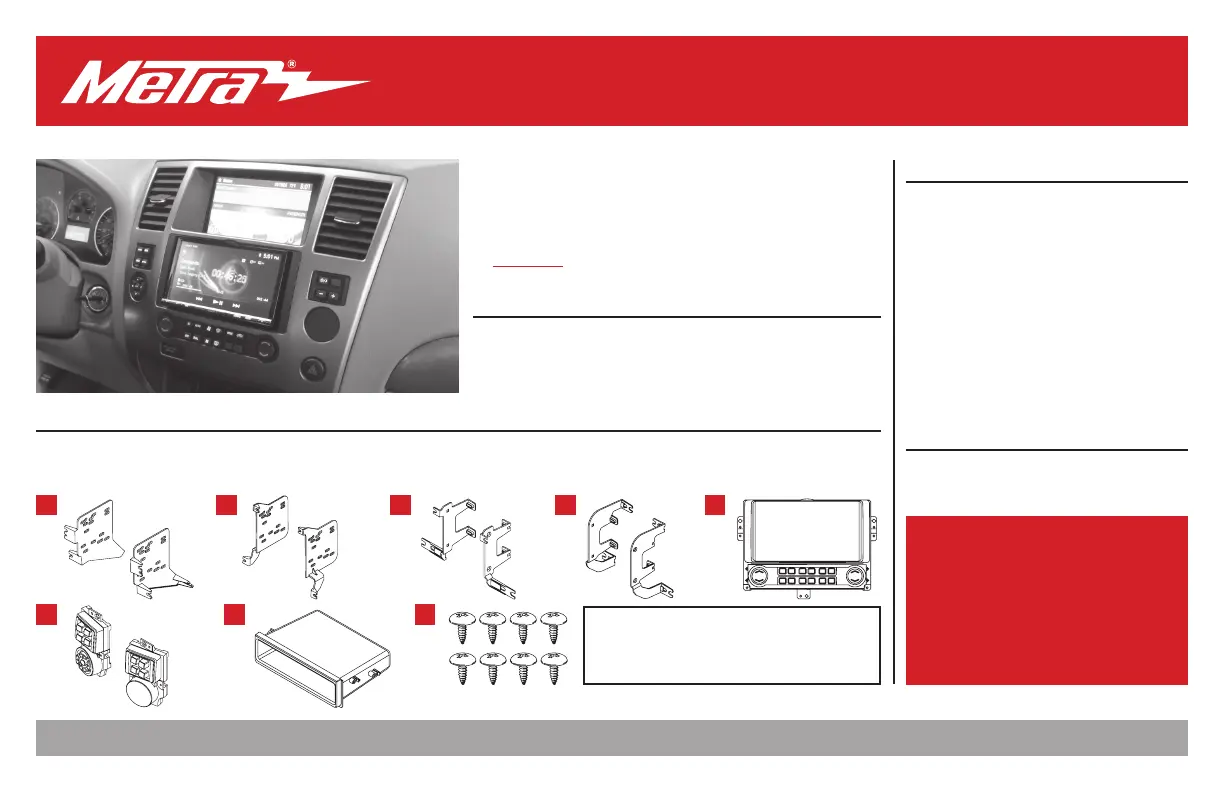

KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted scratch-resistant matte black
• Axxess interface to keep the factory screen active
• Buttons and circuitry to control the factory climate system
KIT COMPONENTS
• A) Radio brackets for Armada • B) Radio brackets for Pathfinder • C) Screen brackets for Armada • D) Screen brackets for Pathfinder
• E) HVAC control panel • F) Outboard control panel (2) • G) Pocket • H) #8 x 3/8" Phillips screws (8) • Axxess interface and harness (not shown)
TOOLS REQUIRED • Panel removal tool
• Phillips screwdriver • Torx T-20 screwdriver
• 8mm socket wrench • Needle-nose pliers
TABLE OF CONTENTS
Dash Disassembly
– Armada (without NAV) 2013-2015 /
Armada 2008-2012...........................................2
– Pathfinder (LE, SE, SV, Silver Edition)
2008-2012 .........................................................3
Kit Preparation .......................................................4
Kit Assembly
– ISO DIN radio provision with pocket .................5
– ISO DDIN radio provision ....................................5
Axxess interface installation ............................6-14
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Axxess interface and harness included
Antenna Adapter: 40-NI12
A
F G H
B C D E
Nissan Armada (without NAV) 2013-2015,
Nissan Armada 2008-2012,
Nissan Pathfinder
(LE, SE, SV, Silver Edition)
2008-2012
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
386-257-1187
|
MetraOnline.com
2
DASH DISASSEMBLY

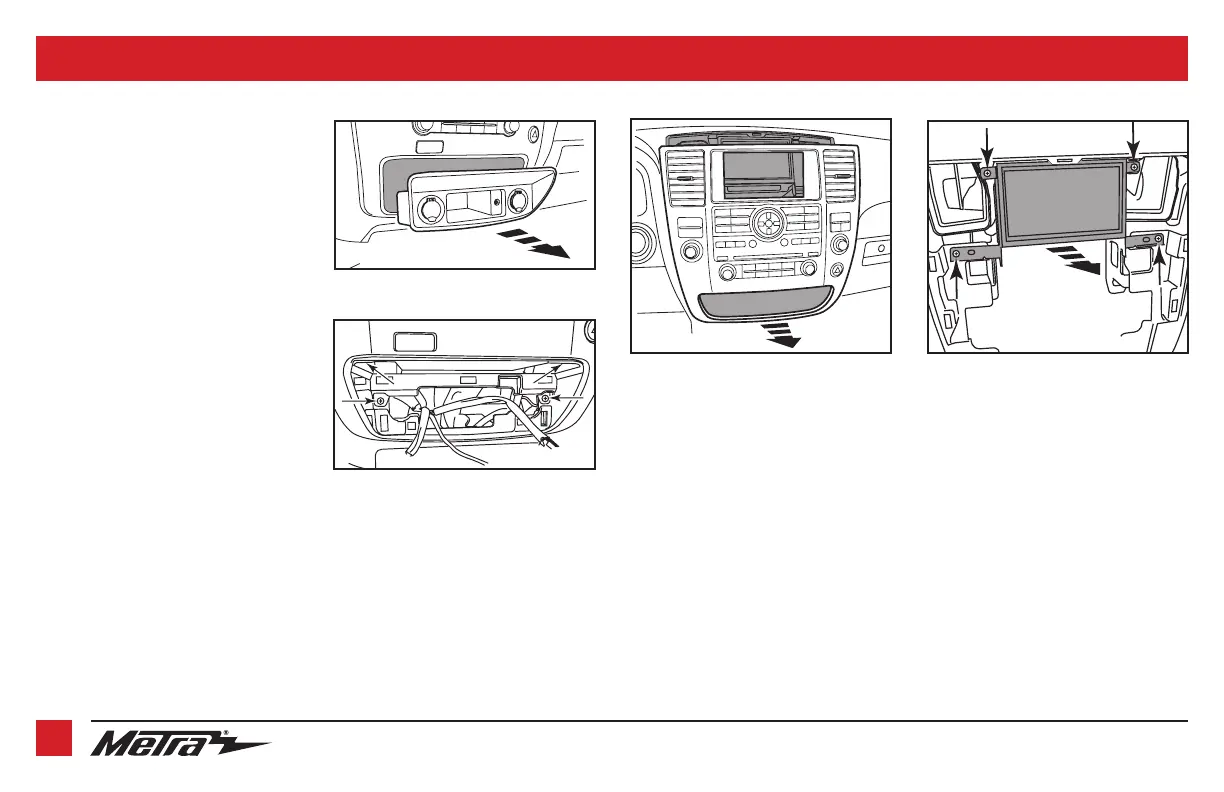

Nissan Armada (w/o NAV) 2013-2015
Nissan Armada 2008-2012
1. Unsnap and remove the power
outlet/pocket assembly from the lower
center dash. (Figure A)
2. Remove (4) 8mm screws now exposed
in the cavity. (Figure B)
3. Using the panel removal tool, carefully
unclip and remove the radio/climate
control panel, including the A/C vents.
(Figure C)
4. Remove (4) 8mm screws securing
the display screen/climate module
assembly, disconnect the wiring, and
then remove the assembly. (Figure D)
Continue to Kit Preparation
(Figure A)
(Figure B)
(Figure C) (Figure D)
