CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 5/27/20 INST99-7384B
INSTALLATION INSTRUCTIONS
99-7384B

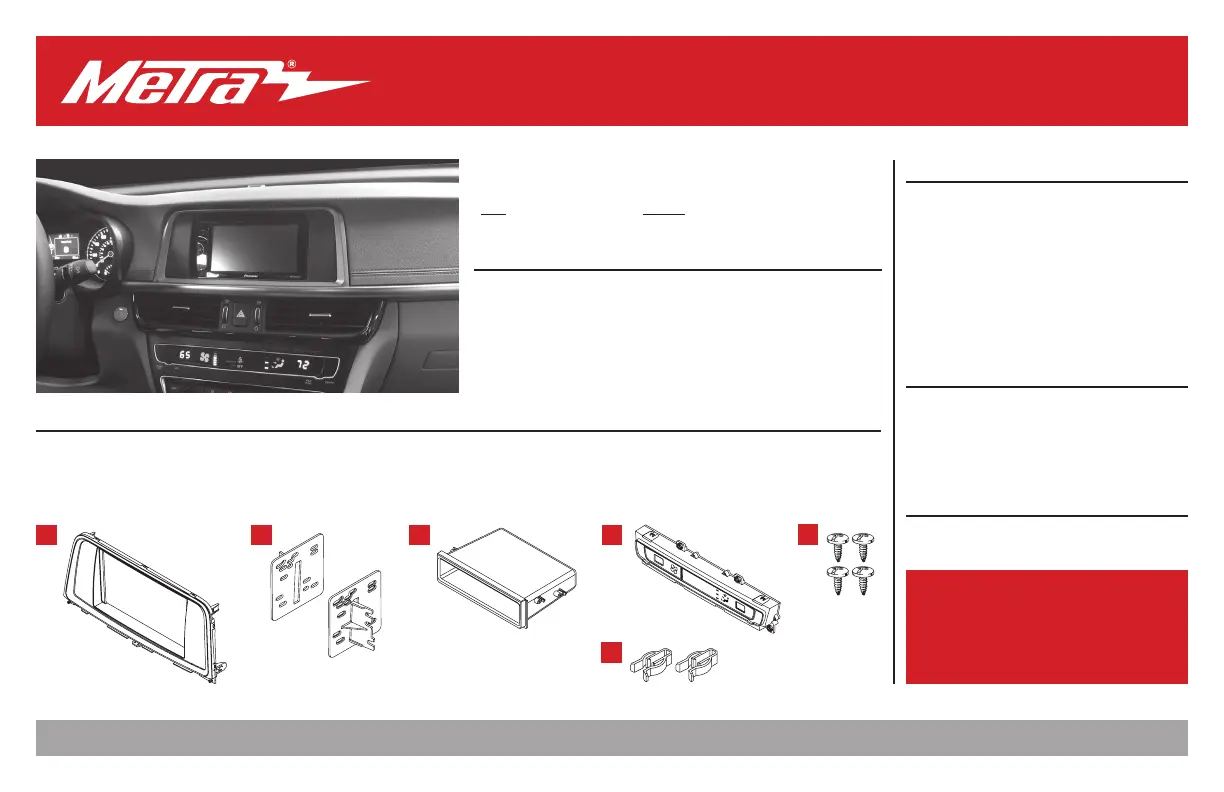

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Climate display • E) (4) #8 x 3/8” Phillips screws • F) (2) Panel clips
• G) Wiring harness (not shown) • H) 3.5mm connector with stripped leads (not shown) • I) Antenna adapter (not shown) • J) ASWC-1 (not shown)
• K) AX-CAM6V (not shown)
A B C
F
D
E
Kia Optima 2017-2020*
Visit MetraOnline.com for up-to-date vehicle specific applications.
* With auto climate controls and Without factory amplifier
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
–ISO DIN radio provision with pocket ..................5
–ISO DDIN radio provision .....................................5
Wiring Instructions ...........................................6-13
Final Assembly .......................................................9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
12v to 6v camera stepdown: Included with kit
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes electronics with laser etched graphics to display fan speed,
mode, temp, and air bag indicator.
• Retains factory steering wheel controls and back up camera.
• Includes wiring and antenna adapter.
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY

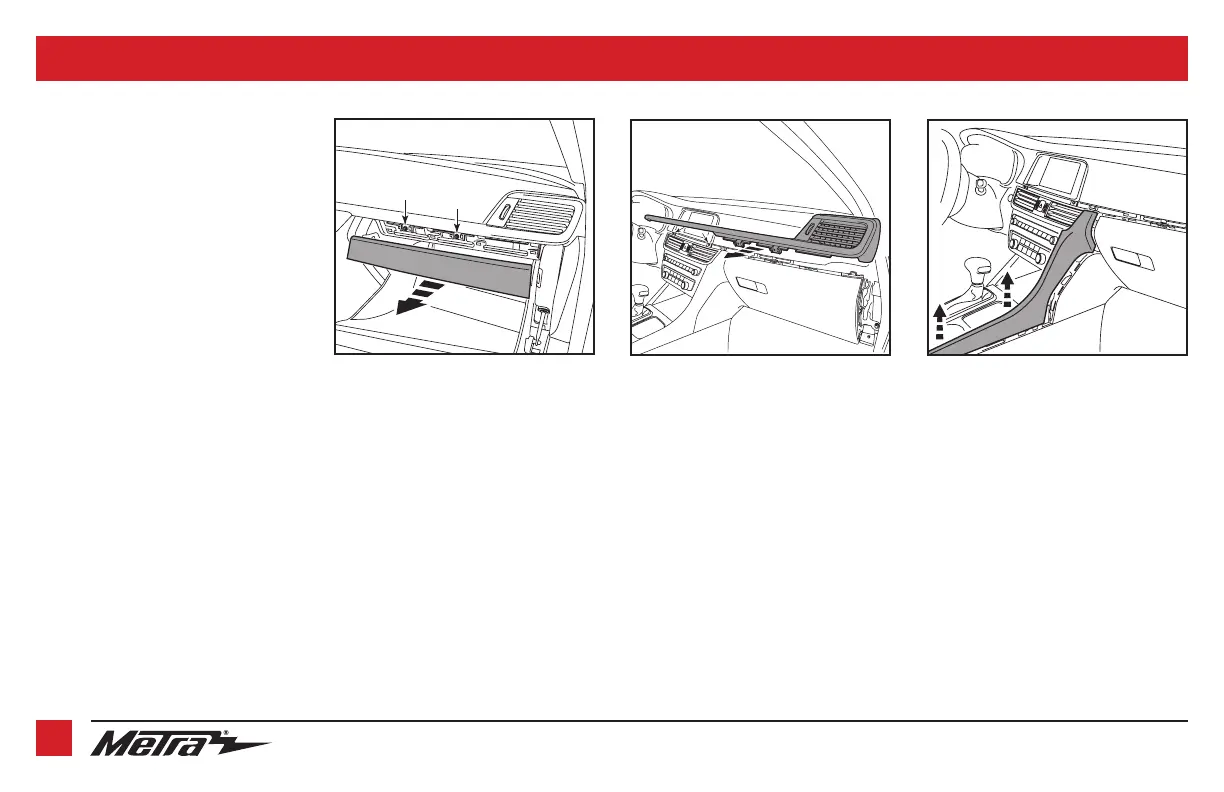

1. Open the glove box and remove the
trim at the top of the opening, and then
remove the (2) Phillips screws exposed.
(Figure A)
2. Unclip the trim that runs along the
dash from the right side A/C vent to the
steering column, and then remove the
(2) Phillips screws securing the A/C vent/
hazard panel. (Figure B)
3. Unclip and remove the right side trim
panel from the center console, and then
remove the (1) Phillips screw securing
the A/C vent/hazard panel. (Figure C)
Continued on the next page
(Figure A)
(Figure C)(Figure B)
