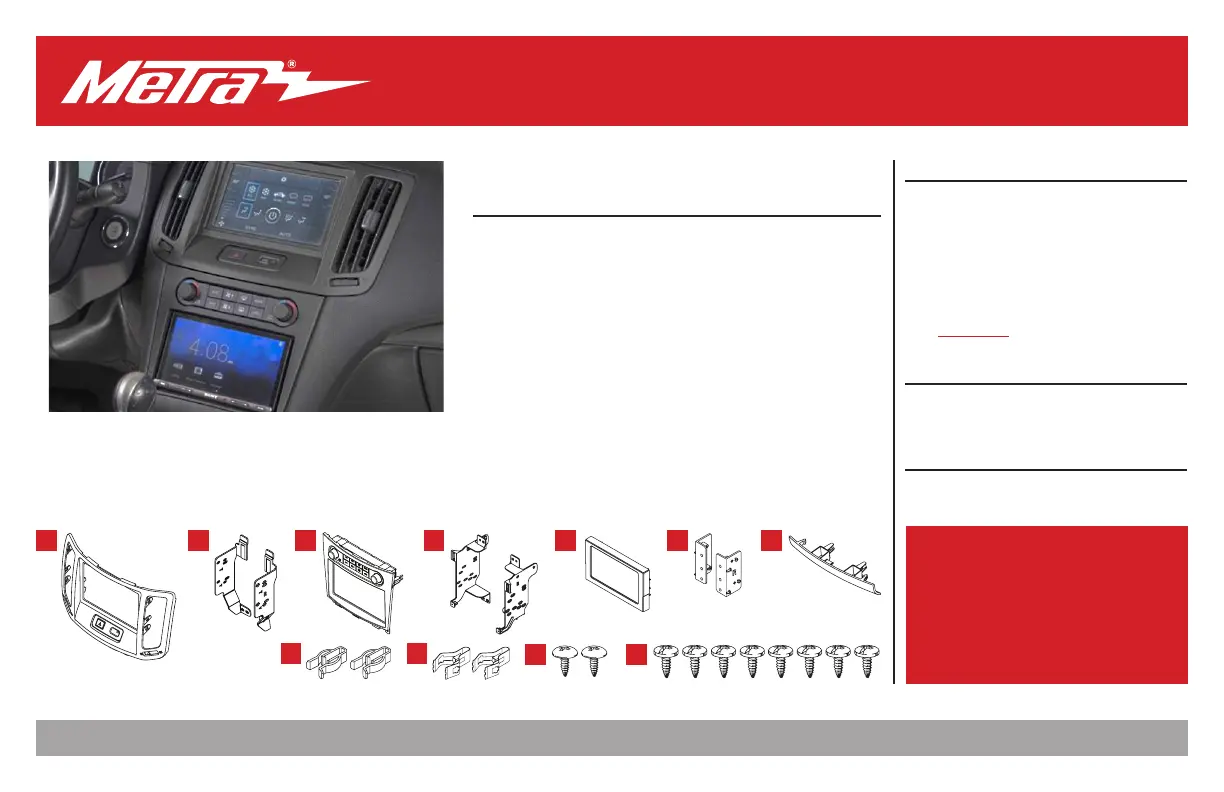

Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 6/6/24 INST95-7640B
INSTALLATION INSTRUCTIONS
95-7640B
KIT FEATURES
• Factory-style hard buttons with laser etched graphics and rotary knobs
retain and allow control of climate functions shown on an included 7-inch
touchscreen display
• Designed for most DDIN radio installations in the lower dash location
• A shallow mount or modular radio can be installed in the upper dash location.
• Integrated hazard button and passenger airbag indicator light
•
Retains audio controls on steering wheel and back-up camera when equipped
• Painted scratch resistant matte black
• Supported Languages include English, Spanish and French
Note: The clock and compass in the driver’s information center will no longer be functional.
KIT COMPONENTS
• A) Upper panel • B) Upper brackets • C) Lower panel • D) Lower brackets • E) Touchscreen • F) Touchscreen brackets • G) Bottom trim panel
• H) White panel clips (2) • I) Metal panel clips (2) • J) #8x3/8" truss-head Phillips screws (2) • K) #8x3/8" pan-head Phillips screws (8)
Not Shown: Antenna adapter and harnesses
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-3
Kit Preparation ....................................................... 4
Kit Assembly ...................................................... 5-8
Final Assembly .................................................... 22
Axxess Interface Installation .........................9-24
WIRING & ANTENNA CONNECTIONS
Wiring Harness:
Included with kit
Antenna Adapter: 40-NI12
Included with kit
Infiniti G37 2008-2013
Visit MetraOnline.com for more detailed information about the
product and up-to-date vehicle specific applications
A B
J K
C D
H I
E F G
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY

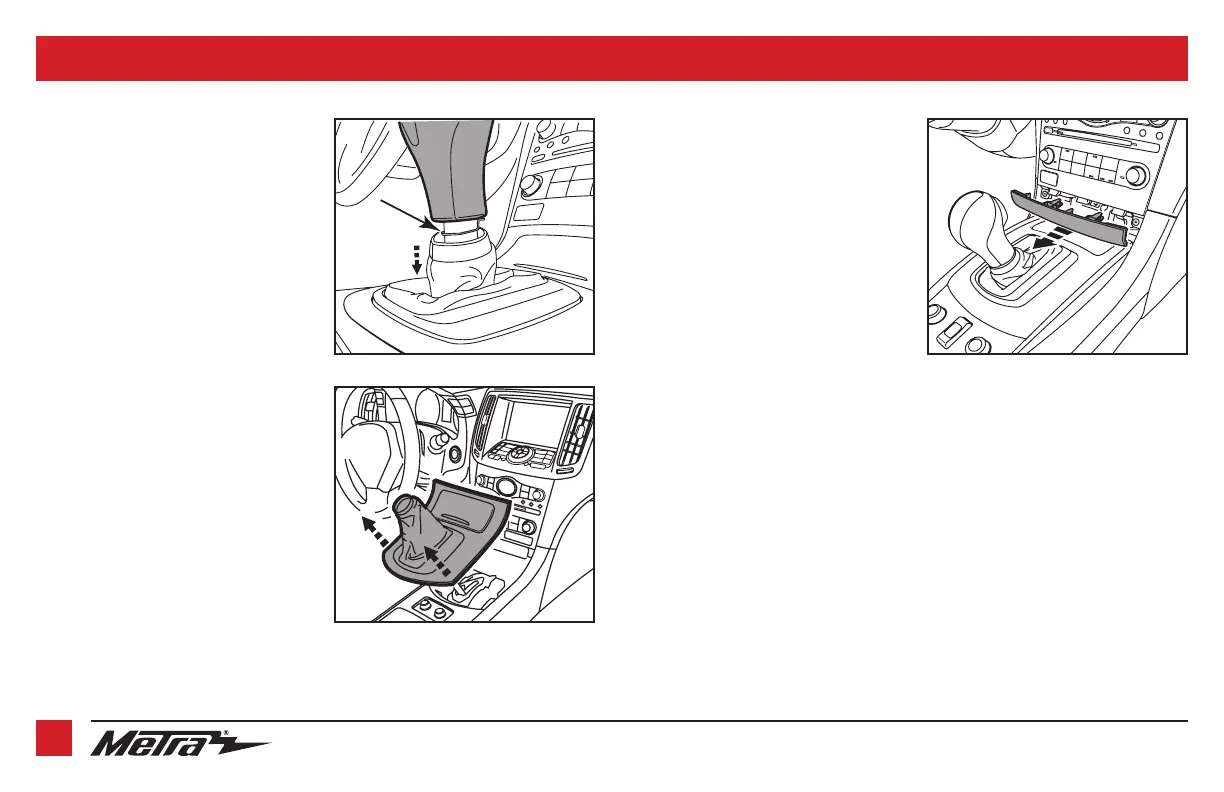

(Figure B)
(Figure A) (Figure A)
2008-2009 vehicles:
1. Slide the shifter boot down and remove
clip holding shifter knob and remove
shifter knob. (Figure A)
2. Unclip and remove shifter boot trim
panel. (Figure B)
Continued on next page
2010-2013 vehicles:
1. Unclip and remove the trim panel from
below the factory radio controls.
(Figure A)
Continued on next page
