Thank you for purchasing this Autel tool. Our tools are manufactured to a high standard and — when used according to these instructions and
properly maintained — will provide years of trouble-free performance.
Autel MaxiScope MP608
Email: [email protected]
Web: www.autel.com
Quick Reference Guide

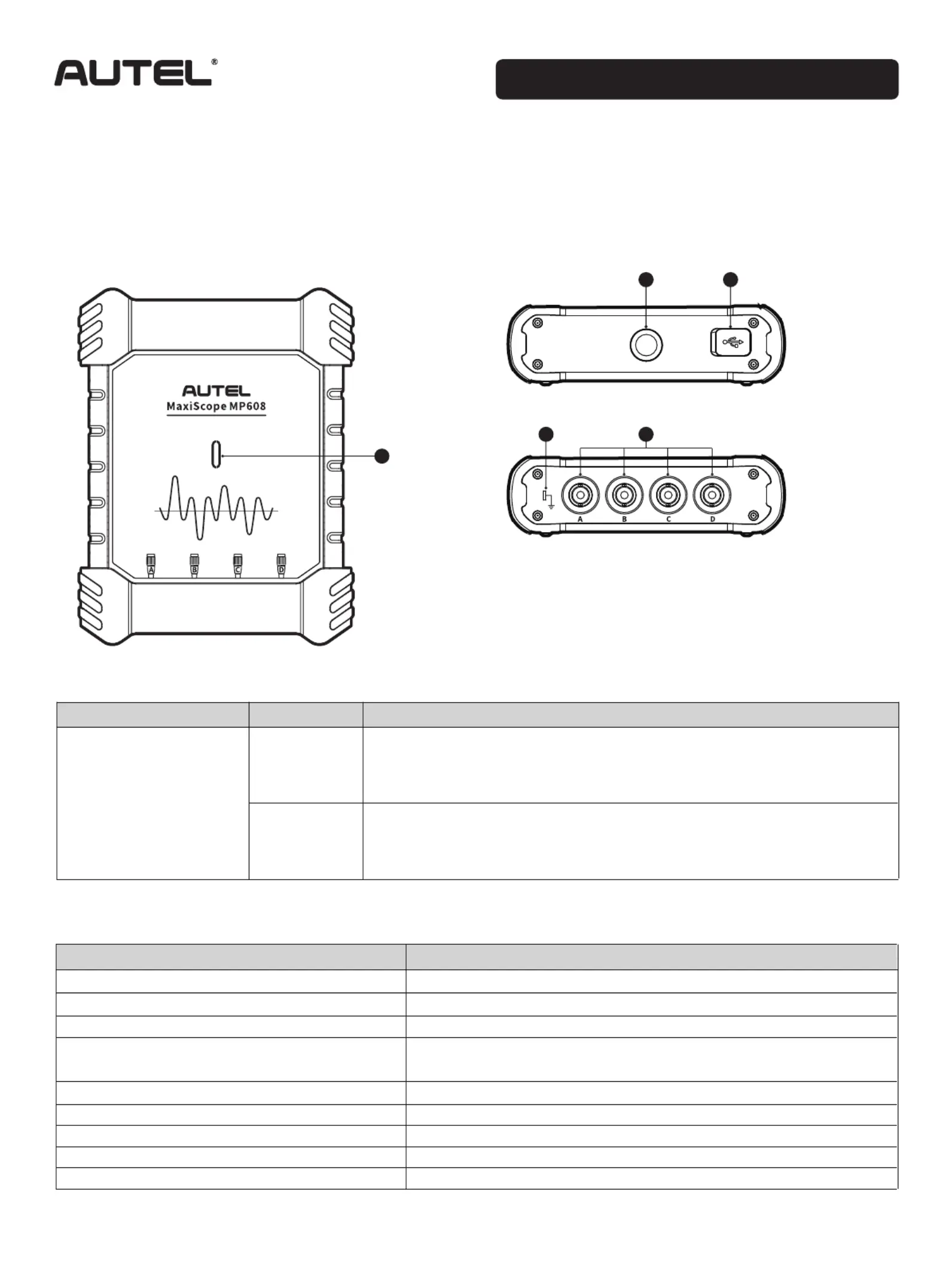

Autel MaxiScope MP608
Table 1-1 Oscilloscope LED Description
LED
Oscilloscope
Specifications
ItemDescription
4
12bit
20MHz
±1%
10mV/div to 40V/div
±50mV to ±200V
-20 to +60°C
184 x 144 x 41mm
• 80MS/s Single Channel
• 20MS/s Combined Channel
Channels
Vertical Resolution
Bandwidth
Sampling Rate
Accuracy
Sensitivity
Input Ranges (full scale)
Storage Temperature Range
Dimensions (protection rubber case included)
ColorDescription
Red
Green
• Illuminates solid red automatically at power-up during self-test.
• Illuminates solid red if a firmware failure occurs during the upgrade.
• Flashes green when upgrading or communicating.
• Illuminates solid red first, then solid green when connected to an Autel tablet or a Windows
PC via USB cable.
23
4
5
Top View
Bottom View
1
Front View
1. Oscilloscope LED — refer to Table 1-1
Oscilloscope LED Description for details
2. USB Port
3. QD (Quick Detach) Socket
4. Input Channel A/B/C/D
5. Ground Terminal
