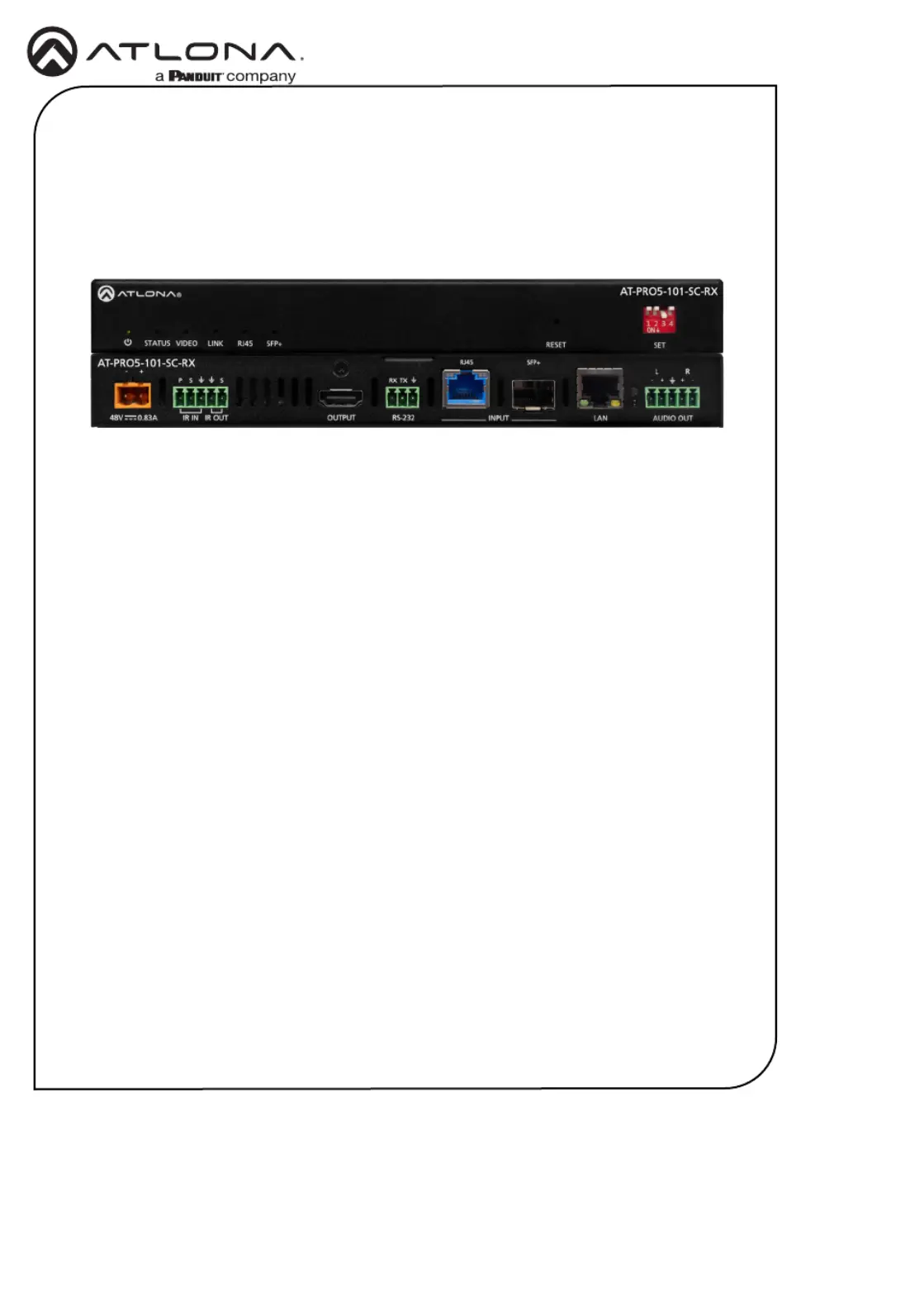

Pagina 1/8
1

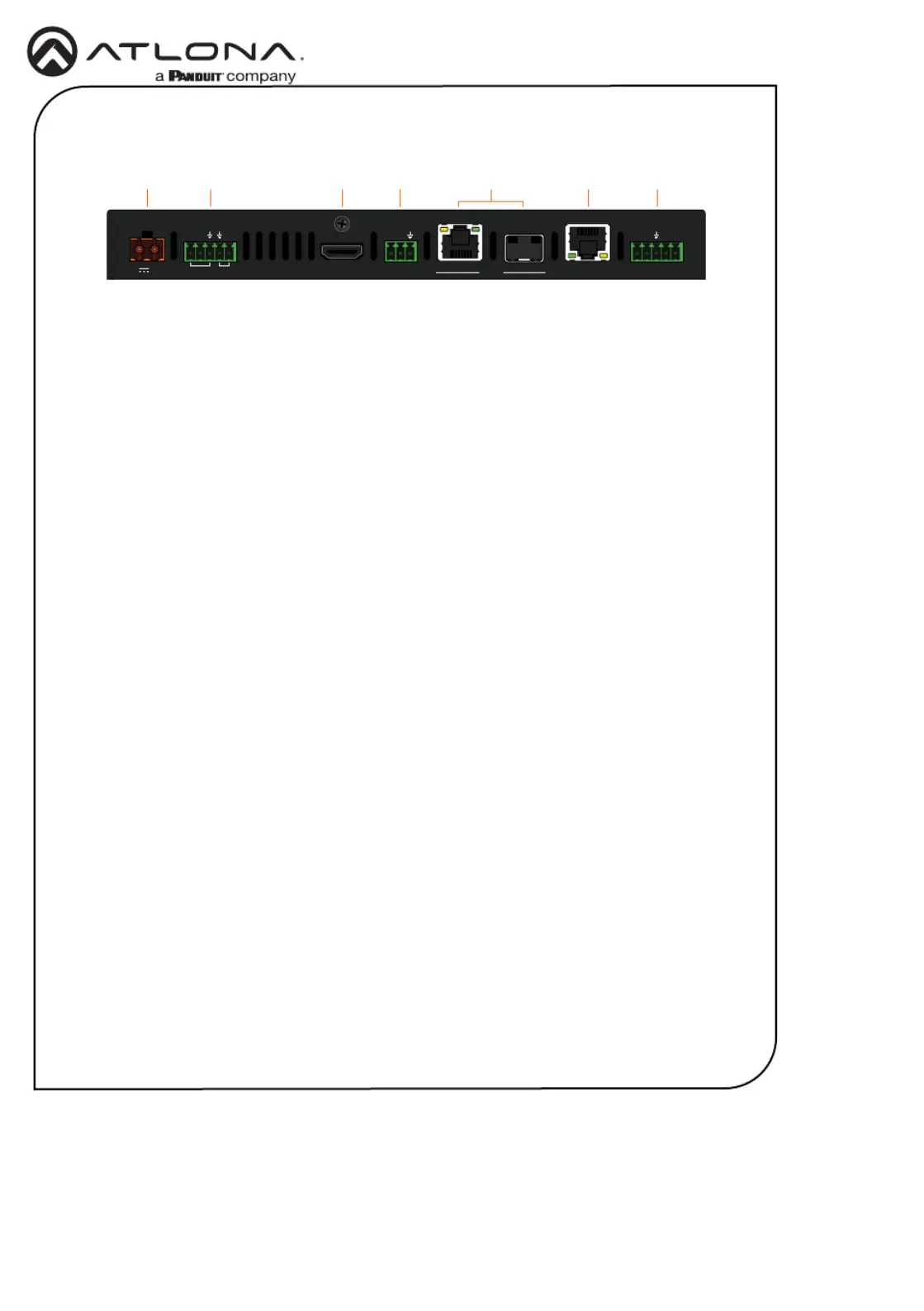

Installation Guide
AT-PRO5-101-SC-RX
4K HDR SDVoE Receiver
with Scaler for PRO5 Matrix Switcher
AT-PRO5-101-SC-RX
The Atlona AT-PRO5-101-SC-RX is an AV extension receiver with integrated video processing,
featuring SDVoE
®
10GbE connectivity for receiving ultra-high denition video and audio from the
AT-PRO5-MX810 matrix switcher. Part of the PRO5 Series, the PRO5-101-SC-RX is HDCP 2.3
compliant, and supports 4K/60 4:4:4 and HDR at HDMI
®
data rates up to 18 Gbps. It features an
RJ45 port, and an SFP+ cage for copper or ber optic connectivity to receive video, embedded
audio, Gigabit Ethernet, and RS-232 and IR control signals from the matrix switcher. The RJ45
port allows extension up to 330 feet (100 meters) over CAT6a UTP cable, along with PoE for
powering the PRO5-101-SC-RX, while the SFP+ cage can be used with a compatible ber
optic module to extend from 38 meters up to 10 kilometers over ber optic cable. This receiver
features high-performance video processing which includes 4K video upscaling and downscaling
with frame rate conversion, and video wall processing for 2x2, 1x3, and 2x4 display arrays. The
PRO5-101-SC-RX SDVoE scaling receiver, together with the PRO5-MX810 HDMI to SDVoE
matrix switcher, is ideal for a wide range of commercial applications requiring multi-zone AV
distribution with long-distance signal extension.
1 x AT-PRO5-101-SC-RX
1 x 3-pin captive screw connector
2 x 5-pin captive screw connectors
1 x Insert w/ QR code
Package Contents
2
Installation Guide
AT-PRO5-101-SC-RX
1 LED Indicators
Displays the current state of the unit:
• PWR - LED will be green when the
unit is powered.
• STATUS - LED will be solid green
when the signal is encrypted with
HDCP. If the signal is not encrypted,
the LED will blink green. If no video
signal is detected, then the LED will
be o.
• VIDEO - LED will be solid green
when video is passing through the
AT-PRO5-SC-RX.
• LINK - LED will be solid green when
a link has been established with AT-
PRO5-MX810.
• RJ45 - LED will be solid green when
the RJ45 port is being used.
• SPF+ - LED will be solid green when
and SFP+ module is being used.
2 RESET
Press this recessed button, using a
paperclip or other small object, to perform
a factory-reset on the unit.
3 SET
These DIP switches control the function
of both the and RJ45 SFP+ port. Refer to
DIP Switch Settings (page 4) for more
information.
Front Panel Descriptions
32
SETRESETSTATUS VIDEO LINK
RJ45 SFP+
AT-PRO5-101-SC-RX
1
ON
2 3 4
1
3
Installation Guide
AT-PRO5-101-SC-RX
1 48V / 0.83A
Connect the included 48 V / 0.83 A power
supply from this port to an available AC
electrical outlet. Note that the power
supply is optional when using the SFP+
port.
2 IR IN / IR OUT
Connect one of the included 5-pin captive
screw connectors to this port. Refer to
IR IN / IR OUT (page 6) for wiring
information.
3 OUTPUT
Connect an HDMI cable from this port to
a display.
4 RS-232
Connect the included 3-pin captive screw
connector to this port.
5 INPUT
Connect these inputs from the AT-PRO5-
MX810, based on the desired extension
method. Note that both RJ45 SFP+ and
port cannot be used at the same time.
• RJ45 - Provides extension up to 330
feet (100 meters) over CAT6A/7 cable
along with Power over Ethernet
(PoE).
• SFP+
When used with compatible ber
optic transceiver modules, this port
provides extension from 38 meters
(125 feet) up to 10 kilometers (6.2
miles) over ber optic cable.
6 LAN
Connect an Ethernet cable from this port
to the network.
7 AUDIO OUT
Connect the included 5-pin captive screw
connector from this port to an amplier.
Rear Panel Descriptions
7612 3 4
AT-PRO5-101-SC-RX
AUDIO OUTRS-232 INPUT LANOUTPUTIR IN IR OUT
RX TX
48V 0.83A
SP
+
-
+ +
- -
S
L R
RJ45 SFP+
5
