Pagina 1/12

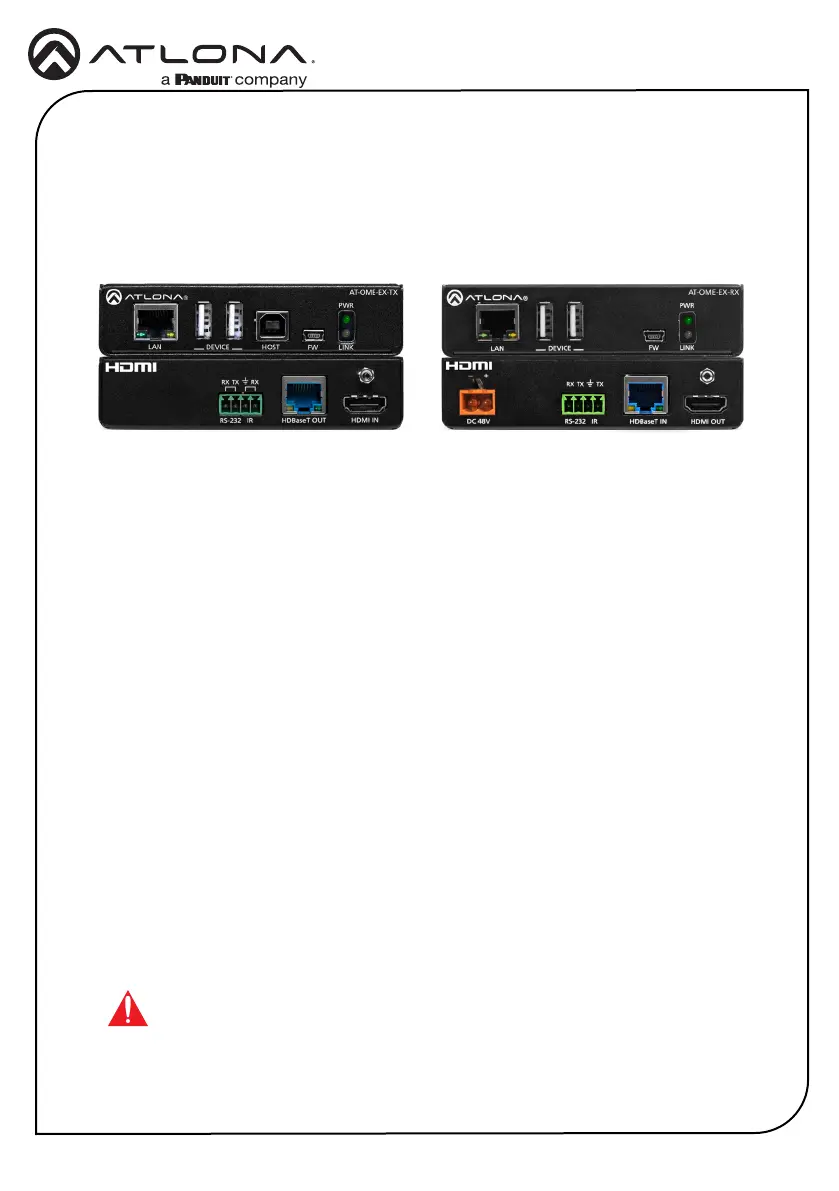

Installation Guide

AT-OME-EX-KIT

Omega™ 4K/UHD

HDMI Over HDBaseT TX/RX with USB, Control, and PoE

AT-OME-EX-KIT

The Atlona AT-OME-EX-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus

embedded audio, control, Ethernet, and USB 2.0 over distances up to 330 feet (100 meters).

Part of the Omega™ Series of integration products for modern AV communications and

collaboration, the OME-EX-KIT is HDCP 2.2 compliant and extends IR, RS-232, and IP control

signals. The integrated USB extension is ideal for software video conferencing and the use of

touch or interactive displays. The OME-EX-TX transmitter includes a USB host port for a PC,

plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The

OME-EX-RX receiver provides two USB 2.0 interfaces for devices such as a camera or display.

The transmitter and receiver are available separately, for use with other Omega Series integration

products.*

* Both the AT-OME-EX-TX and AT-OME-EX-RX are not compatible with the AT-UHD-HDVS-300

system for extending USB.

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-KIT for the

latest rmware updates and User Manual.

1 x AT-OME-EX-TX

1 x AT-OME-EX-RX

2 x Captive screw connectors, 4-pin

1 x AT-IR-CS-TX

4 x Mounting plates

8 x Mounting screws

1 x 48 V DC power supply

1 x Installation Guide

Package Contents

Installation Guide

AT-OME-EX-KIT

1 LAN

Connect a category cable from this port to a network switch. This cable provide IP pass-

through transport control from a control system to the display (sink) device connected to the

AT-OME-EX-RX.

2 DEVICE

Connect up to two USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports

provide 2.5 W per USB device interface.

3 HOST

Connect a USB cable from this port to the host computer.

4 FW

Connect a mini USB-to-USB cable from this port, to a computer, to update the rmware.

Refer to for more information.Updating the Firmware (page 11)

5 PWR / LINK

The LED indicator will glow green when the AT-OME-EX-TX is powered. The AT-OME-PWR

EX-RX supplies power to the AT-OME-EX-TX over HDBaseT. The LED indicator glows LINK

yellow when a solid link is established between the AT-OME-EX-TX and AT-OME-EX-RX.

Refer to for more information.LED Indicators (page 6)

6 RS-232 / IR

Connect the included 4-pin captive screw block to this receptacle. Refer to RS-232 and IR

(page 4) for more information.

7 HDBaseT OUT

Connect a category cable from this port to the port of the AT-OME-EX-RX or HDBaseT IN

other PoE-compatible receiver.

8 HDMI IN

Connect an HDMI cable from this port to the source device.

Front

Rear

HDMI IN

AT-OME-EX-TX

HDBaseT OUT

RX RXTX

RS-232 IR

6 7

LAN FWHOST

OMEGATM

DEVICE

PWR

LINK

1 3 4 5

AT-OME-EX-TX

Installation Guide

AT-OME-EX-KIT

1 LAN

Connect a category cable from this port to the display (sink) device. This cable provides IP

pass-through transport control to the display (sink) device, from a control system connected

to the AT-OME-EX-TX.

2 DEVICE

Connect up to two USB 2.0 devices (e.g. mouse, keyboard, etc.) to these ports.

These ports provide 2.5 W per USB device.

3 FW

Connect a mini USB-to-USB cable from this port, to a computer, to update the rmware.

Refer to for more information.Updating the Firmware (page 11)

4 PWR / LINK

The LED indicator will glow green when the AT-OME-EX-RX is powered. The PWR LINK

LED indicator glows yellow when a solid link is established between the AT-OME-EX-TX and

AT-OME-EX-RX. Refer to for more information.LED Indicators (page 6)

5 DC 48V

Connect the included 48 V DC power supply to this power receptacle.

6 RS-232 / IR

Connect the included 4-pin captive screw block to this receptacle. Refer to RS-232 and IR

(page 4) for more information.

7 HDBaseT IN

Connect a category cable from this port to the port of the AT-OME-EX-TX. HDBaseT OUT

The AT-OME-EX-TX is powered by the AT-OME-EX-RX over HDBaseT.

8 HDMI OUT

Connect an HDMI cable from this port to the display (sink) device.

AT-OME-EX-RX

LAN FW

OMEGAT M

DEVICE

PWR

LINK

HDMI OUTHDBaseT IN

RX TXTX

RS-232 IRDC 48V

AT-OME-EX-RX

Front

Rear

65 7

1 3 4

Product specificaties

Merk:	Atlona
Categorie:	Wifi-repeater
Model:	AT-OME-EX-KIT
Kleur van het product:	Zwart
Soort:	Netwerkzender & -ontvanger
LED-indicatoren:	Link, Power
Aantal USB 2.0-poorten:	4
Aantal Ethernet LAN (RJ-45)-poorten:	4
Certificering:	CE, RoHS, FCC
Duurzaamheidscertificaten:	RoHS
Temperatuur bij opslag:	-20 - 60 °C
Upgraden van firmware mogelijk:	Ja
Output current:	0.83 A
Spanning:	48 V
Maximaal bereik:	100 m
Overdrachtssnelheid:	120 Mbit/s
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Stroomverbruik (typisch):	32.35 W
Bedrijfstemperatuur (T-T):	0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	20 - 90 procent
Code geharmoniseerd systeem (HS):	85176990
Zender breedte:	109 mm
Zender diepte:	127 mm
Zender hoogte:	26 mm
Receiver gewicht:	870 g
Transmitter gewicht:	406 g
Ondersteundende kabel types:	Cat5e, Cat6, Cat6a, Cat7, HDMI
Receiver breedte:	109 mm
Diepte van de receiver:	127 mm
Receiver hoogte:	26 mm
Aantal RJ-45-poorten (ontvanger):	2
Aantal RJ-45-poorten (zender):	2
