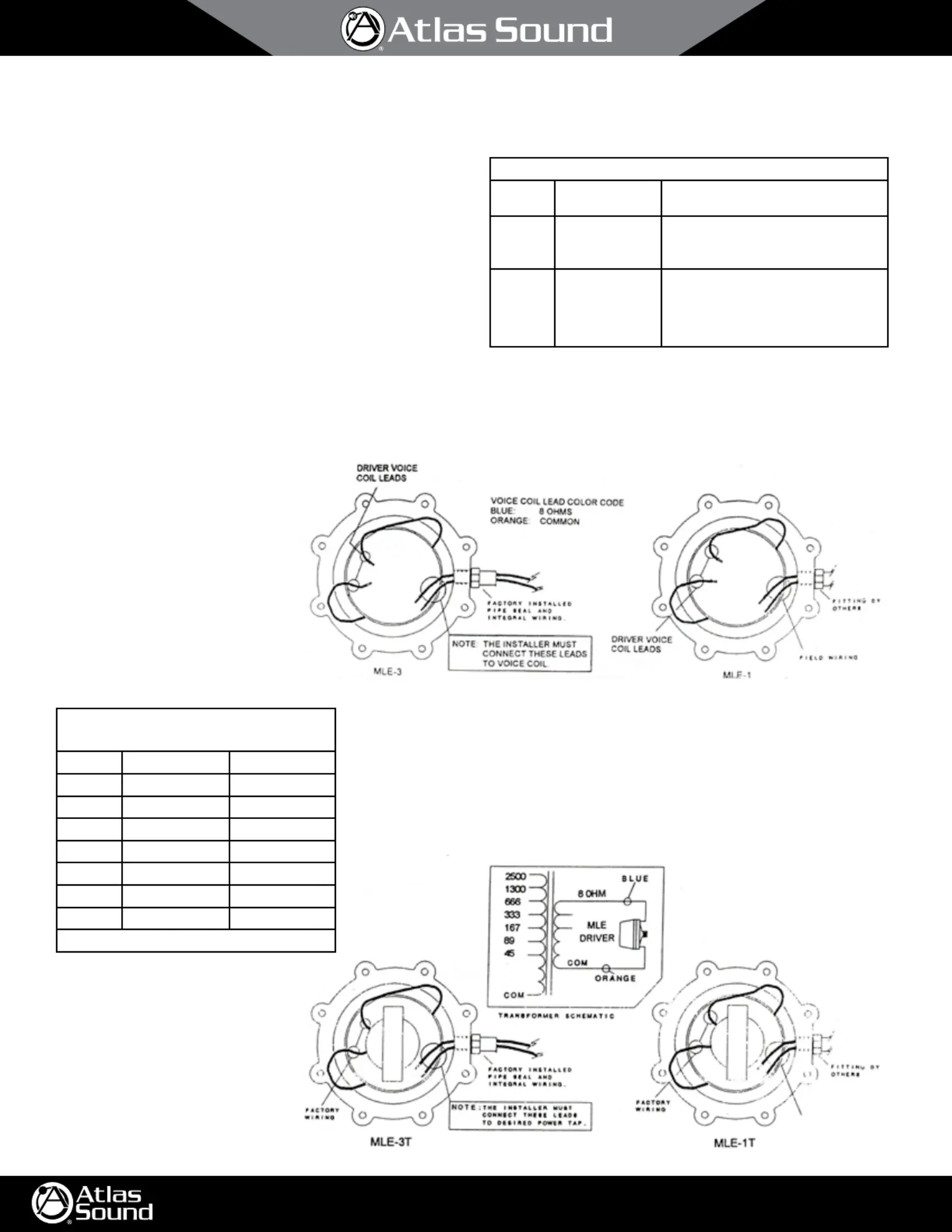

Wiring the Driver

The back cover of the explosion-proof driver enclosure must be removed for

access to the field connections. Exercise special care when removing the

back cover to avoid damaging the machined surfaces.

Prior to re-assembly, make certain that the joining surfaces of the enclosure

are free of any foreign matter that would interfere with proper mating of the

machined surfaces. Tighten all bolt cover bolts completely.

NOTE: To provide the specified protection in hazardous locations, do not

apply any type of compound/sealant to the machined flange.

The MLE-1 does not include a factory installed pipe seal. The installer must

provide an appropriate connector as directed by local codes or authority

having jurisdiction. A pipe seal with integral field wiring leads is included with

the MLE-3.

The models MLE-1T and MLE-3T include an integral line matching

transformer.

Refer to the wiring diagrams when connecting field wiring.

MLE Series

Explosion Proof Drivers

UNDERWRITERS' LABORATORY LISTINGS

DRIVERCLASS/

GROUP

FOR ATMOSPHERE

CONTAINING:

MLE-1(T)Class 1/

Group C and D

Gas Atmospheres

(Including Ethyl, Gasoline, Naphtha,

Ether, Butane, Alcohols, Propane)

MLE-3(T)Class 1/

Group

B, C, and D

Gas Atmospheres

(Including Ethyl, Ether, Gasoline,

Naphtha, Alcohols, Butane, Propane)

Hydrogen, Gas and Vapor,

(Manufactured Gas)

NOTE: FIELD WIRING MUST

CONNECT TO DESIRED

TRANSFORMER POWER TAP

TRANSFORMER TAPS,

IMPEDANCE/WATTS

OHMSWATTS, 70V INWATTS, 25V IN

45*15.0

89*7.0

16730.03.7

33315.01.89

6667.5-

13003.7-

25001.8-

* = DO NOT USE
