Pagina 1/11
T M
4" [102] TURBO Swift
ADA COMPLIANT HAND DRYER
Model No.: 0192-1-93 110-120V 60Hz
1903281349 Rev. A 3 Apr 2019
PLEASE READ CAREFULLY THROUGH THIS MANUAL BEFORE USING THE
PRODUCT, OBSERVING ALL SAFETY INFORMATION, CAUTIONS, WARNINGS.
®
®
MOD# 0192-1-93
Automatic
110-120VAC 50/60HZ 1.0KW
Motor 0.8HP 30000rpm
S/N:
HAND DRYER
®
Page 2 of 10
®
AMERICAN SPECIALTIES INC.
441 Saw Mill River Road Yonkers, NY 10701-4913
Tel: 914.476.9000 Fax: 914.476.0688
www.americanspecialties.com
GENERAL SAFETY INFORMATION
WARNING
DANGER
WARNING
WARNING
This product is intended
Failure to properly ground
Disconnect power at the
All units must be suppllied
for installation by a qualified service person.
Use AWG NO.12 solid conductor for wiring.
unit could result in service electrical shock
and/or death.
service breaker before installing or servicing.
with a 3-wire service. The ground wire must
be connected to the dryer’s backplate.
-- OTE: Do not install dryer over washbasin --N
SAFETY WARNINGS
Before installing, be sure to read this installation manual and retain for future reference.
This product must be installed by qualified personnel in accordance with the instructions given in
this manual and installation must comply with all applicable regulations, national security standards
and laws in force in the country where the product is installed.
Turn off the power at the main switch before installing or servicing the dryer unit.
The dryer must not be installed on a flammable surface. Do not damage any parts of the electrical
connections.
Pre-arrange an appropriate power outlet and a system of disconnection in accordance with current
local regulations. Make sure the product is properly connected to ground. If there is no grounding
connection, there is a risk of an electrical shock.
Do not install the drye r over a washbasin. If the power co rd is damaged, it must be repaired by a
qualified personnel to avoid any type of risk.
This dryer can be used by children aged 8 years and above. People with reduced physical, sensory
or mental abilities or lack of experience and knowledge, if they have been given supervision and
appropriate training regarding the use of the dryer in a safe manner, can use it with no restriction.
Children should not play with the apparatus. Cleaning and maintenance performed by the owner
should not be done without the children having supervision.
During use, temperatures above 158 [70 ] may develop in the parts near the hot air nozzle.℉ ℃
Do not touch or cover the dryer during use or when finished using it.

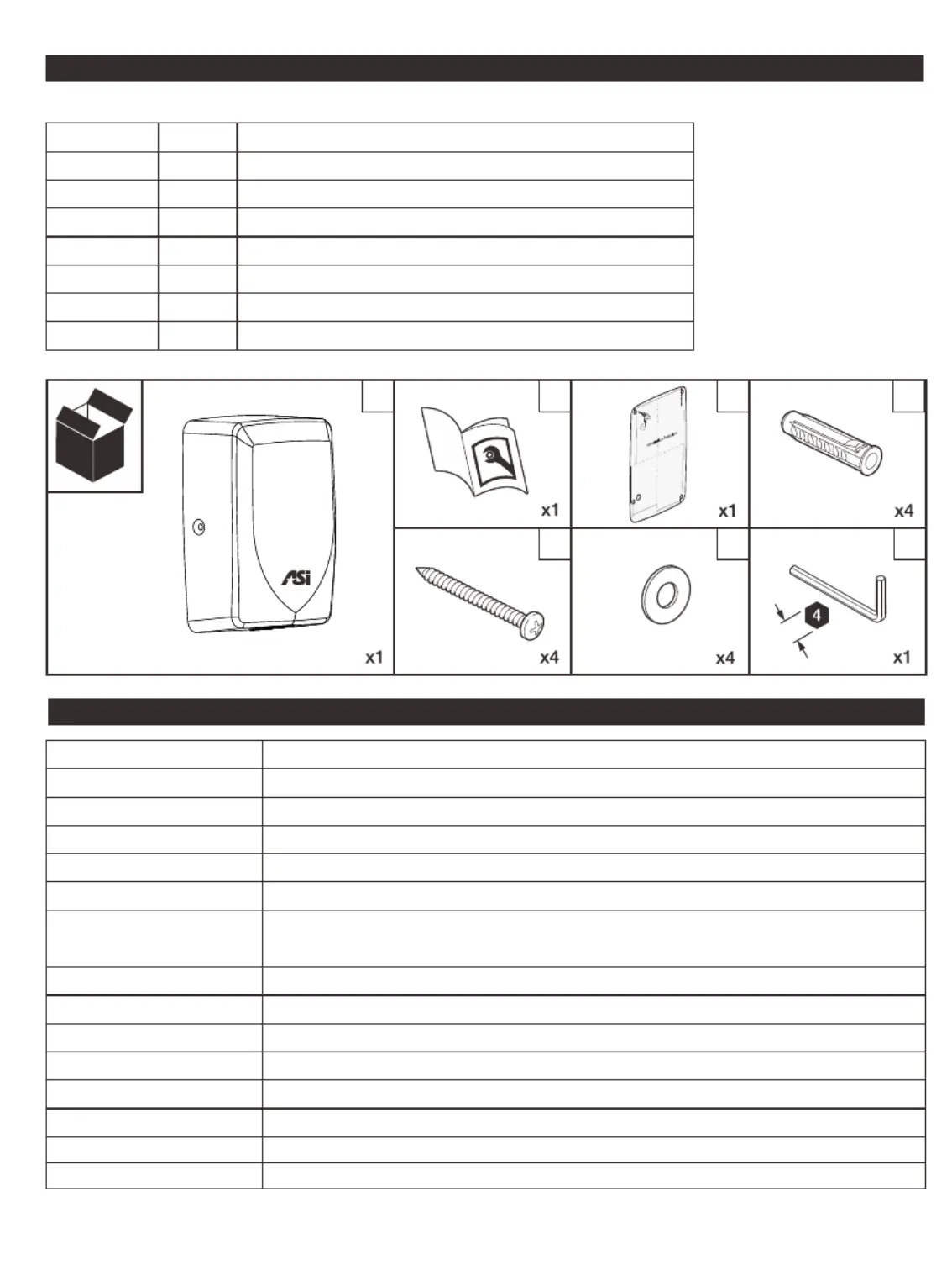

PACKING LIST
SPEC IFICATION
®
ITEM KEY
ITEM CATEGORY
PC’S
A
Operating Voltage
Output Warm Air Temp
Output Air Velocity
Output Air Flow
Drying Time
Sensor Range
Motor Type
Sound Pressure
Power Supply
Stand-by Power
Timing Protection
Timing Duration
Fuse Protection
Heater Element
A
D
F
CB
MT
G
E
1
DESCRIPTION
DESCRIPTION
Hand Dryer Unit Complete
Fig.1
Fig.2
110 120 V, 60Hz, 1kW-
104°F [40 ] at ambient T=77°F [25 ], Distance from Nozzle=4" [100]℃ ℃
328 ft/s [100 M/s], 224 MPH [360 km/h]
3
82.4 CFM [140M /H]
10~12 seconds
2"~7-5/64" [51-180], for sensing capability under optimum conditions
Owner ADJUSTABLE
Brush Contacts, Dual Ball Bearings, 30 kRPM, 600 W, 0.8 HP
80 dB-A @1 M, 74 dB-A @ 2 M
Outlet Socket within 8" [203] or concealed hardwire (see MT) all by others
Less Than 2.0 W
Forced Hold-On 60 seconds auto shut-off
Auto Shut-Off ≤ 3 sec after last sensor read
Main P CB, Φ5× 20, 250 V, 12A
Nichrome wire, 20-80, 1/64" Dia. [Ø 0,4], 24 Ω, coil on armature type
Owner Manual (OM -This Booklet)
Mounting Template (MT)
Wall Anchors 5/16" Dia.×1-1/2" [Φ8x38]
Self-Threading PPHS No.10AB×1-3/16" [M5 x 36]
Flat Washer for No.10AB [M5] PPHS
Hex Key 5/32" [4]
5/32" [4]
B 1
C 1
D 4
E 4
F 4
G 1
Page 3 of 10
