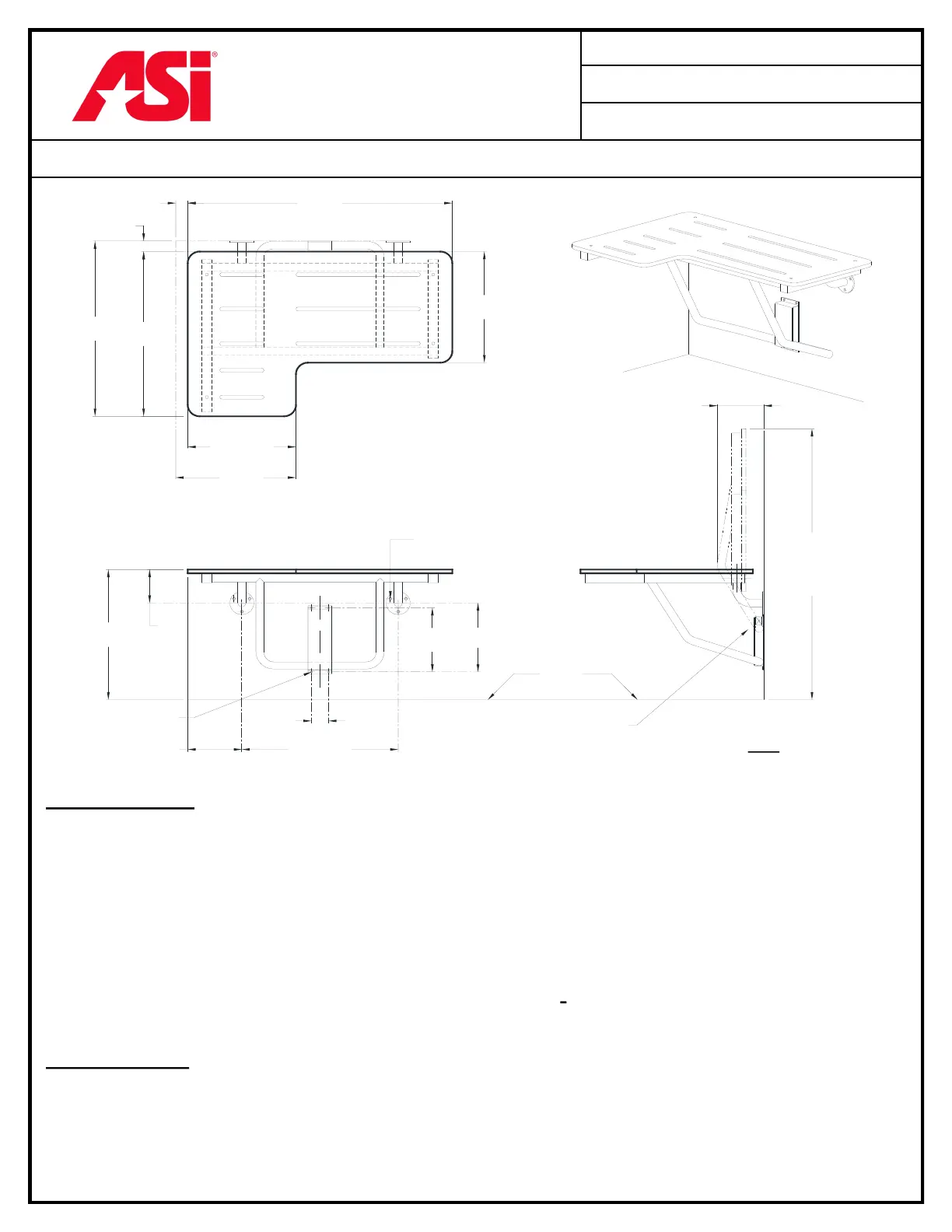

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
(914) 476.9000 • (914) 476.0688
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
SPECIFICATION
L-shaped Phenolic Fold-up Shower Stall Seat shall have all metal parts fabricated of 18-8 alloy type 304 stainless
steel. Seat frame and support legs shall be 1" diameter [Ø25] and 1-1/4" [32] square x 18 gauge [1,2] with
3/16" [4,8] thick mounting flanges and 16 gauge [1,5] guide bracket/arm support. All exposed surfaces shall have
satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radi-
used and/or deburred. Seat shall be solid phenolic with white color top and bottom surfaces and shall have black
edges. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings
shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating posi-
tion. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.
L-shaped PhenolicFold-up Shower Stall Seat shall be Model N
o
8206-___ (R for right hand or L for left
hand) of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701- 4913
INSTALLATION
This unit is surface mounted. Installer/construction contractor must provide concealed anchor plate or blocking as
specified in construction documents or as required by local building codes prior to wall finishing. Fasten unit
flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware. See “STRENGTH”
section below. Note that concealed mounting plates or anchors and hardware are not supplied with this product
and must be specified separately. Ensure that mounting configuration complies with local building codes. Unit is
reversible in the field for right or left hand installation.
L-SHAPED PHENOLIC FOLD-UP SHOWER STALL SEAT (Pg 1 of 2)
8206
05 JAN 1987
12 SEP 2019
17" TO 19"
[432 TO 483]
4-3/8"
[111]
6-3/4" [171]19-1/2" [495]
9
[229]
8-3/8"
[213]
35-3/8"
[899]
TO
37-3/8"
[949]
22-7/8"
[581]
21-1/2"
[546]
1-3/8"
[35]
33" [838]1-1/2" [38]
13-1/2" [343]
15" [381]
14-1/2"
[368]
2-1/8"
[54]
SPRING
DETENT
2-1/4" DIA [Ø 57]
BOLT CIRCLE FOR #10
FASTENERS
1/4" DIA [Ø6]
HOLES (4)
FINISHED
FLOOR
C
L
C
L
C
L
C
L
C
L
C
L
C
L
C
L
5-13/16"
[147]
RIGHT HAND SHOWN
LEFT HAND OPPOSITE
FIELD REVERSIBLE
NOTE:
ALL DIM’S INCH [MM]
ILLUSTRATION FOR REF ONLY AND NTS
