Arecont Vision H.264 Color or Day/Night SurroundVideo

® Series Installation Manual

0 P a g e|

Arecont Vision H.264 Color or Day/Night SurroundVideo

® Series Installation Manual

1 P a g e|

H.264 Color or Day/Night SurroundVideo® Installation Manual

Inside the box:

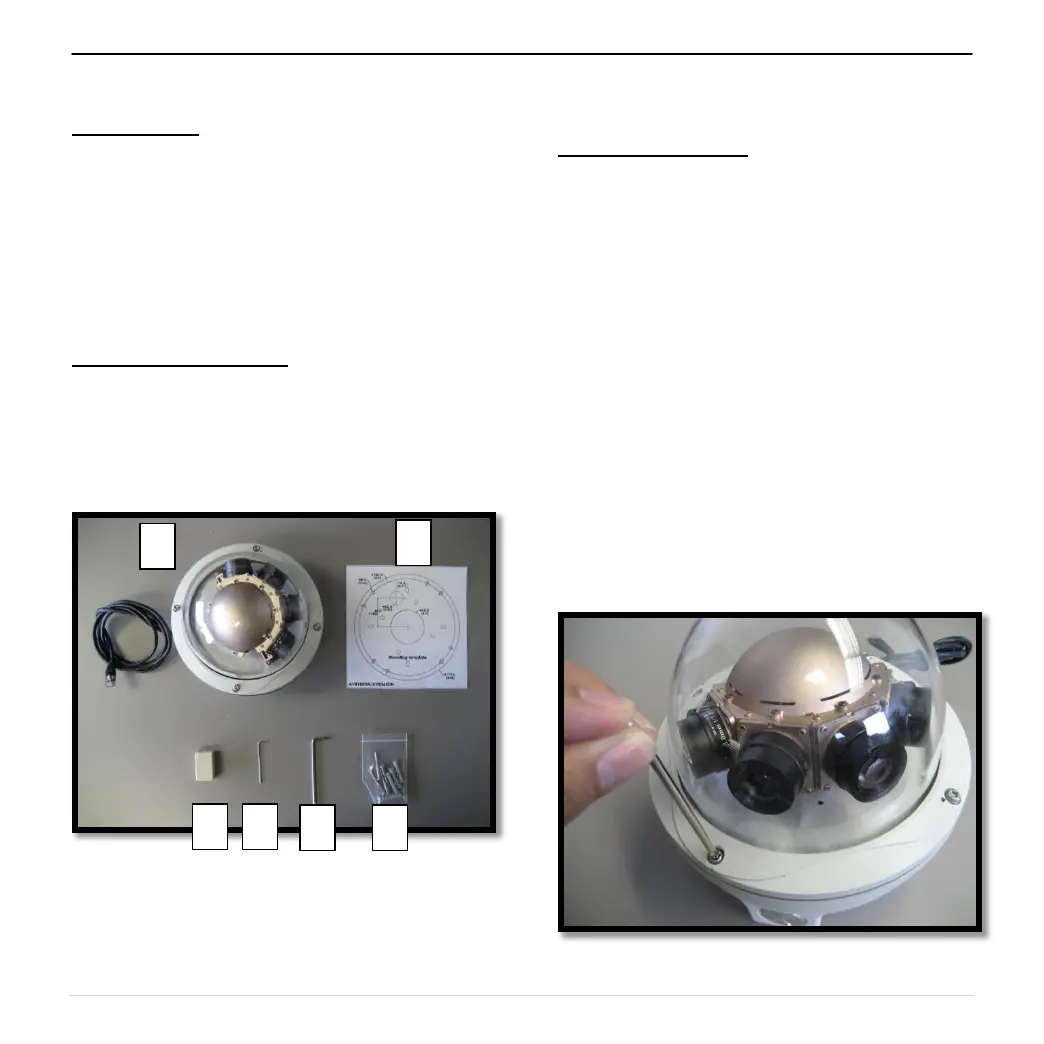

A. Arecont Vision SurroundVideo® camera

B. Mounting template

C. RJ45 female to female coupler

D. Hex key

E. Security L-key

F. Pack of four (4) wood screws and four (4)

dry wall anchors

Not included but needed:

 #1 Phillips head screwdriver

 #2 Phillips head screwdriver

 Flat head screwdriver ( for side conduit

opening)

Image 1

Mounting the Camera:

1. box Remove camera and hardware from the .

2. Using the mounting template, prepare the

mounting provisions for camera installation.

NOTE Since SurroundVideo: ® series ship with

both surface mount and in-ceiling mount the ,

mounting template takes both into

consideration.

3. Using security L-key, loosen the four (4)

screws securing the dome cover . (Image 2)

Remove vandal resistant dome cover.

NOTE: Do not remove screws from the dome

cover.

Image 2

Arecont Vision H.264 Color or Day/Night SurroundVideo

® Series Installation Manual

2 P a g e|

4. #2 If using in-ceiling mount, please use

Phillips head screwdriver to loosen the four

(4) machine screws ( ) and remove in-Image 3

ceiling mount housing from surface mount

housing ( . Image 4)

NOTE 1: The above removed screws are also

used to attach the camera with in-ceiling

mount housing to the pendant mount (Image

5 Image 6) and wall mount ( ). Do not

disregard.

NOTE 2: The in-ceiling mount only can be

attached on hard ceilings including wood,

plastic, metal and concrete.

NOTE 3 For use in a false ceiling, a ﬂush :

mount adapter kit must be used.

Image 3

Image 4

Image 5

Image 6

In-Ceiling Mount

Surface Mount

Screws

Pendant Mount

Wall Mount
