Pagina 1/4

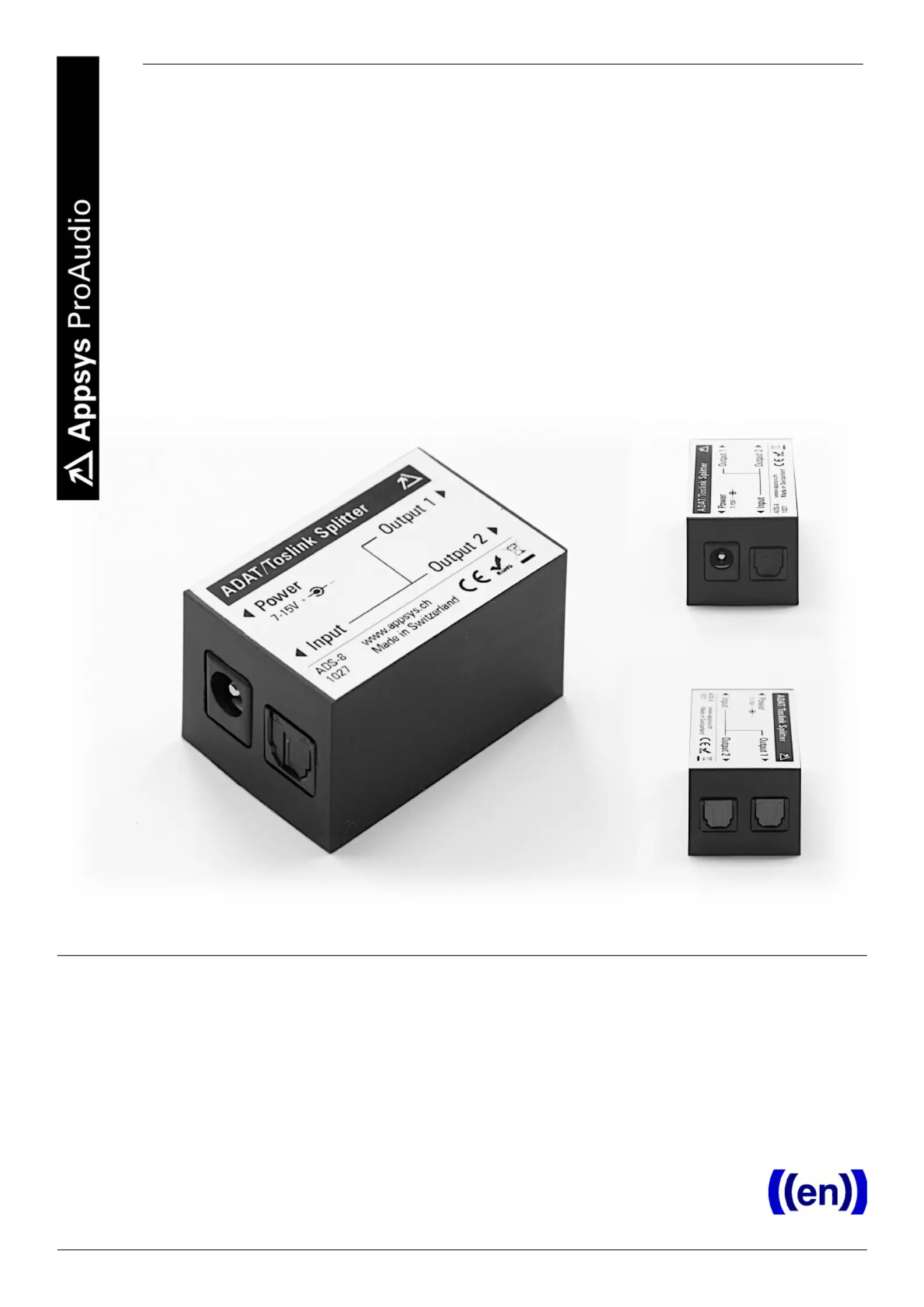

ADS-8
Active Splitter for ADAT® and TOSLINK®
optical audio connections
User's Manual
User's Manual
1. DESCRIPTION
1.1. Foreword
The ADS-8 ADAT/TOSLINK Splitter allows you to split digital audio connections
(e.g. ADAT or S/PDIF) from a single source into two sinks (like an „Y-cable“ ).
The active ADS-8 was designed to overcome the limitations of traditional passive
splitters which essentially half the amount of light on each output. This attenuated
signal is usually too weak for proper transmission of high-speed signals like ADAT.
In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal
which can be split without loss to the out put transmitters which operate on each
port with full power.
This gives you a number of advantages:
Reliable, lossless, true bit-transparent splitting of any signal
Doubles maximum transmission distance of an optical connection from
normally 5-10m to 10-20m, depending on the equipment used
Compatible with all audio formats which can be sent over TOSLINK
Quality product “Made in Switzerland“
1.2. Box Contents
ADS-8 Splitter
Wide-range AC power adapter (country specific plug)
This manual
2. SETUP
1. Connect the supplied AC adapter (power supply) to the „DC Input“ jack
2. Connect the output of your audio signal source (ADAT source, sound card, CD/
DVD player...) to optical Input (labeled “Input“) using a standard TOSLINK
optical cable
3. Connect „Output 1“ to your first signal sink using a standard TOSLINK cable
4. Connect „Output 2“ to your second signal sink using a standard TOSLINK cable
The ADAT/TOSLINK Splitter is now ready to operate.
2
ADS-8
3. SPECIFICATIONS
Model number ADS-8
Input/Outputs Optical connector, F05 Type
TOSLINK® compatible
Supported audio formats ADAT Lightpipe ® •
•S/PDIF ® (up to 96kHz / 24 bit)
•Dolby Digital ® 5.1 (AC-3)
•DTS ®
•all other TOSLINK compatible formats up to 13.2
MBit/s (NRZ-encoding)
Power supply
7-15V DC 60mA, Polarity: Center Positive
Plug: ID=2.5mm OD=5mm Length=9mm
4. APPENDIX
4.1. Warranty
We oer a full two (2) year warranty from the date of purchase. Within this period,
we repair or exchange your device free of charge in case of any defect*. If you
experience any problems, please contact us first. We try hard to solve your
problem as soon as possible, even after the warranty period.
* Not covered by the warranty are any damages resulting out of improper use,
willful damage, normal wear-out (especially of the connectors) or connection with
incompatible devices.
4.2. Manufacturer contact
Appsys ProAudio
Rolf Eichenseher
Bullingerstr. 63 / BK241
CH-8004 Zürich
Switzerland
www.appsys.ch
info@appsys.ch
Phone: +41 43 537 28 51
Mobile: +41 76 747 07 42
4.3. FCC Compliance
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
3
