TOWN SQUARE

®

Recommended Tools

Adjustable WrenchChannel LocksFlat Blade ScrewdriverPlumbers' Putty or CaulkingPhillips Screwdriver

1-5/8" TO 3-1/4"

FINISHED WALL

BOTTOM OF

TUB

74" FOR

HEAD CLEARANCE

2" REF.

18"

OPTIONAL

1/2" I.P.S.

1

7-5/8"

4-7/8" REF.

OPTIONAL TO

FINISHED FLOOR

USUALLY BETWEEN

65'' AND 78''

8" REF.

8-1/2" REF.

4"

TOP OF

TUB RIM

1-3/4" REF.

1/2" COPPER

SEE VALVE INSTRUCTIONS FOR

INSTALLATION INFORMATION

7-1/4" REF.

Certified to comply with ANSI A112.18.1

T555.52X

Installation

Instructions

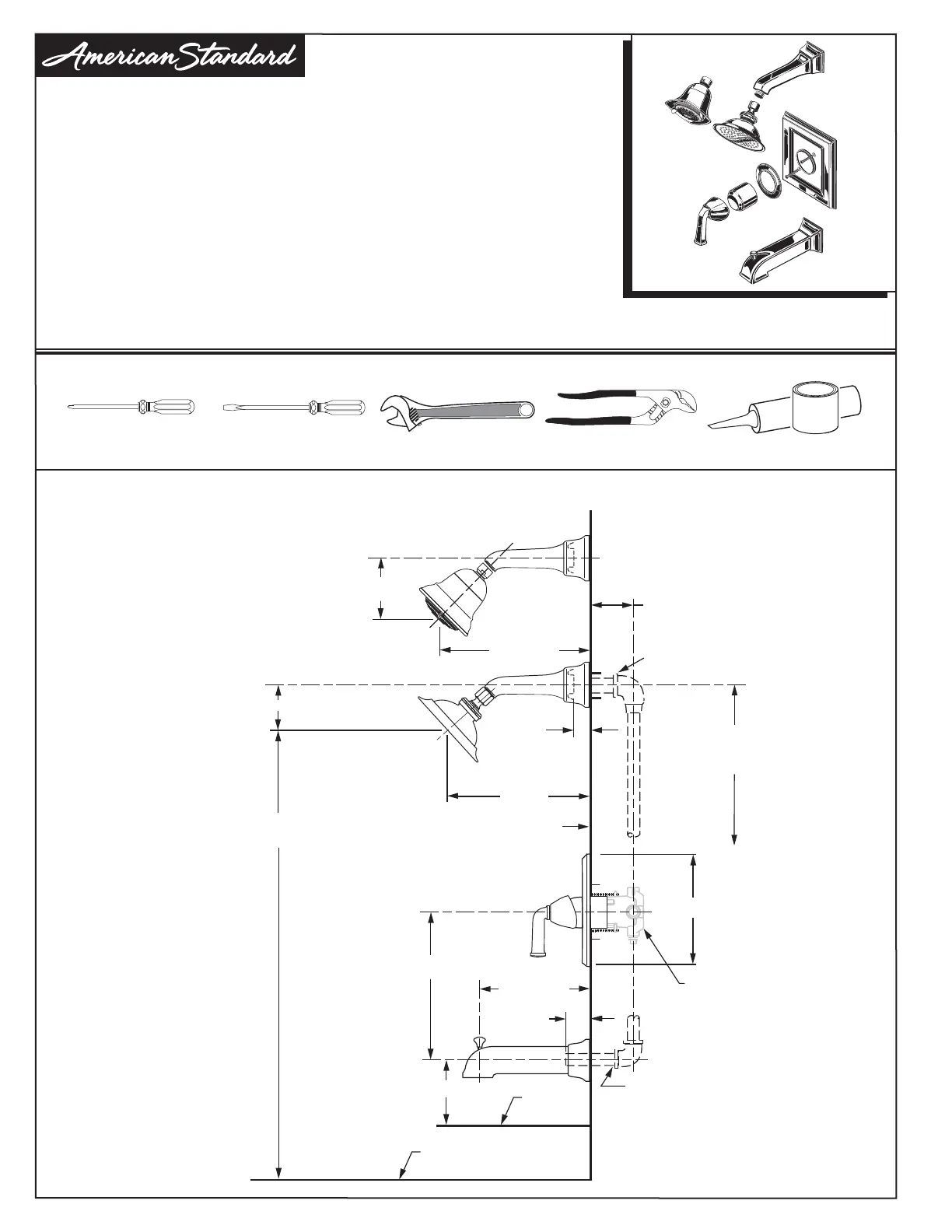

ROUGHING-IN DIMENSIONS

■To assure proper positioning in relation to

wall, note roughing-in dimensions.

PRESSURE BALANCING BATH

AND SHOWER TRIM KIT

Thank you for selecting American-Standard...the benchmark

of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please

read these instructions carefully before you begin.

M965112 REV.1.4 (8/15)

FLOWISE 3-FUNCTION

SHOWERHEAD
