SAVE FOR FUTURE USE
2
1
7301198-100
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2008
NEOPRENE
SEAL
SEALANT
INSTALL NEOPRENE OR GRAPHITE FELT SEAL*
Install seal evenly around waste flange (horn).
Apply a thin bead of sealant around base flange.
*NOTE: Wax seal not recommended for this application.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING
TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE:Pictures may not exactly define contour of china and components.
NOTE:For proper operation these products require a minimum of 30 psi line pressure.

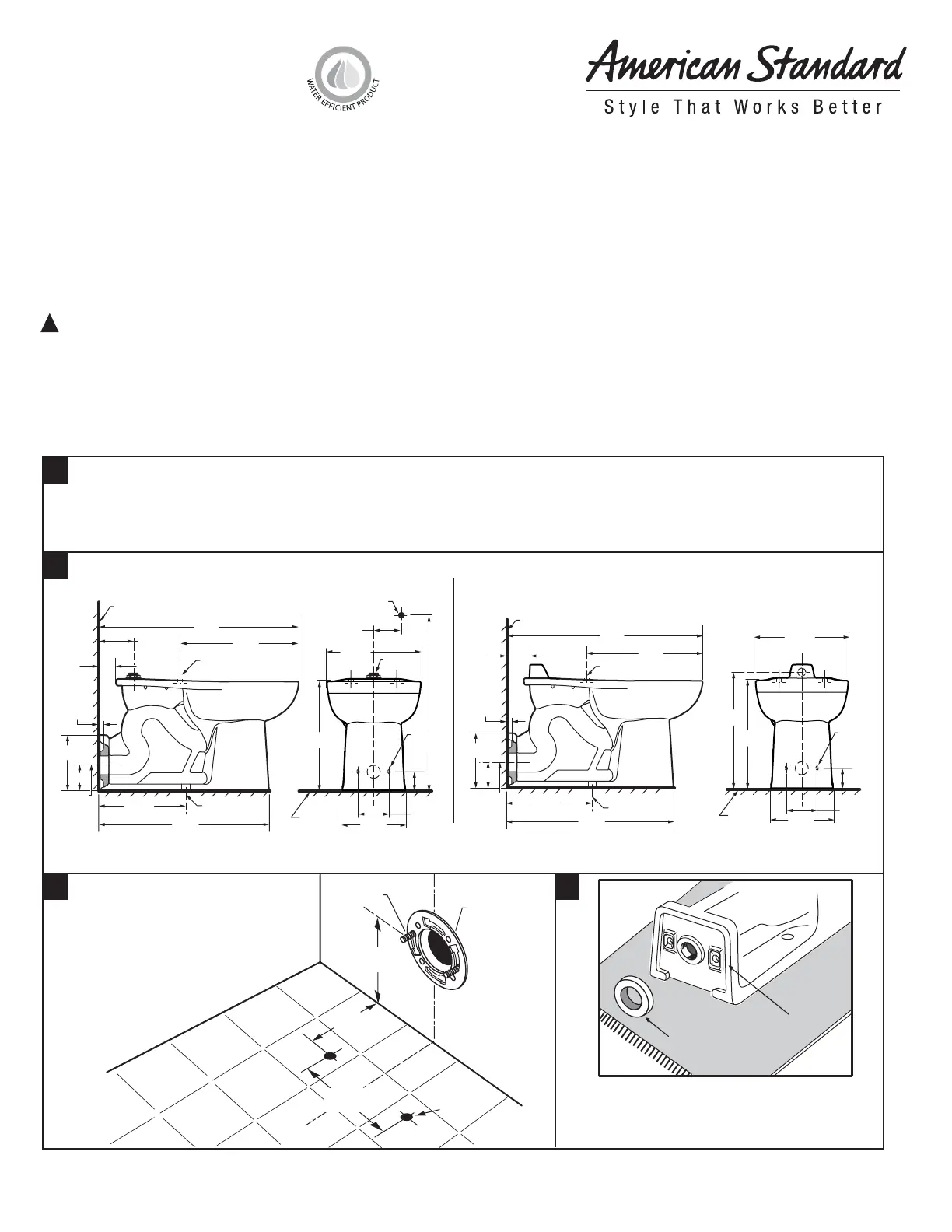

PRIOLO FLOOR MOUNT BACK OUTLET
ADA FLUSHOMETER ONE PIECE TOILET
INSTALLATION
INSTRUCTIONS
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
!
730mm
(28-3/4)
121mm
(4-3/4)
240mm
(9-1/2)
152mm
(6)
102mm
(4)
419mm
(16-1/2)
470mm
(18-1/2)
356mm
(14)
13mm
(1/2)
345mm
(13-5/8)
646mm
(25-3/8)
60mm
(2-3/8)
136mm
(5-3/8)
752mm
(29-5/8)
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
FINISHED WALL
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE
(SUGGESTED)
C/L OF 1/2”
DIA. HOLES
1-1/2
SPUD
FINISHED
FLOOR
13 x 25mm
slots
(1/2 x 1")
102mm
(4)
C/L OF
WASTE
OUTLET
PRIOLO 3695/3696 16-1/2" TOP SPUD
PRIOLO 3697/3698 16-1/2" BACK SPUD
DIMENSIONS (Nominal) NOTE: Distance from floor to closet flange centerline (rough-in)
must be 4" (102 mm) with flange surface flush to 1/16" (1.6mm) max. beyond finished wall.
240mm
(9-1/2)
419mm
(16-1/2)
438mm
(17-1/4)
356mm
(14)
470mm
(18-1/2)
217mm
(8-1/2)
102mm
(4)
112mm
(4-3/8)
752mm
(29-5/8)
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
FINISHED WALL
C/L OF
WASTE
OUTLET
217mm
(8-1/2)
152mm
(6)
102mm
(4)
FINISHED
FLOOR
13mm
(1/2)
13 x 25mm
slots
(1/2 x 1")
345mm
(13-5/8)
646mm
(25-3/8)
C/L OF 1/2”
DIA. HOLES
1.6 GPF Models 3695.016, 3696.016, 3697.016, 3698.016
1.28 GPF Models 3695.128, 3696.128, 3697.128, 3698.128
HET
High Efficiency
(1.28gpf/4.8Lpf)
34
FLUSH TO
1/16" (1.6mm)
EXPOSED
CLOSET
FLANGE
CLOSET
BOLTS
168mm
(6-5/8)
PILOT
HOLES
102mm
(4)
345mm
(13-5/8)
Install closet bolts in flange channel, turn
90°, and slide into place 6" (152 mm)
apart and parallel to floor. (Use putty to
hold bolts in place if necessary.) Brace
under flooring as needed and drill two
mounting pilot holes as shown.
a. Close flush valve completely.
b. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug wall waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. base area.
NOTE: Mounting surface must be clean and perpendicular to the floor before new toilet is installed!
REMOVE OLD TOILET
INSTALL CLOSET BOLTS
