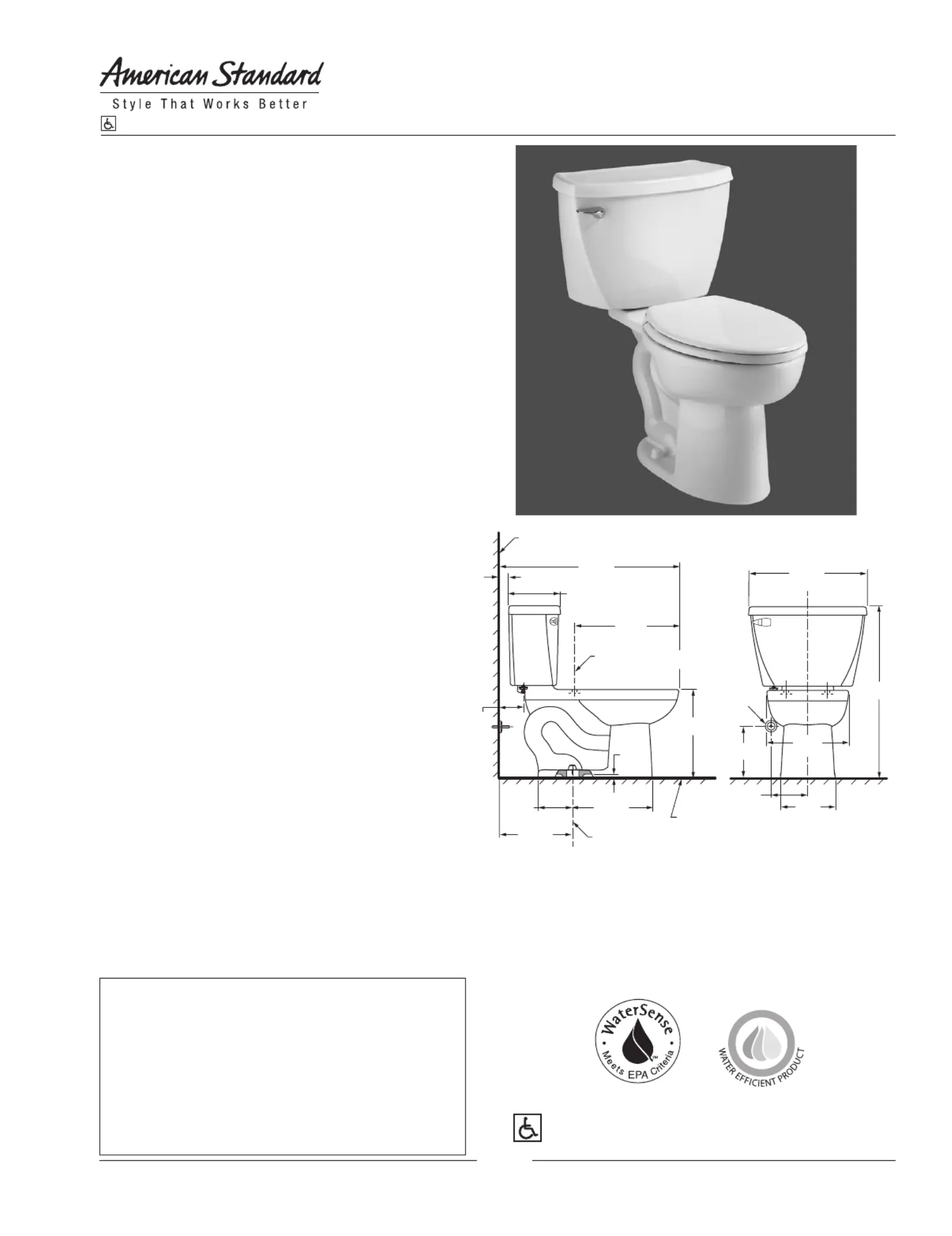

M51

© 2010 AS America Inc.

Revised 2/10

To Be Specied:

❏❏❏❏❏ Color: White Bone Linen Black

❏ Seat: American Standard #5324.019 “Rise and

Shine” (with easy to clean lift-off hinge system)

solid plastic closed front seat with cover.

❏ American Standard #5321.110 EverClean

®

seat with Slow Close snap-off hinges.

❏ Alternate Seat:

❏ Supply with Stop:

CADET FloWise

™

RIGHT HEIGHT

™

ELONGATED

PRESSURE-ASSISTED TOILET 1.1 gpf / 4.2 Lpf

VITREOUS CHINA

CADET FloWise™ RIGHT HEIGHT™

ELONGATED PRESSURE-ASSISTED TOILET

1.1 gpf/ 4.2 Lpf

❏2467.100

• Vitreous china

• High Efciency, Ultra Low-consumption

(1.1 gpf/4.2 Lpf)

• EverClean

®

surface inhibits the growth of stain

and odor-causing bacteria, mold, and mildew on

the surface

• Meets EPA WaterSense

®

criteria

• Bowl rim at 16-1/2" for accessible applications

• Elongated bowl

• Pressure-assisted siphon jet ush action

• Fully-glazed 2-1/8" trapway

• 10 x 12" water surface area

• Close-coupled Flushometer tank*

• Metal chrome trip lever

• Speed Connect

®

tank/bowl coupling system

• Sanitary dam on bowl

• Two bolt caps

• 100% factory ush tested

• 12" Rough-in

❏ 2467.136 Same as above except with slotted

rim bowl for bed pan holding (White only)

❏3483.100 Bowl with two bolt caps

❏ Same as above, Universal Bowl 3483.001

❏ 3484.001 Bowl with slotted rim for bed pan

holding with two bolt caps (White only)

❏4142.100 Tank complete with

coupling components

Nominal Dimensions:

768 x 521 x 781mm (30-1/4" x 20-1/2" x 30-3/4")

Fixture only, seat and supply by others

Recommended working pressure range

25 psi - 80 psi

Alternate Congurations Available:

❏ 4142.601 Tank and tank cover only with tank

cover locking device

❏ 4142.801 Tank and tank cover only with right

hand trip lever

❏ 4142.901 Tank complete with right hand trip

lever and tank cover locking device

Compliance Certications -

Meets or Exceeds the Following Specications:

• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous

China Fixtures

• US EPA WaterSense

®

Specication for HET's

NOTES:

THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION

OF 305mm (12") FROM FINISHED WALL TO C/L OF OUTLET.

SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED

SEPARATELY.

*

DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.

IMPORTANT: Dimensions of xtures are nominal and may vary within the

range of tolerances established by ASME A112.19.2-2008 / CSH B45.1-08.

These measurements are subject to change or cancellation. No

responsibility is assumed for use of superseded or voided pages.

12"

(305mm)

30-1/4"

(768mm)

C/L OF OUTLET

FINISHED WALL

9"

(226mm)

1"

(27mm)

16-1/2"

(419mm)

18-1/2"

(470mm)

C/L OF SEAT POST HOLES

5-1/2" (140mm CENTERS)

13-3/4"

(347mm)

6"

(150mm)

FINISHED

FLOOR

30-3/4"

(781mm)

9-1/2"

(238mm)

20-1/2"

(516mm)

14"

(356mm)

*6"

(152mm)

*10"

(254mm)

SUPPLY

AS

REQ'D

5/8"

(16mm)

3"

(76mm)

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES

AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE

BUILDING FACILITIES - CHECK LOCAL CODES.

BARRIER FREE

Certified by

IAPMO R&T
