Pagina 1/13
27
26
22 14
23
14
14
23
23
9
3
7
4
3
20
13
1
6
21
12
4
15
16
16
11
11
25
18
17
19
5
2
2
15
3
10
4
10
8
2
15
24
10

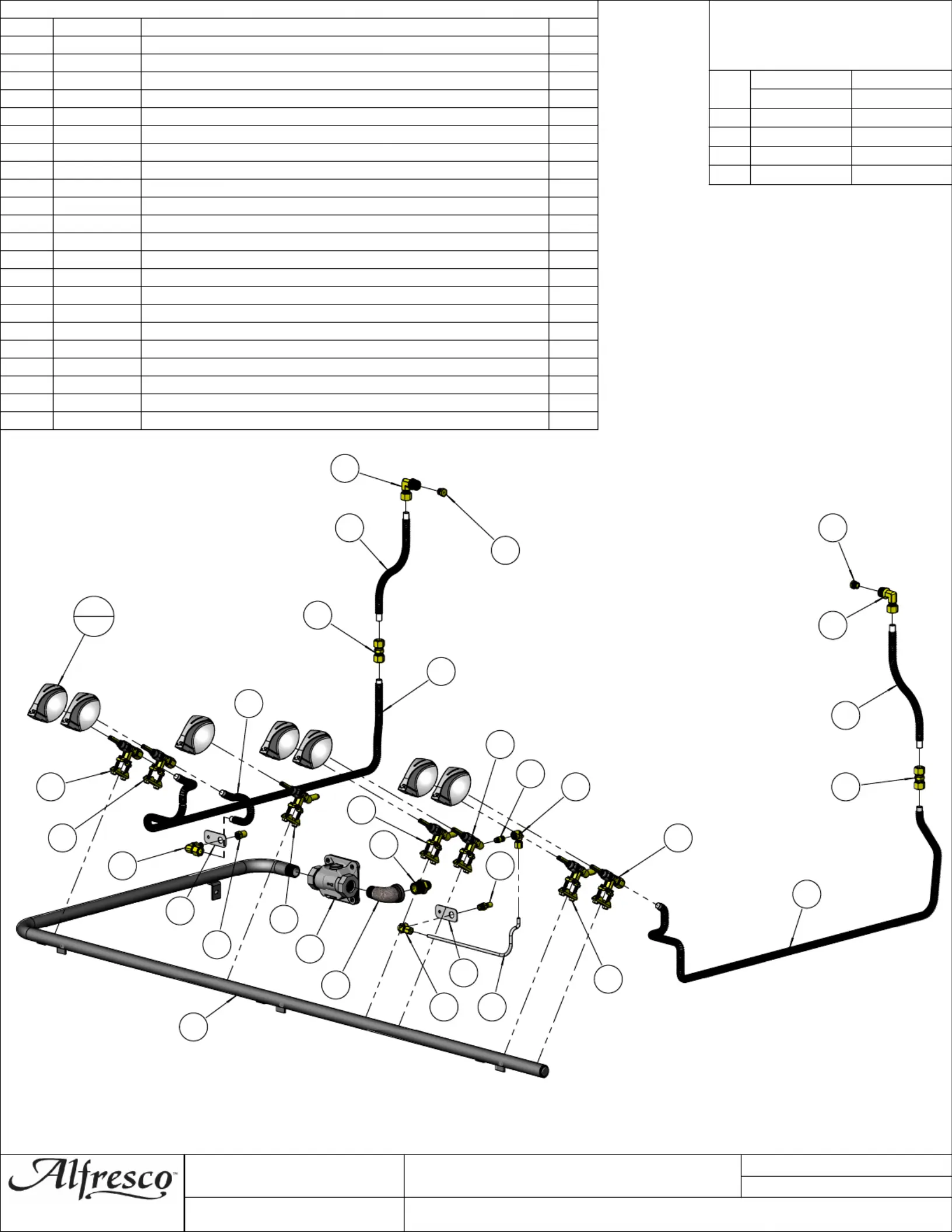

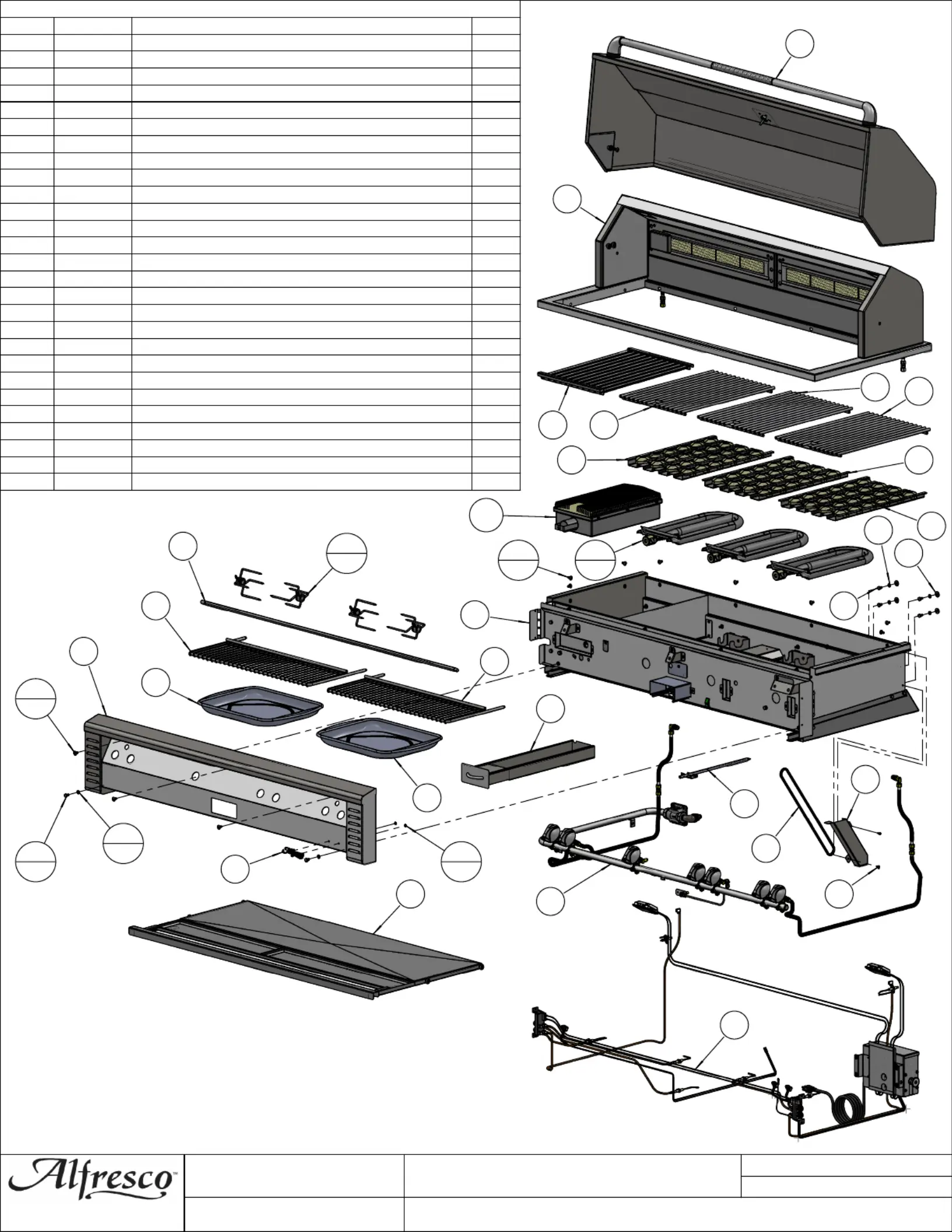

BILL OF MATERIALS
ITEM
PART N°
DESCRIPTION
QTY
1
100-1877
ALX2 - ROTISSERIE CHAIN COVER
1
2
200-0057
SCREW 1/4-20 X 1/2 - TRUSS HEAD - PHILPS
15
3
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
10
4
200-0089
BOLT - HEX HEAD 1/4-20 x 1/2" L
10
5
200-0093
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (LOGO)
2
6
200-0111
SCREW 8-18 X ½ - SELF TAP - 410 SS
4
7
200-0244
WASHER, FLAT 1/4 TYPE B - REGULAR, SS
4
8
290-0031
LOGO - ALFRESCO
1
9
290-0038
BURNER - GRILL - "U" SHAPE
3
10
290-0052
ALFRESCO SEAR ZONE™ BURNER ASSEMBLY
1
11
290-0059
ROTISSERIE DRIP PAN
2
12
290-0096
FORK ASSEMBLY
4
13
290-0116
CHAIN - ANSI # 25 - ¼" PITCH - .13" Ø X 1/8" ROLLER
1
14
290-0124
GRILL 30" BBQ - 12¾" WIDE - SS
3
15
290-0176
ALX2-56 BFG ROTISSERIE SPEAR
1
16
290-0315
ALX2-30 WARMING RACK - SS
2
17
510-0468
ALX2-56BFG MANIFOLD ASSEMBLY
1
18
510-0490
ALX2-56 / 56SZ - GREASE TRAY ASSEMBLY
1
19
510-0497
ALX2-56 BFG - ELECTRICAL COMPONENTS
1
20
510-0504
ALX2 - SMOKER BURNER ASSEMBLY
1
21
510-0518
ALX2 - SMOKER TRAY ASSEMBLY
1
22
510-0521
ALX2 - SEARZONE™ GRILL ASSEMBLY
1
23
510-0522
ALX2 - BRIQUETTE TRAY ASSEMBLY
3
24
510-0580
ALX2-56BFG - FIREBOX ASSEMBLY
1
25
510-0581
ALX2-56 BFG - FRONT PANEL MAIN ASSEMBLY
1
26
510-0582
ALX2-56 BFG BACK HOOD + RIM ASSEMBLY
1
27
510-0585
ALX2-56 BFG FRONT HOOD - MAIN ASSEMBLY
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0091
SHEET 1 OF 1
ALX2-56 BFG
ALX2-56 BFG - BUILT IN - 2011 MODEL
LAST SAVED BY: »» adrian «« Thursday, November 21, 2013 3:24:26 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
8/31/2011 1:55:19 PM
16
7
17
17
11
20
8
6
2 20
11
2
8
4
17
19
9
12
19
19
21
5
14
3
13
7
10
9
5
22
1
15
18
BILL OF MATERIALS
ITEM
PART N°
DESCRIPTION
QTY
1
100-0913
30" & 56" BFG BBQ SMOKER GAS LINE
1
2
100-0917
ROTISSERIE GAS LINE EXTENSION - 3/8"Ø X 8" - SS
2
3
100-0917
SEAR ZONE™ GAS LINE (8"L x 3/8" Ø - SS. FLEX TUBE)
1
4
100-0949
ROTISSERIE GAS LINE (36"L x 3/8" Ø - SS. FLEX TUBE)
1
5
100-1067
ALX2- SMOKER & SZ™ ORIFICE BRACKET
2
6
100-1949
ROTISSERIE GAS LINE (36"L x 3/8" Ø - SS. FLEX TUBE)
1
7
200-0274
ELBOW 90°- CAST IRON - 1/2" FPT x 1/2" MPT
1
8
220-0151
COUPLING 3/8" x 3/8" - COMPRESSION - BRASS
2
9
220-0273
ELBOW 90° - 1/8" FPT x 3/16" COMP
2
10
220-0275
NIPPLE - 1/2" MPT X 3/8" OD FL
1
11
220-0276
ELBOW .375 MPT x .375 COMP
2
12
220-0277
NIPPLE 1/8"MPT x 1/16"MPT
1
13
220-0280
REGULATOR GAS - MAXITROL RV48CL440002
1
14
220-0293
ELBOW 3/8-27 UNS x 3/8" COMP
1
15
220-0349
MANIFOLD - ALX2-56" BFG
1
16
290-0030
KNOB BBQ - ALFRESCO "A" LETTER
7
17
290-0041
GAS VALVE - STRAIGHT - WITHOUT ORIFICES
3
18
290-0066
GAS VALVE - ANGLED - ORIFICE: INT= 0.95 mm / EXT=NONE
1
19
SEE NOTE
GAS VALVE - ANGLED WITH ORIFICE >>> SEE NOTE
3
20
SEE NOTE
ORIFICE - IR ROTISSERIE UNIT (SEE NOTE FOR SIZING)
2
21
SEE NOTE
ORIFICE - SEAR ZONE™ >>> SEE NOTE
1
22
SEE NOTE
ORIFICE - SMOKER UNIT >>> SEE NOTE
1
NOTE:
ORIFICE OR VALVE ASSEMBLY
TO CHANGE ACCORDING TO FUEL
SUPPLY: NATURAL GAS OR LIQUID
PROPANE
ITEM
NG GAS
LP GAS
PART # PART #
19
290-0310 290-0311
20
220-0285 220-0286
21
220-0289 220-0290
22
220-0313 220-0314
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0468
SHEET 1 OF 1
ALX2-56BFG
ALX2-56BFG MANIFOLD ASSEMBLY
LAST SAVED BY: »» adrian «« Wednesday, August 17, 2011 2:26:10 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
8/17/2011 9:30:13 AM
