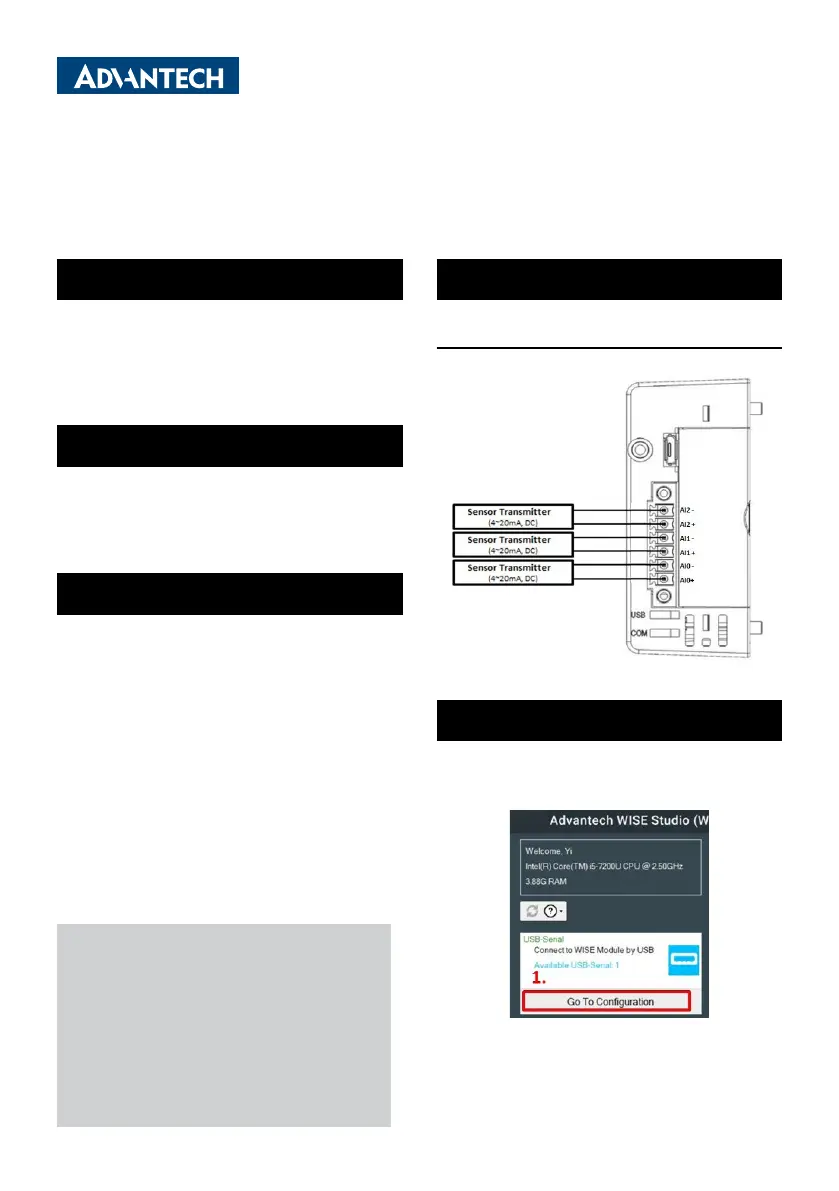

WISE-2211 Startup Manual 1

Thank you for purchasing the WISE-2211 module. This

quick start guide is intended to help you deploy your new

module. The guide contains basic information on the power

and application wiring.

Should you require additional instructions, please refer to

the user manual.

WISE-2211 is self-powered sensor node, power source

comes from an analog input which is connected to a

4~20mA sensor transmitter. In other words, WISE-2211

measures data and gets power current from a connected

sensor transmitter.

• 1 x WISE-2211 module

• 1 x Mounting bracket

• 1 x Quick start manual

• 1 x China RoHS declaration (UA series only)

*Antenna should be ordered as per required frequency

range.

WISE-2211

LPWAN Self-powered Sensor Node

Startup Manual

Analog Input current: Direct Current

(4~20mA)

1. Connect the module to your computer via the micro-

USB port.

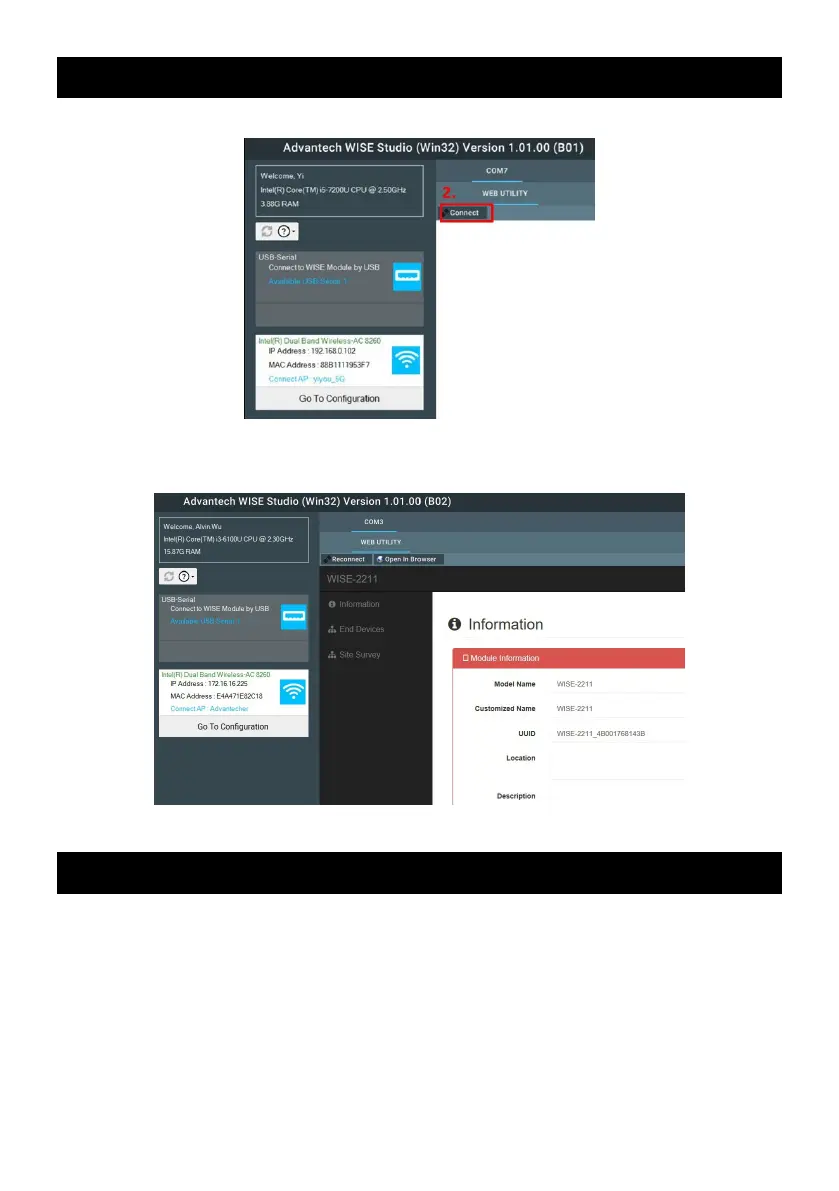

2. Open WISE Studio and click Go To Conguration.

I/O Pinout & Application Wiring Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service:

https://www.advantech.com/support/

This startup manual is for WISE-2211.

Part No. 2043221101

Printed in Taiwan

2nd Edition

Nov 2019

Input Power Requirements

Packaging List

Quick Start
