Pagina 1/6
PPC-MB-620 Startup Manual 1
Before installation, check to ensure that the following items
are included in the shipment:
1. 1 x PPC-MB-620 mini-ITX motherboard
2. 1 x COM cable (1-to-4 DB9)
3. 1 x SATA cable
4. 1 x PPC-MB-620 startup manual
5. 1 x Warranty card
6. 1 x Thermal grease
7. 14 x COM port screws
8. 2 x M.2 packet screws
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Note 1:
FordetailedPPC-MB-620specications,refer
to the latest product information provided on the
Advantech website (PPC-600 model).
Note 2:
AcrobatReaderisrequiredtoviewPDFles.
This software can be downloaded from www.
adobe.com/Products/acrobat/readstep2.html
(Acrobat is a trademark of Adobe).
PPC-MB-620 Mini-ITX Motherboard with Intel® Core™ i9/
i7/i5/i3/Celeron® Processor, DP/HDMI, 5 x COM, 6 x USB,
3 x LAN, PCIe x16, and M.2 (M Key, B key and E Key)
Startup Manual

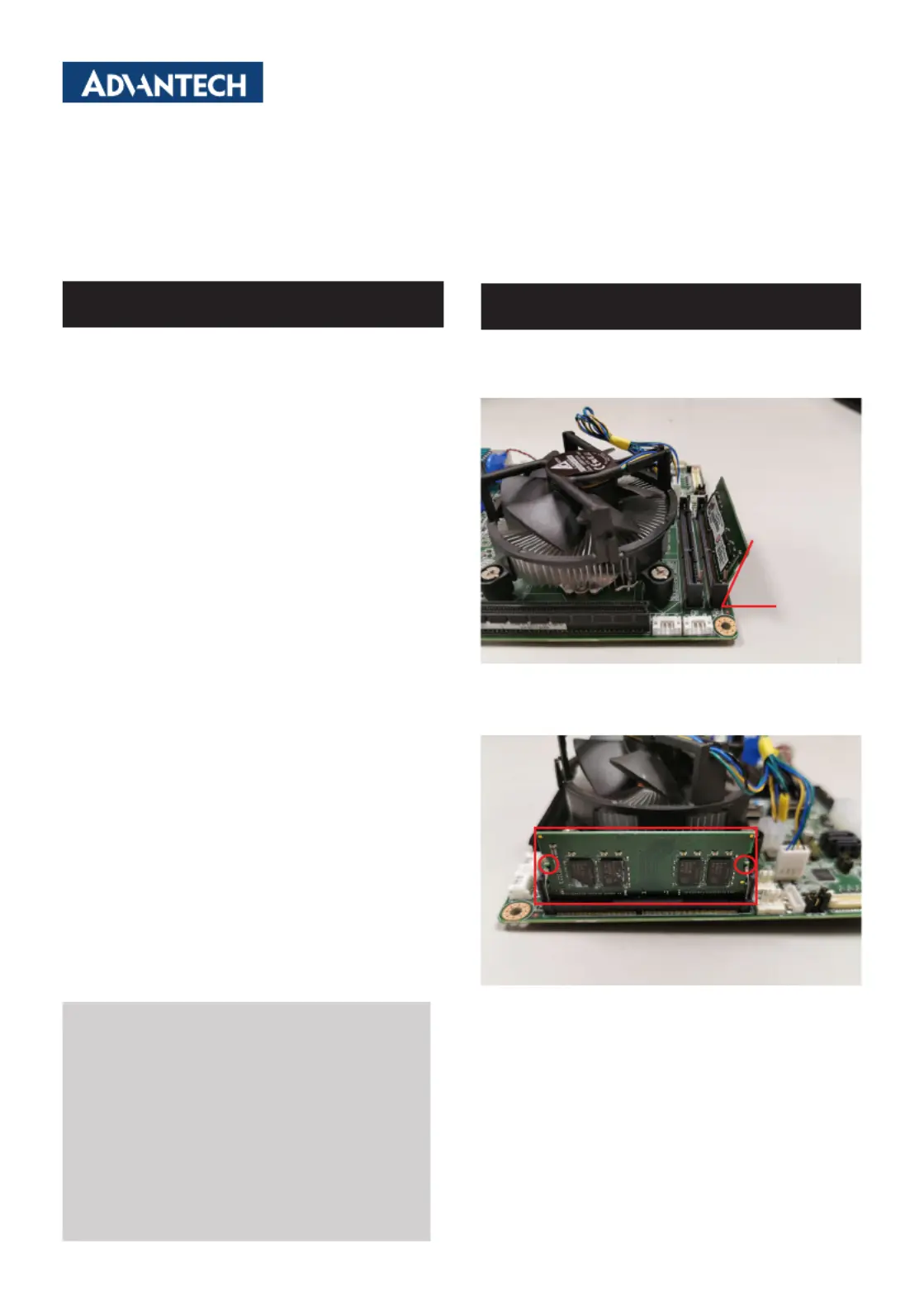

1. Insert the memory module into the memory slot at a 45
degree angle, as shown below. Ensure that the gold
ngersofthemodulearefullyinsertedintotheslot.
2. Once inserted, gently press the memory module into
the slot until the tabs snap into place, securing the
module in position.
45°
Installation Guide
Packing List
For more information about this or other Advantech
products, visit our website at
http://www.advantech.com
For technical support and service, visit our support
website at
http://support.advantech.com
This manual is for PPC-MB-620, Rev. A1.
Part No. 2044062000
Printed in China
Edition 1
March 2023
2 PPC-MB-620 Startup Manual
System
CPU
i9-12900E/
i9-12900TE
i7-12700E/
i7-12700TE
i5-12500E/
i5-12500TE
i3-12100E/
i3-12100TE
G7400E/
G7400TE
G6900E/
G6900TE
Core
Number
16/16 12/12 6/6 4/4 2/2 2/2
Max Speed
2.3GHz (Up to
5.0GHz)/
1.1GHz (Up to
4.8GHz)
2.1GHz (Up to
4.8GHz)/
1.4GHz (Up to
4.6GHz)
2.9GHz (Up to
4.5GHz)/
1.9GHz (Up to
4.3GHz)
3.2GHz (Up to
4.2GHz)/
2.1GHz (Up to
4.0GHz)
3.6GHz/
3.0GHz
3.0GHz/
2.4GHz
SmartCache 30/30MB 25/25MB 18/18MB 12/12MB 6/6MB 4/4MB
TDP 65W/35W 65W/35W 65W/35W 60W/35W 46W/35W 46W/35W
Memory
2 x 262-pin SODIMM DDR5, 4800 MHz , up to 32 GB (non-ECC )
Chipset
Q670E H610E
Ethernet
Controller
LAN1: 1Gb Intel i219LM (support AMT 16.0
only for i7 & i5);
LAN2: 2.5Gb Intel i226-LM
LAN1: 1Gb Intel i219LM (support AMT 16.0 only for i7
& i5);
LAN2: 2.5Gb Intel i226-LM
LAN3: 2.5Gb Intel i226-LM
Connector RJ45 x2 RJ45 x3
Rear I/O
USB 6 (USB 3.2 Gen 2) 6 (2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 2 x USB 2.0)
Ethernet 2 3
Display Port 1
HDMI 1
Audio 2 (Mic-in, Line-out)
Serial 2 (1 x RS-232/422/485, 1 x RS-232)
Internal
Connector
USB 3 x USB 2.0 1 x USB 2.0
SATA 2 x SATA 3.0 ( support RAID 0,1) 2 x SATA 3.0
Serial 3 x RS-232
TPM 1
GPIO 8-bit
Expansion
M.2
1 x slot (2280 M key) for storage (SATA & PCIe*4);
1 x slot (2230 E key) for wireless (PCIE & USB2.0)
1 x slot ( 3042 & 3052 B key) supports PCIE &
USB3.1 & USB2.0
1 x slot (3042 & 3052 B key) supports PCIE & USB2.0
PCIe x16
(Gen5)
1 x slot
Watchdog Timer
255timerintervals,congurableusingsoftware
Dimensions (W x H)
170 mm x 170 mm (6.69" x 6.69")
OS support
Microsoft® Win 10 IOT LTSC(64-bit)/Win 11, Linux
Specications
PPC-MB-620 Startup Manual 3

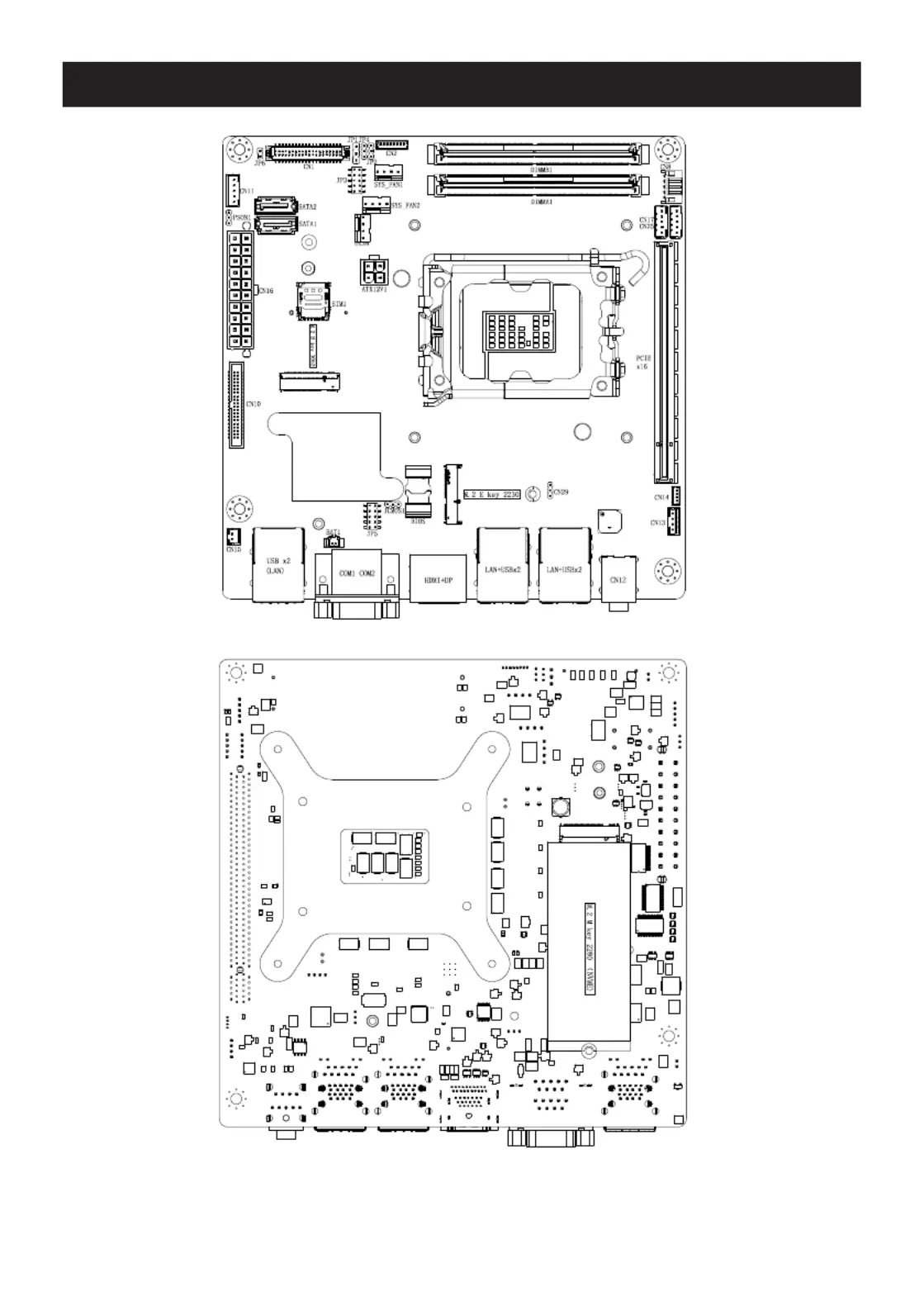

Board Layout: Jumper and Connector Locations
