PCM-3117 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 PCM-3117 module
• 1 Start-up manual
• 1 Signal cable 4P to 4P P/N: 1700001898
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
The PCM-3117 is PCI to ISA bridge module.
For other PCI-104 bus applications, PC104+ module should
be used. For all modules to be compatible, PCM-3117 is
the solution.
For OS limitations, users must install PCM-3117 first, then
install the OS, or the computer can not recognize PCM-
3117.
Introduction
PCM-3117 PCI to ISA Bridge Module
Startup Manual
• PCM-3117 PCI to ISA Bridge Module
• Compatible with PC/104 and PC/104+
• PCI-104 CPU module (PCM-3380) to control PC/104
peripheral (ISA bus)
• Supports Windows NT 4.0, Windows 98/2000/XP/SE
• Controller: ITE IT8888F
• Bus:PC/104(ISA) and PC/104+(PCI)
• Plug&Play:Supports Plug & Play automatic detection &
configuration
• PC/104expansion: 104-pin and 120-pin 16/32-bit PC104
/Plus module connector
• OperatingVoltage: +5 V only
• PowerConsumption:+5 @ 70 mA (Typical)
• Size/Weight:96 x 90 mm (3.8” x 3.5”), 90 g (0.198 lb)
• Environment:0 ~ 60 C (operation), -40 ~ 85 ° ° C
(storage)
• Humidity:0 ~ 90%
Specications
Features
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com/
This manual is for the
PCM-3117
series Rev. A1.
Part No. 2006311702
Printed in China
3rd Edition
September 2015
2 PCM-3117 Startup Manual
The module has a number of connectors and jumpers
that allow you to configure your system to suit your
application. The table below lists the function of each of
the jumpers and connectors:
Connector Table
CN1A: PC104 plus
CN1A PCI Interface signal
CN1B: PC104
CN1B ISA Interface signal
CN3: Extended of several signals
CN3
Pin1: PCI_ISANOGO#
Pin2: PCI_ISAGNT#
Pin3: PCI_ISAREQ#
Pin4: LPC_SERIRQ
Note: Users must use 1700001898 on CN3 of PCM-
3117 to connect with CN20 of PCM-3380F A2
version. This will be the cable for some ISA
signals because the PCM-3380 A2 version just
adds CN20, so PCM-3117 must use for PCM-
3380/3386 A2 version.

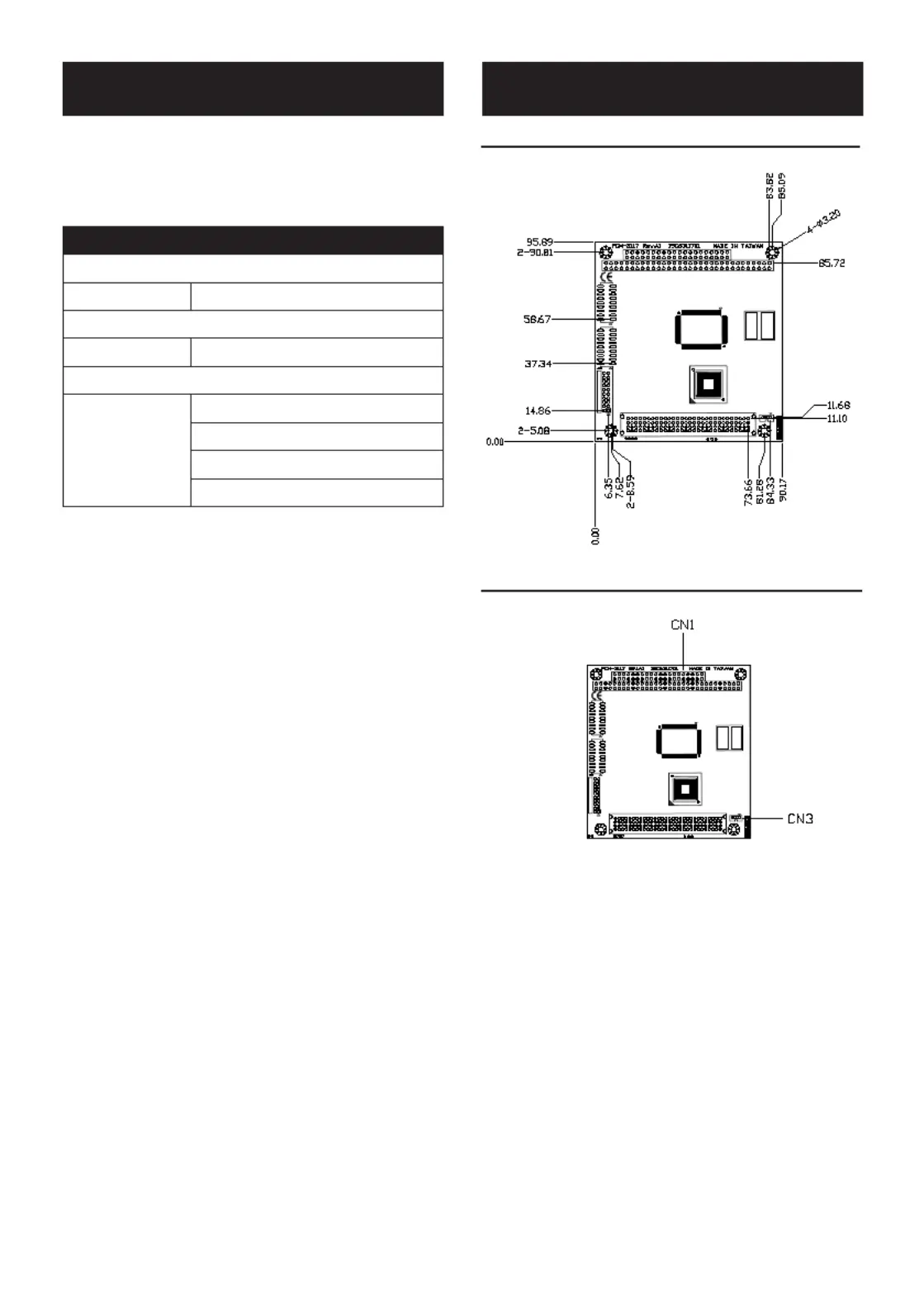

BoardDimensions
LocatingConnectorandJumpers
Connectors and Jumpers Mechanical Drawings
