PCM-29R1TX Startup Manual 1

Before installation, please make sure that you have:

•1 x mPCIe module

•1 x One Ethernet port I/O plate

•1 x Wired signal & power cable

•1 x Startup Manual

•1 x Warranty Card

If anything is missing or damaged, contact your distributor

or sales representative immediately.

Installation

PCM-29R1TX supports Embedded Automation PC UNO

series. Please contact Advantech for detail models.

Some PC may need to modify BIOS setting before installing

PCM-29R1TX as below:

•Chipset->SystemAgent(SA)Conguration->Graphics

Conguration->PrimaryDisplay[IGFX]

•Chipset->NorthBridge->IntelIGDConguration->Primary

IGFXBootDisplay[CRT]

•Chipset->NorthBridge->IntelIGDConguration-

>SecondaryIGFXBootDisplay[EFP]

Documentation/Software Support Guide

The Startup Manual is included in the package. The other

support documentation such as datasheet and drivers can

be accessed from Advantech’s website.

PCM-29R1TX 1-Port iLink(TX), Long Distant Display

Transmitter, RJ45

Startup Manual

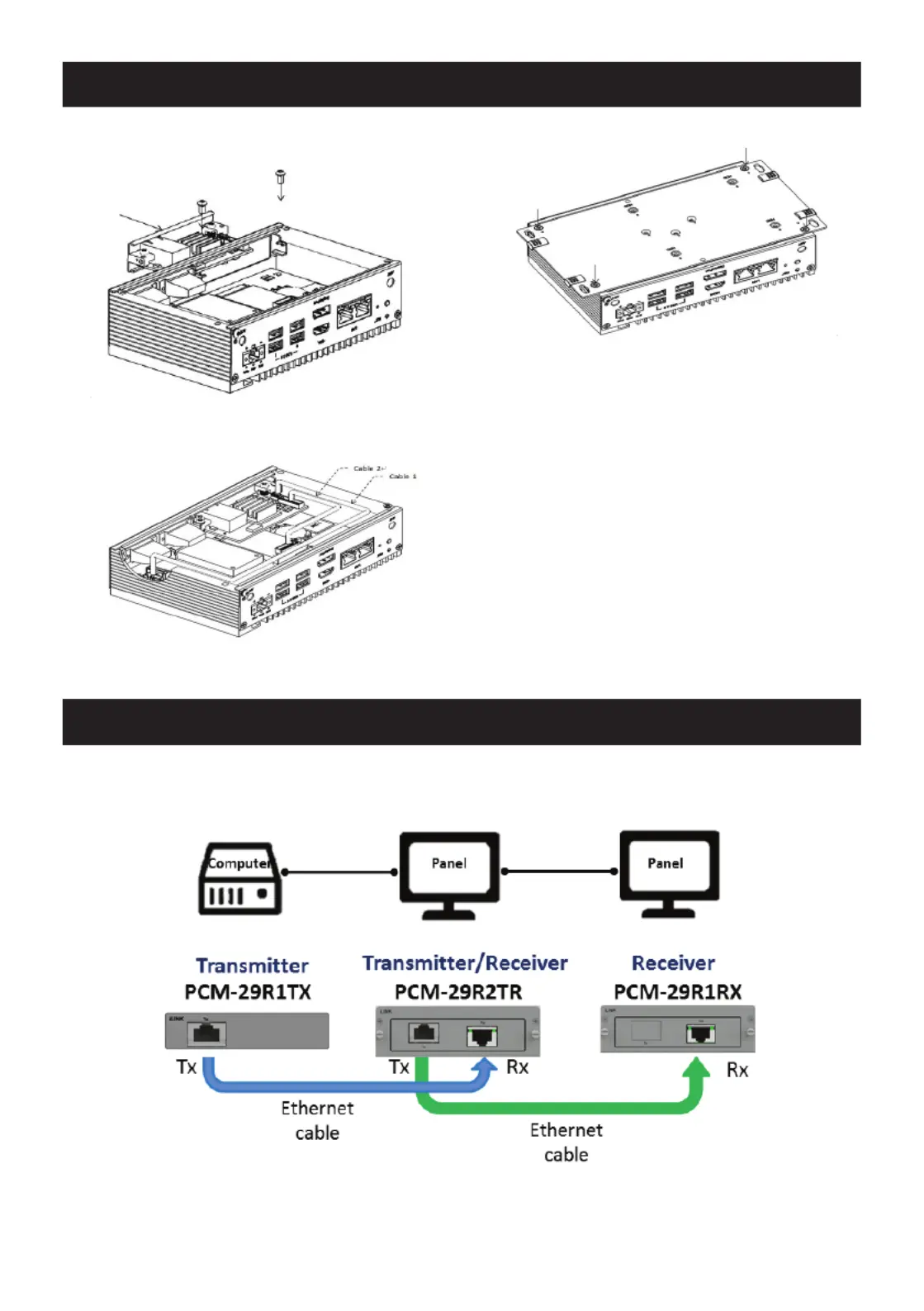

1. Remove the screws from the base plate and lift to

remove.

2. Insert the mini-PCIe card and secure the screws.

3. Remove the screws to remove the blank expansion

plate.

UNO Embedded Computer Installation

Packing List

FormoreinformationonthisandotherAdvantech

products, please visit our website at:

http://www.advantech.com

Fortechnicalsupportandservice,pleasevisitour

support website at:

http://support.advantech.com

This manual is for the PCM-29R1TX.

Part No. 200329R100

Print in China

1st Edition,

April 2017
