PCE-5B09-06 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCE-5B09-06 Startup Manual
2. M4*6*0.7 Round Screws (20 pcs) p/n: 1939000410
3. 2 Year Quality Warranty Card p/n: 2190000902
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard Functions
•PICMG 1.3 slots:
PCE-5B09-06 supports PCE-5xxx & PCE-7xxx CPU
boards
•PCIe slots:
PCE-5B09-06 supports one PCIe x 16 slot and one PCIe
x 4 slot
•32-bit PCI:
Six 32 Bit / 33 MHz PCI slots
•USB (2.0) support:
Four USB 2.0 ports pin headers
Mechanical and Environment
•Dimensions: 222.35 mm x 327.61mm
•Power supply voltage: +12 V, +5 V, -12 V, -5 V, +3.3 V,
+5 V SBY
•Power requirements: Refer to the CPU Board, add-on
Card & Peripherals
•Operating temperature: 0 ~ 60° C
•Weight: 0.43 KG (weight of board)
The table below lists the function of each of the jumpers and
connectors:
PCE-5B09-06 Backplane: 9-slot BP for 10-slot
Chassis, 1 PICMG 1.3, 2 PCIe, 6 32-bit PCI
Startup Manual
Connectors
LabelFunction
SHBA1 ~ SHBD1PICMG1.3 CPU board slot
PPCIEX4_1PCIe x 4 slot
PPCIEX16_2PCIe x 16 slot
PPCI1 ~ PPCI332 Bit / 33 MHz PCI Bus slot
P1PCI1 ~ P1PCI332 Bit / 33 MHz PCI Bus slot
EATXPWR1ATX 2.0 24-pin Power Connector
ATX12V1ATX 12V 4-pin Power Connector
PWR3V1 Extension 3.3 V 6-pin Power
Connector for PCI slots
EATX12V1 Extension ATX 12 V 8-pin Power
Connector
VOLT1Alarm board / CMM Power Connector
FAN1 ~ FAN7FAN Connector
FANDEC1FAN speed detector Connector
SMBUS1SMBus Connector for chassis monitor
SMBUS2SMBus Connector for chassis monitor
JFP1Power and Reset button Connector
IPMB1IPMB Connector
USB12Two USB port pin header
USB34Two USB port pin header
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/ePlatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the PCE-5B09-06 series Rev.A1
Part No. 20065B0910
Printed in China
1st Edition
March 2012

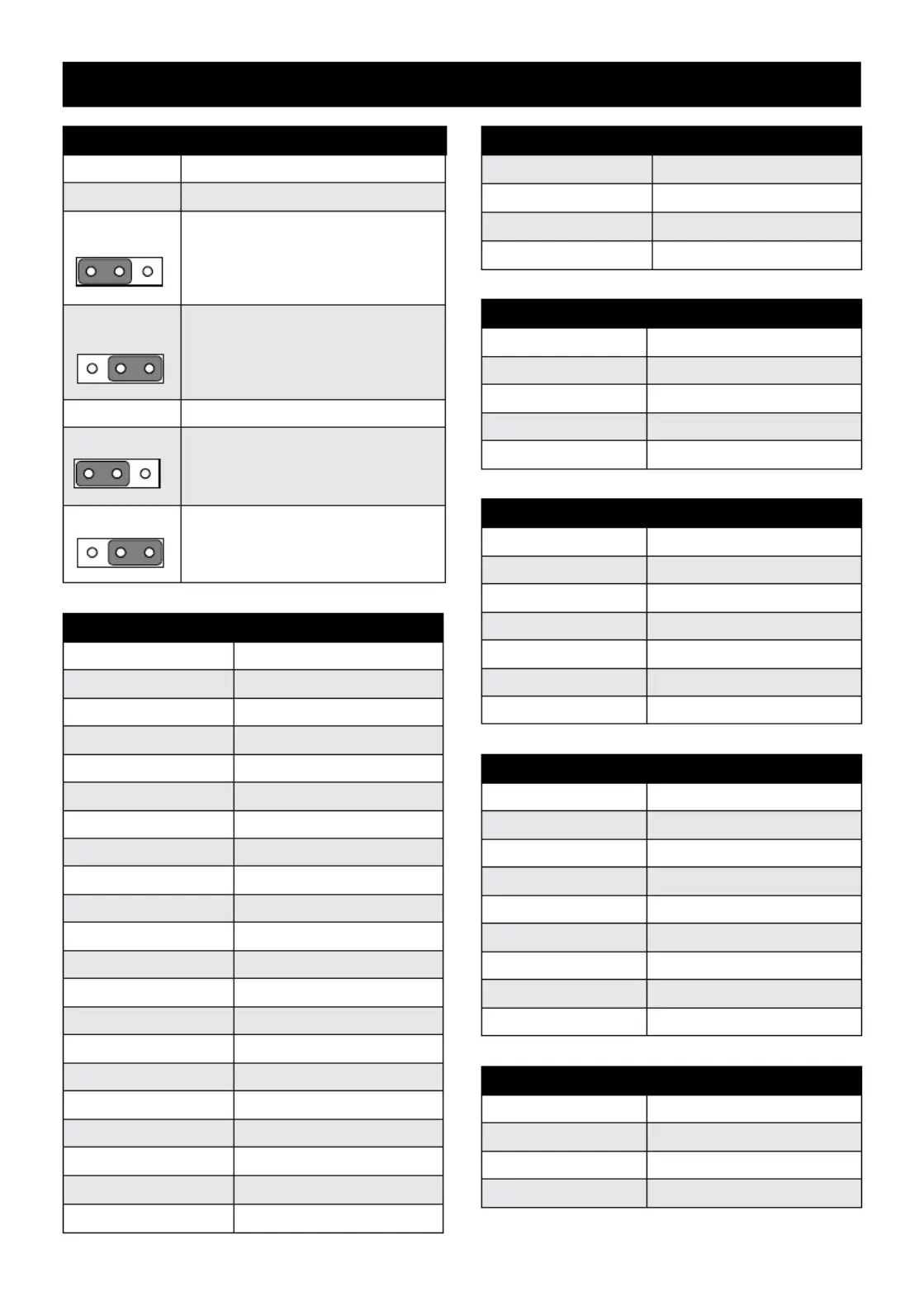

Connectors & Jumpers
Specications
