PCA-AUDIO-HDA1E Startup Manual 1

PCA-AUDIO-HDA1E

7.1 Channel Audio Extension Module

Startup Manual

Before you begin installing your card, please make sure

that the following materials have been shipped:

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Standard Functions

Mechanical

• Dimensions: 47.5 mm x 80.74 mm

Packing ListSpecifications

• PCA-AUDIO-HDA1E Audio Extension Module x 1

• HD Audio Cable x 1p/n:1701120251

• 2 years quality warranty card x 1p/n:2190000902

• Startup manual x 1

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the PCA-AUDIO-HDA1E Series

Rev. A1.

Part No. 200200HD00

Printed in China

1st Edition

Apr. 2008

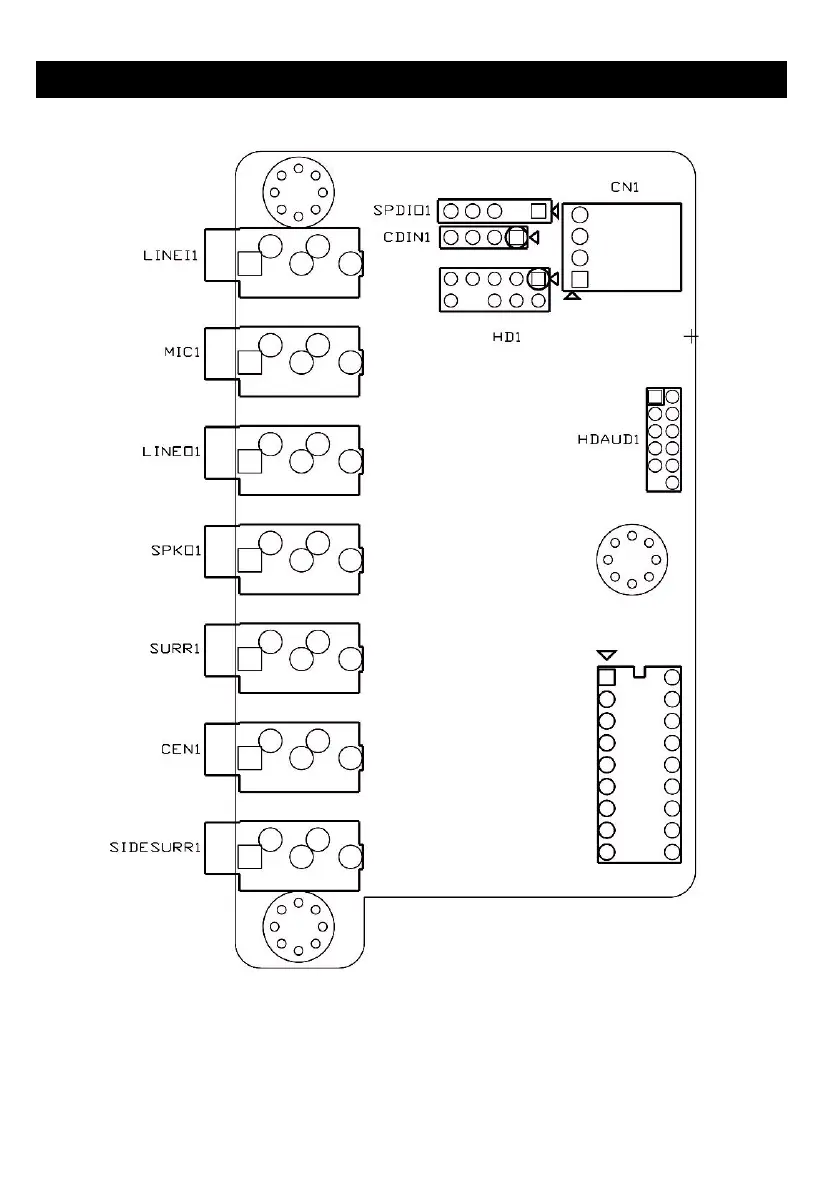

#Audio OutputBracket PrintingRear Jack Color

1Line-inLINEBlue

2MIC-inMICPink

3Front-outFRONTGreen

4SPK-outSPEAKGreen

5Back Surround-outREARBlack

6Subwoofer / Center-outSUB CENBlack

7Rear-outSIDEBlack

PCA-AUDIO-HDA1E 7.1 Channel Audio Extension Module
