Fast and easy on the web:

www.advantech.com

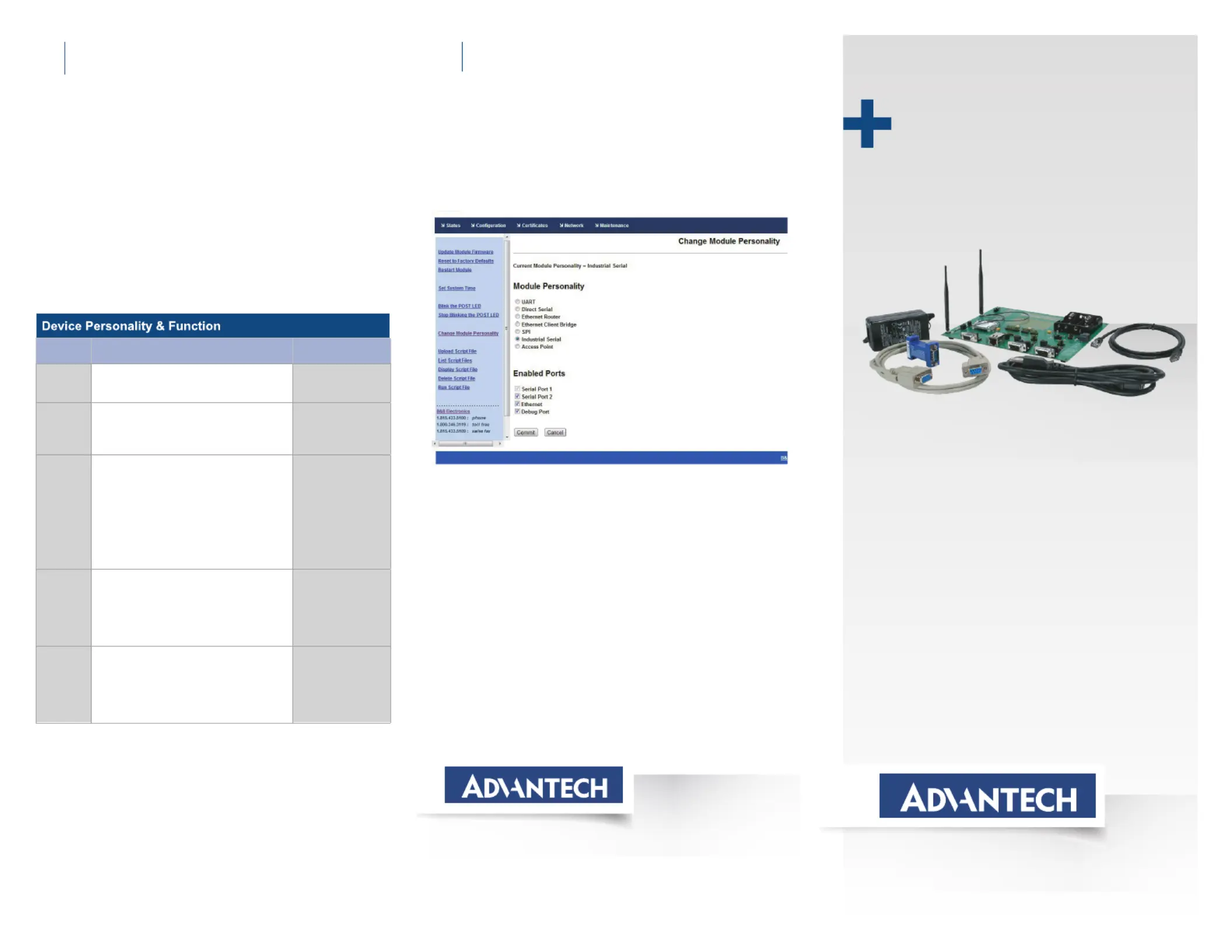

QUICK START

GUIDE

Device personalities,

configuration and set-up

Change module personality

8

9

Document Number: 710-10086-00_r4_WLNN-EK-DP551_0219qsg

WLNNA Series Evaluation Kit

Design & Development

PersonalityDescriptionModel# Series

UART

Serial device server with LVTTL I/O. Supports

dual UART, debug port, single Ethernet,

802.11a/b/g/n. Ethernet interface is a client.

WLNNA-AN-DP551

Direct

Serial

Serial device server with control signals to

support external RS232/422/485 drivers. Support

dual serial ports, debug port, single Ethernet,

802.11a/b/g/n.

WLNNA-SE-DP551

Ethernet

Router

Ethernet NAT3 router. Built-in DHCP server on

Ethernet port supports multiple Ethernet slients

on the Ethernet interface. Includes rule-based

Firewall and Port Forwarding.

Ethernet interface is set as a router. Suitable for

applications where there are multiple Ethernet

clients on the Ethernet network.

Also supports dual UARTs, debug port,

802.11a/b/g/n.

ABDNA-ER-DP55x

ABDNA-ER-IN501x

WLNNA-ER-DP551

Ethernet

Client

Bridge

Ethernet bridge designed to connect wireless

(802.11a/b/g/n) to an existing Ethernet port.

Suitable for applications where there is a single

Ethernet client to be connected to a wireless

network.

Also supports dual UARTs, debug port.

ABDNA-ER-DP55x

ABDNA-ER-IN501x

WLNNA-ER-DP551

These units can easily be

converted to bridge-mode

using AMC templates.

Industrial

Ethernet

Ethernet NAT3 router. Built-in DHCP server on

Ethernet port supports multiple Ethernet clients

on the Ethernet interface. Includes rule-based

Firewall and Port Forwarding. Also supports dual

UARTs, debug port, 802.11a/b/g/n.

ABDNA-ER-IN501x

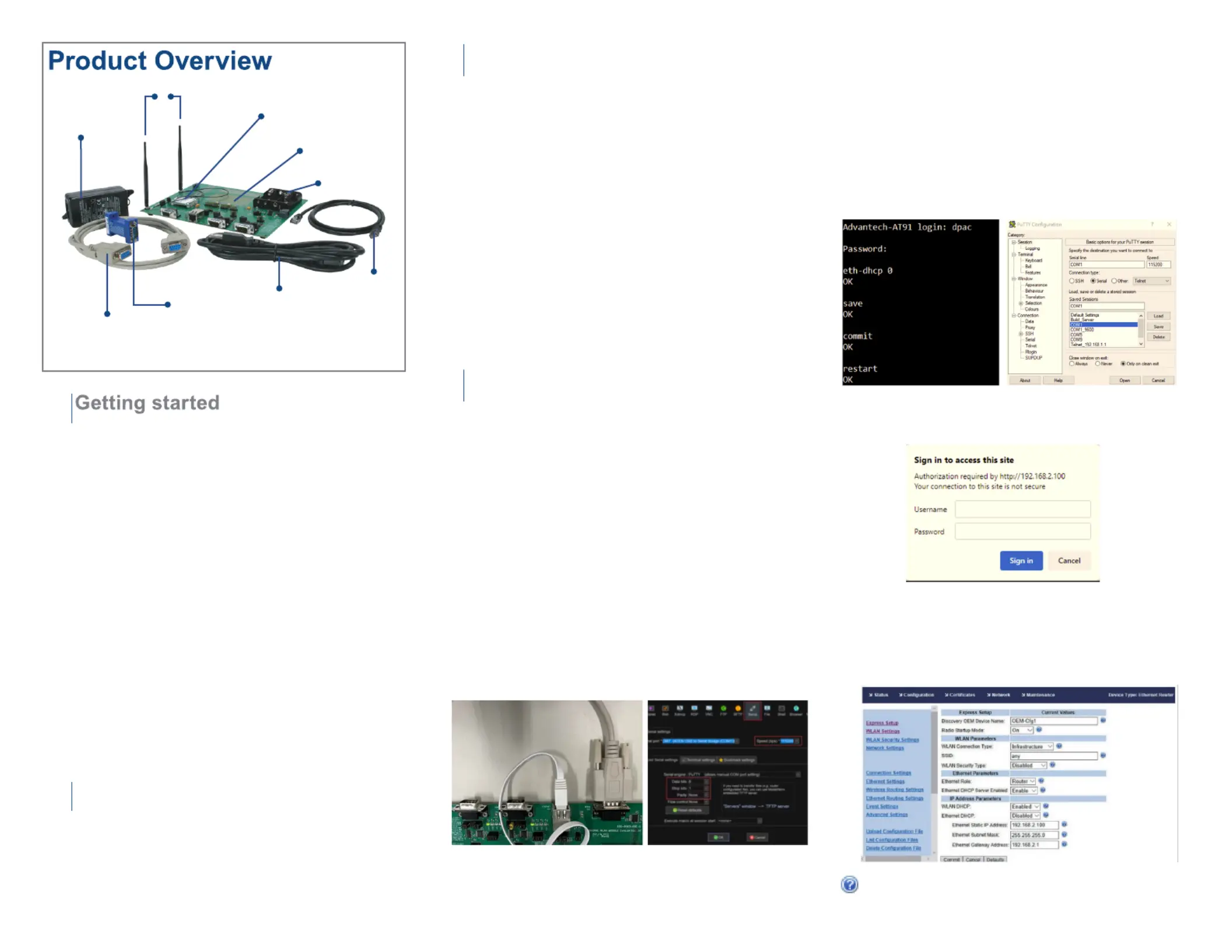

Model WLNNA-EK-DP551

(1) Airborne Enterprise Module Evaluation Circuit Board

Assembly (“EVB”)

(1) Airborne WLNN-EK-DP551 module (mounted to EVB)

(1) 5VDC power supply, 2.1mm barrel jack, cable

(2) 2dBi, 2.4GHz/5Ghz, 50 Ohm, omni-directional antenna

(1) DB9/-DB9 serial cable (null modem)

(1) USB to serial adapter (Model# 232USB9M-LS)

(1) CAT5 Ethernet cable

(1) Quick Start Guide

Before you begin, be

sure you have the following:

The WLNNA Series EVB can support all device

personalities available within the Advantech product line.

A device personality is a specific configuration of the

Airborne™ device which performs a certain function.

Examples include Ethernet Router, Serial Device Server

etc. The EVB is shipped with the default personality set

as an Industrial Serial Devices Server.

Changing the personality to match your application is the

first thing you should do when working with the EVB.

It is important to select the appropriate personality. The

following table outlines the personalities and their

specific functionality:

The Change Module Personality web page displays

theavailable device personalities.

After selecting the appropriate personality, you must

press the Commit button and restart the module to save

and apply the change.

Note: The web interface is context sensitive. Not all of the fields

will be visible without a context change.
