MIO-5373 Startup Manual 1

Please ensure the following items have been shipped

before installing your board:

•1 x MIO-5373 SBC

•1 x Startup Manual (P/N: 2046537301)

•1 x SATA Cable 30 cm/11.8 in (P/N: 1700006291)

•1 x SATA Power Cable 35 cm/13.7 in (P/N: 1700018785)

•1 x Audio JACK*3 Cable 20 cm/7.87 in (P/N: 1700019584)

•1 x COM RS-232 Cable 20 cm/7.87 in (P/N: 1700030404-

01)

•1 x MIO-5373 Heatsink for 0 ~ 60 °C (32 ~ 140 °F)

(P/N: 1960091427N001)

•1 x MIO-5373 Heatsink for -40 ~ 85 °C (-40 ~ 185 °F)

(P/N: 1960091427N011)

•1 x Mini Jumper (P/N: 9689000002)

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note1: For detailed contents regarding MIO-5373,

please refer to information on the support web-

site: http://support.advantech.com.tw/.

Note2: AdobeReaderisrequiredtoviewanyPDFle.

Adobe Reader can be downloaded at: http://get.

adobe.com/tw/reader/otherversions/. (Adobe is

the trademark of Adobe Systems Incorporated.)

MIO-5373 3.5”MI/O-Compact SBC, 8th Gen. Intel® Core™

U-series (i7/i5/i3/Celeron®), DDR4, eMMC, HDMI, DP, 48-bit

LVDS, 2 x GbE, M.2 B-key 2280, DC-in 12-24V, & iManager

Startup Manual

General

•CPU:

- Intel® Core™ i7-8665UE (Quad-Core, 1.70 GHz)

- Intel® Core™ i5-8365UE (Quad-Core, 1.60 GHz)

- Intel® Core™ i3-8145UE (Dual-Core, 2.20 GHz)

•System memory:

Dual Channel/SODIMM DDR4-2400 MT/s, up

to 32 GB

•BIOS:AMI EFI 256Mbit

•Watchdog timer: 65536 level, 0~65535 sec

•TPM 2.0

•iManager 3.0: Yes

•Expansion interface:

- M.2:

1 x M.2 E-key 2230

1 x M.2 B-key 2280 (SATA or NVMe PCIex2), 3042 LTE

module (support USB 2.0 only), optional M-key 2280

NVMe PCIe x4.

- MI/O Extension connector: 4 x PCIe x1, 1 x PCIe x4,

USB 2.0, LPC, SMBus, Line-out, and 12V/5V Power

supply

•Battery: Lithium 3 V/210 mAH

•Audio:SupportsHighDenitionAudio(HD),line-in,line-

out, and Mic-in

Display

•Controller: Intel® WHL-U SoC integrated, HDMI display

output ALC-888S for 48-bit LVDS display output

•Maximum resolution:

LCD:

- LVDS Dual Channel 48-bit up to 1920x1200

- Option eDP 1.4 up to 4096x2304@60 Hz

HDMI/DP:

- 1 x Port HDMI 1.4 up to 4096x2160@30/24 Hz

- 1 x Port DP 1.2 up to 4096x2306@60 Hz

•Multiple display: Triple simultaneous displays by 48-bit

LVDS/eDP+HDMI+DP

Ethernet Interface

•Speed: 10/100/1000 Mbps

•Controller: GbE1 - Intel i219, GbE2 - Intel i210-AT

•Connector: RJ45 x 2

I/O

•Internal I/O: 2 x SATA 6 Gb/s, 2 x USB 2.0, 1 x

RS232/422/485, 16-bit GPIO, Inverter, SMBus, I2C*, HD

Audio, LVDS, and System FAN

•Rear I/O: 4 x USB 3.1, HDMI, DP, 2 x RJ-45, 1 x

RS232/422/485, 1 x DC-Jack (*optional)

•MI/O expansion: 4 x PCIex1, 1 PCIe x4, USB 2.0, LPC,

SMBus, Line-out, and 12 V/5 V Power supply

•Power connector type: Default support 2 x 2 pin ATX

power connector, DC Jack is supported by request

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/

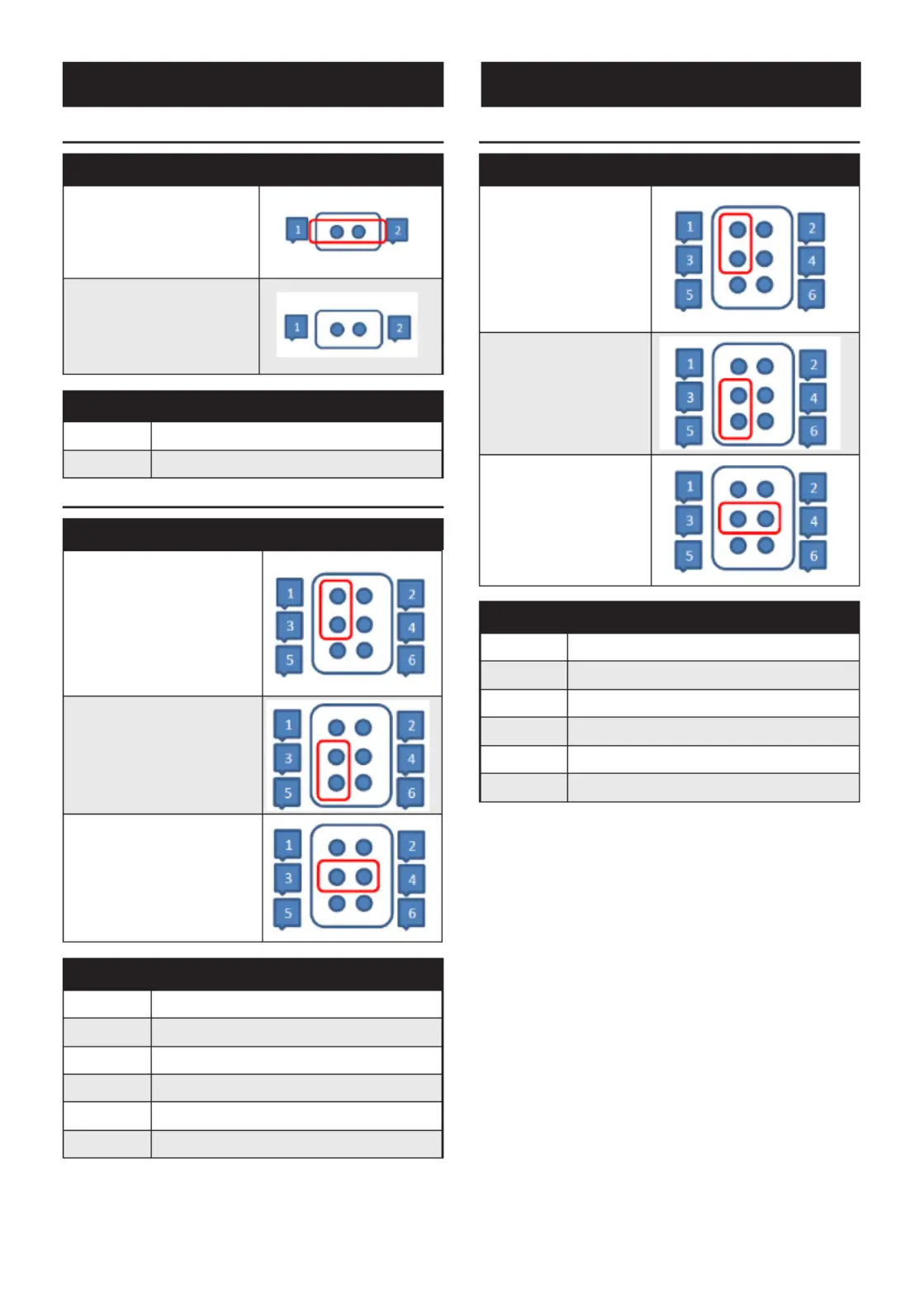

This manual is for MIO-5373.

Part No. 2046537301

Printed in China

2nd Edition

November 2020
