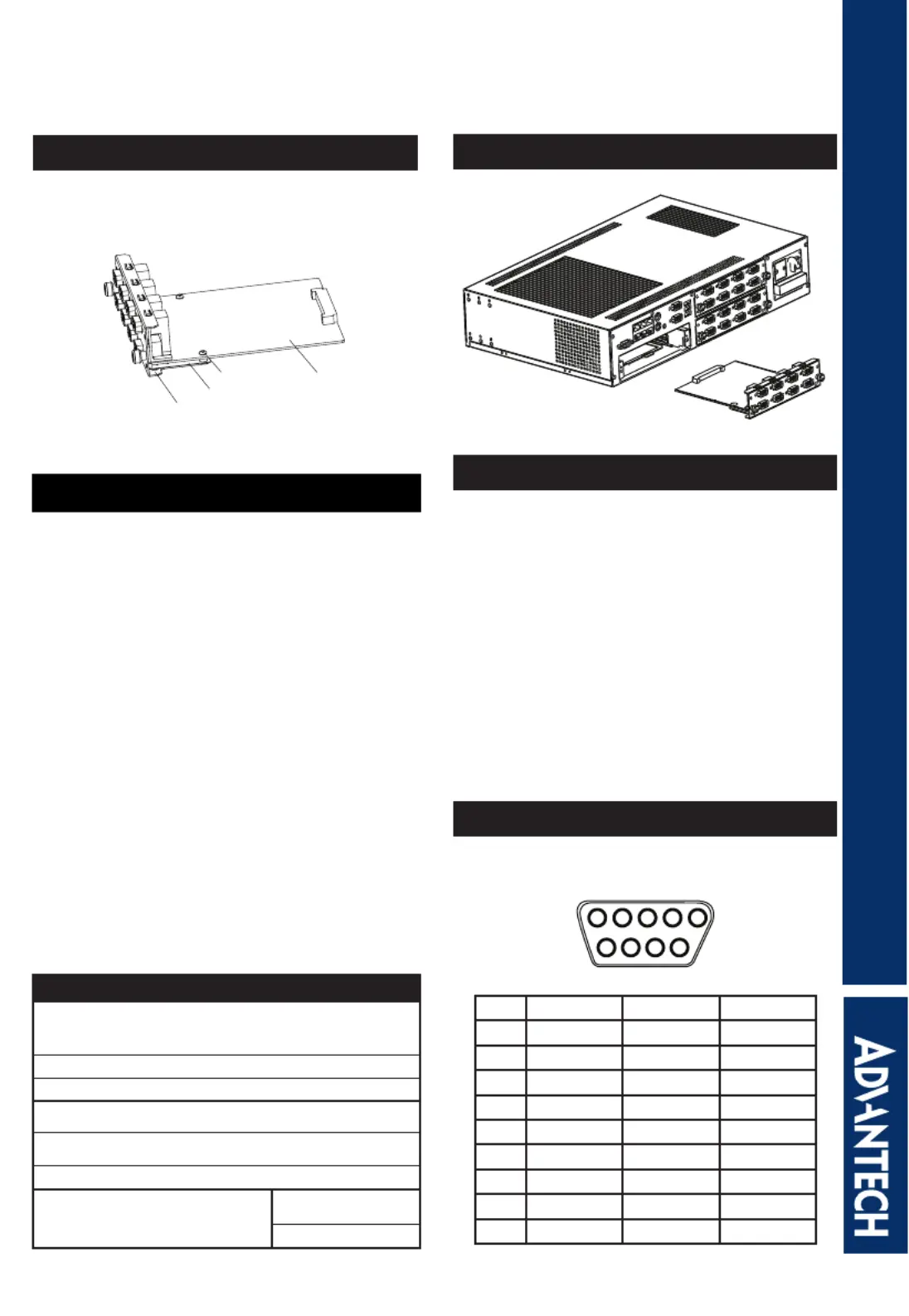

STARTUP MANUAL

1 Startup Manual

ECU-P1618D/1628D

8-port RS-232/422/485 with and without port-to-port Isolation for UNO-4673A/4683 and ECU-4784

Packing List

Before installation, make sure that you have the ECU-

P1618D/1628D suit which includes the card and panel

as below.

Diagram

iationOverview

ECU-P1618D/1628D are 8 serial ports cards, with the

following specifications::

8-port RS-232/422/485

Automatic RS-485 data flow control

2,000 V

DC

Isolation Protection (ECU-P1628D)

IRQ: All use the same IRQ assigned by PCI Bus

Data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Parity: None, Even, Odd

Baud-rate (bps):

–RS-232: 50~115.2 k

–RS-422/485: 50~921.6 k

Transmission Distance: 1000 m (RS-422/485)

Data Signals:

–RS-232: DCD,RxD,TxD,DTR,GND,DSR,RTS

,CTS,RI

–RS-485: Data+, Data-, GND

–RS-422: Tx+, Tx-, Rx+, Rx-, GND

Installation

The ECU-P1618D/1628D are expansion cards for

the UNO-4673A/4683 and ECU-4784 which has 3

expansion slots, the ECU-P1618D/1628D can be

plugged into any of the 3 slots in the UNO-4673A/4683

and ECU-4784. Follow these steps to integrate into the

UNO-4673A/4683 and ECU-4784:

Select one of the slots: unscrew the two screws on

the blank panel of the slot then remove the blanking

plate.

Plug the ECU-P1618D/1628D into the selected slot

of the UNO-4673A/4683 and ECU-4784 carefully

and fix it by the two screws on the panel.

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com.tw/eservice

This manual is for ECU-P1618D/1628D

Part No: 2003SP05001st Edition

April 2016

Bracket panel

Insulation mylar

Screw

Plug in card

If anything is missing or damaged, contact your

distributor or sales representative immediately.

12345

6789

PinRS-232RS-422RS-485

1DCDTX-Data-

2RxDTX+Data+

3TxDRX+

4DTRRX-

5GNDGNDGND

6DSR

7RTS

8CTS

9RI

ECU-P1618D/1628D serial ports COM1~COM8

Pin Assignment
