MIO-4370 Startup Manual 1
Before you begin installing your system, please make sure
that the following items have been shipped:
1. 1 x MIO-4370 SBC
2. 1 x USB 2.0 Cable 20cm (P/N: 1700030406-01)
3. 1 x Audio Cable 20cm (P/N: 1700019584-01)
4. 2 x COM Cable 20cm (P/N: 1700030404-01)
5. 1 x Startup Manual (P/N: 2046437000)
6. 1 x Screw Kit (3 x M3x5L screws for the M.2 module, 4
sets of screws and stand-o)
7. 1 x Jumper Kit (10 x Jumpers)
8. 1 x WISE-DeviceOn Package
9. 1 x McAfee/Acronis Package
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: For detailed contents regarding MIO-4370,
please refer to information on the support web-
site: https://www.advantech.com/en/support.
Note 2: Adobe Reader is required to view any PDF le.
Adobe Reader can be downloaded at: https://get.
adobe.com/reader/otherversions/ (Adobe is the
trademark of Adobe Systems Incorporated.)
MIO-4370
12th/13th Gen. Intel
®
Core™ Processor (LGA1700
Socket Type), 4" EPIC SBC, DDR5, Dual HDMI,
eDP, 2 x 2.5GbE with TSN, 4 x USB 3.2, CAN Bus,
TPM
General
• CPU:
- Intel
®
Core™ i9-12900TE (16 Cores / 24 Threads, up to
4.8 GHz)
- Intel
®
Core™ i7-12700TE (12 Cores / 20 Threads, up to
4.6 GHz)
- Intel
®
Core™ i5-12500TE (6 Cores / 12 Threads, up to
4.3 GHz)
- Intel
®
Core™ i3-12100TE (4 Cores / 8 Threads, up to
4.0 GHz)
• Chipset: R680E/H610E
• System memory: DDR5-4800 up to 32GB, SODIMM,
Single Channel
• BIOS: AMI UEFI 256Mbit
• Watchdog timer: 65536 level, 0~65535 sec (Multi-level
WDT)
• TPM: Support
• Battery: Lithium 3V/220mAH
• Audio: Supports High Denition Audio (HD), Line-in, Line-
out, and Mic-in.
Expansion Interface
• 2 x M.2 M-Key (Chipset: R680E ) or 1 x M.2 M-Key (Chip-
set: H610E) for 2280 module (PCIe Gen 4 x4)
• 1 x M.2 E-Key for 2230 module (PCIe x1, USB 2.0)
• 1 x M.2 B-Key (Chipset: H610E only) with SIM slot for
3042 module (USB 2.0 only)
Display
• Controller:
- Intel
®
UHD Graphics 770 with 32 Execution Units
- Intel
®
UHD Graphics 730 with 24 EUs (i3-12100TE only)
• Maximum resolution:
- LCD: 1 x eDP 1.4b, up to 5120 x 3200 @ 60Hz, 24bpp
- HDMI: 2 x HDMI 1.2, up to 1920 x 1200 @ 60Hz, 24bpp
• Multiple displays: eDP + HDMI + HDMI
Ethernet Interface
• Controller: LAN1/LAN2: Intel® i225
• Speed: LAN1/LAN2: up to 2.5GbE with TSN support
I/O
• External I/O: 2 x RJ-45, 2 x HDMI, 4 x USB 3.2
• Internal I/O: 2 x USB 2.0, 2 x RS-232/422/485, CANBus,
I
2
C, Audio, GPIO, Front Panel
• Power connector type: ATX 2x2 pin 180D (Optional ATX
2x2 pin 90D)
Specications Packing List
For more information about this and other Advantech
products, visit our website at:
https://www.advantech.com/en
For technical support and customer service, visit our
support website at:
https://www.advantech.com/en/support
This manual is for the the MIO-4370 series.
Part No. 2046437000
Printed in China
Edition 1
March 2023

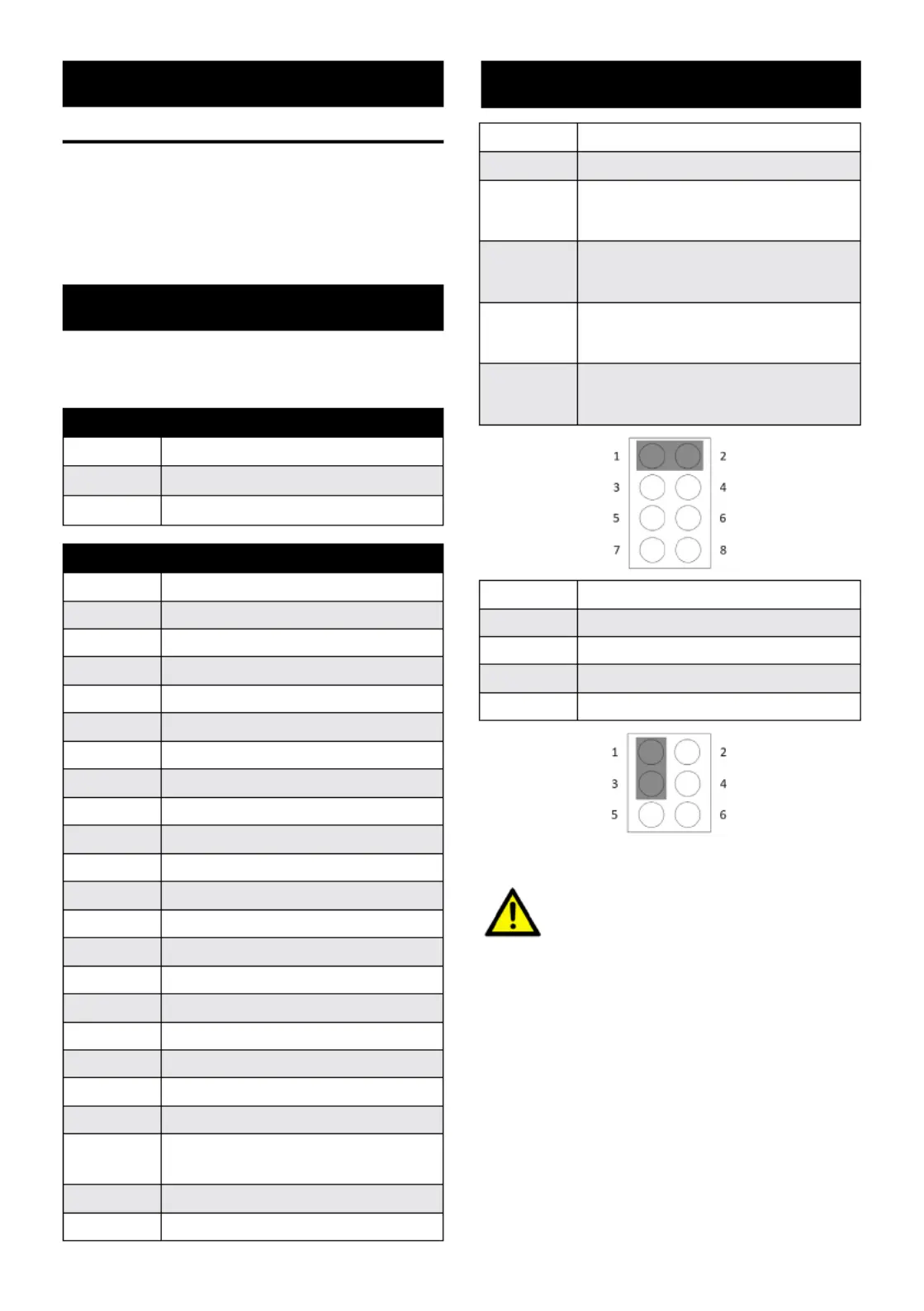

2 MIO-4370 Startup Manual
Mechanical and Environmental
• Dimensions (L x W): 165 x 114 mm (6.5" x 4.5")
• Power supply type: Supports ACPI
• Power requirement: Vin: DC 12V ± 10%
• Operating temperature: Standard: 0 ~ 60°C (32 ~
140°F)
• Net Weight: 320 g (w/o CPU & Cooler)
The board has a number of jumpers that allow you to congure
your system to suit your application. The table below lists the
function of each of the jumpers and connectors.
Jumpers
Location
Functions
J1 AT Mode/Load BIOS Default
VDD1 Panel Voltage Selection Jumper
Connectors
Location Functions
DCIN1 DC Power Input Connector (180D)
AUDIO1 AUDIO CABLE Connector
eDP1 eDP Connector
COM1 COM Port Internal Connector 1
COM2 COM Port Internal Connector 2
CN1 Front Panel Internal Connector
CN4 GPIO Connector
CANBUS1 CANBus Connector
USB3 USB 2.0 Internal Connector
LAN1 LAN Connector 1
LAN2 LAN Connector 2
USB1 USB 3.2 Connector 1
USB2 USB 3.2 Connector 2
HDMI1 Dual HDMI Connector
FAN1 Smart FAN Connector
DIMMA1 DDR5 SODIMM
I2C_1 I2C_SMB_Connector
BAT1 RTC Battery Connector
M2_M2 M.2 M-Key Connector
M2_M1
(M2_B1)
M.2 M-Key Connector (Co-layout & BOM
Option: M.2 B-Key Connector)
SIM1 NANO SIM (Co-layout & BOM option)
M2_E1 M.2 E-Key Connector
Jumper Settings
J1
AT Mode/Load BIOS Default
Setting Function
(1-2)*
AT_DET#
Open: ATX mode
Short: AT mode (*Default)
(3-4)
NORMAL_BIOS
Open: Normal (Default)
Short: (reserved)
(5-6)
LOAD BIOS Default setting:
Open: Normal (Default)
Short: Load BIOS Default
(7-8)
Top Swap:
Open: Normal (Default)
Short: Top Swap function
VDD1 Panel Voltage Selection
Setting Panel Voltage
(1-3)* Short +3.3V (*Default)
(3-5) Short +5V
(3-4) Short +12V
Caution! The computer is provided with a battery-powered
real-time clock circuit. There is a danger of
explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Discard
used batteries according to the manufacturer’s
instructions
Jumpers and Connectors
Specications(Cont.)
MIO-4370 Startup Manual 3
Jumper & Connector Locations

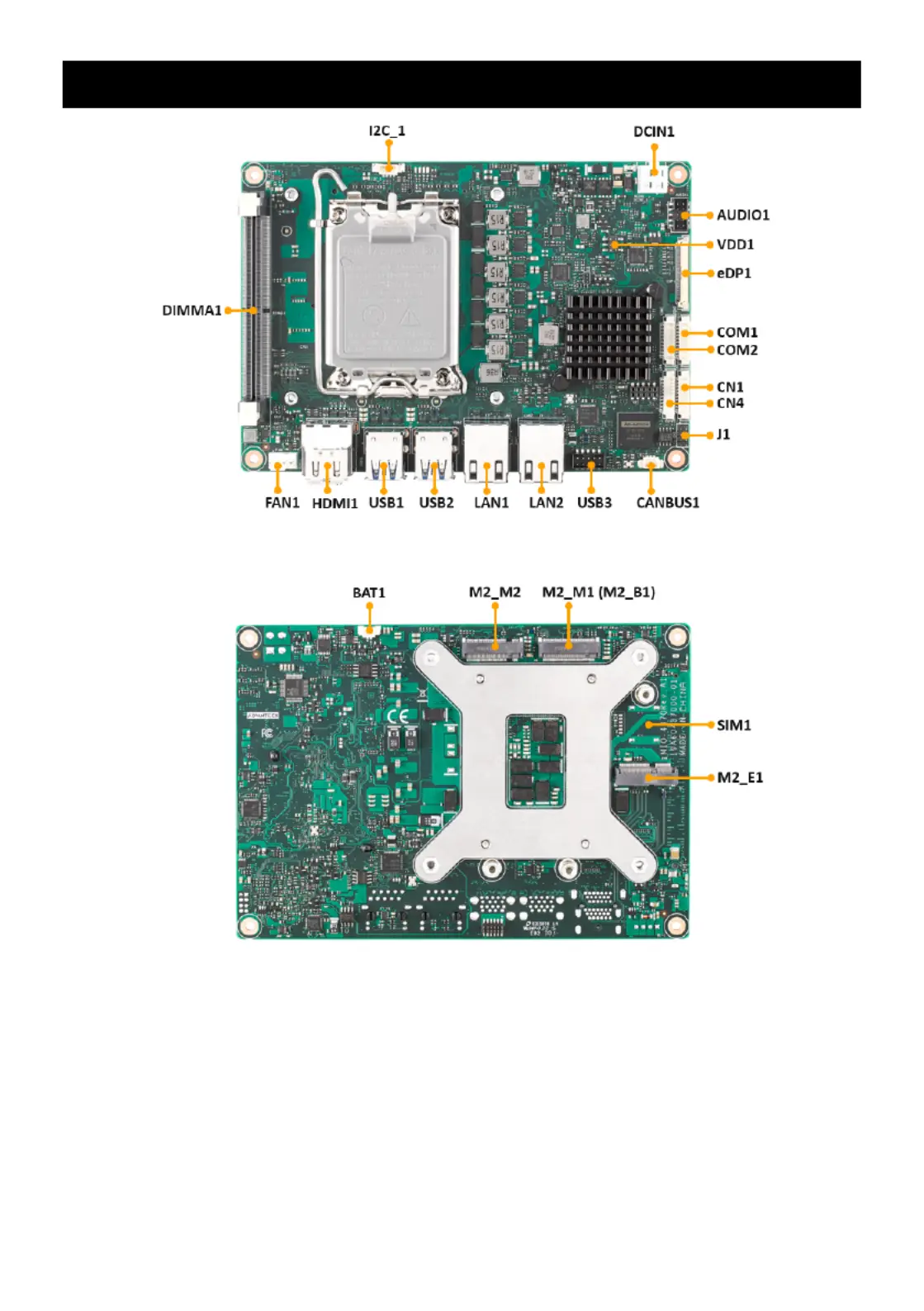

Figure 1. MIO-4370 Jumper & Connector Locations (Top Side)
Figure 2. MIO-4370 Jumper & Connector Locations (Bottom Side)
