Pagina 1/12
MIC-75M20-00 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. MIC-75M20-00 i-Module
P/N: MIC-75M20-00C1
2. MIC-75M20-00 Startup Manual P/N: 20015M2022
3. Card clamp pads x 2 P/N: 1990024989T010
4. Wallmount bracket (Left) P/N:
1960070545T001
5. Wallmount bracket (Right) P/N:
1960070543T00A
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe.)
MIC-75M20-00
PCIe Expansion Module for MIC-7 Series Embedded
Systems
Startup Manual
PCIe Slots
• 1 x PCIe x16 socket
Note 1: PCIe x16 supports up to 75W power consump-
tion.
• 1 x PCIe p1-x4 socket
Note 1: PCIe p1-x4 supports up to 25W power consumption.
Note 2: MIC-75M20 does not support MIC-7300 series
systems.
• 1 x 12V extra power socket
Note 1: 12V extra power connector supports 25~75W.
Note 2: The total power consumption of the M20 riser
card can support 100W (PCIe x16 socket + PCIe
x4 socket + 12V extra power)
Environment
• Operating Temperature:
-20 ~ 60°C with 0.7 m/sec air ow with 1 x Industrial SSD,
without PC expansion boards
0 ~ 45°C with 0.7 m/sec air ow with 1 x 2.5” HDD,
without PC expansion boards
• Storage Temperature: - 40 ~ 85°C (-40 ~185°F)
• Relative Humidity: 95% @ 40°C (non-condensing)
Mechanical
• i-Module dimensions (H x W x D): 50 x 192 x 230 mm
• With MIC-7 series (H x W x D): 127 x 192 x 230 mm
Note: We suggest adding an optional system fan (P/N:
98R1752000E) if power consumption of your
add-on card is more than 45W (for better thermal
management).
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
https://www.advantech.com/en/support
This manual is for the MIC-75M20-00 Rev. A1.
Part No. 20015M2022
Printed in China
2nd Edition
December 2024

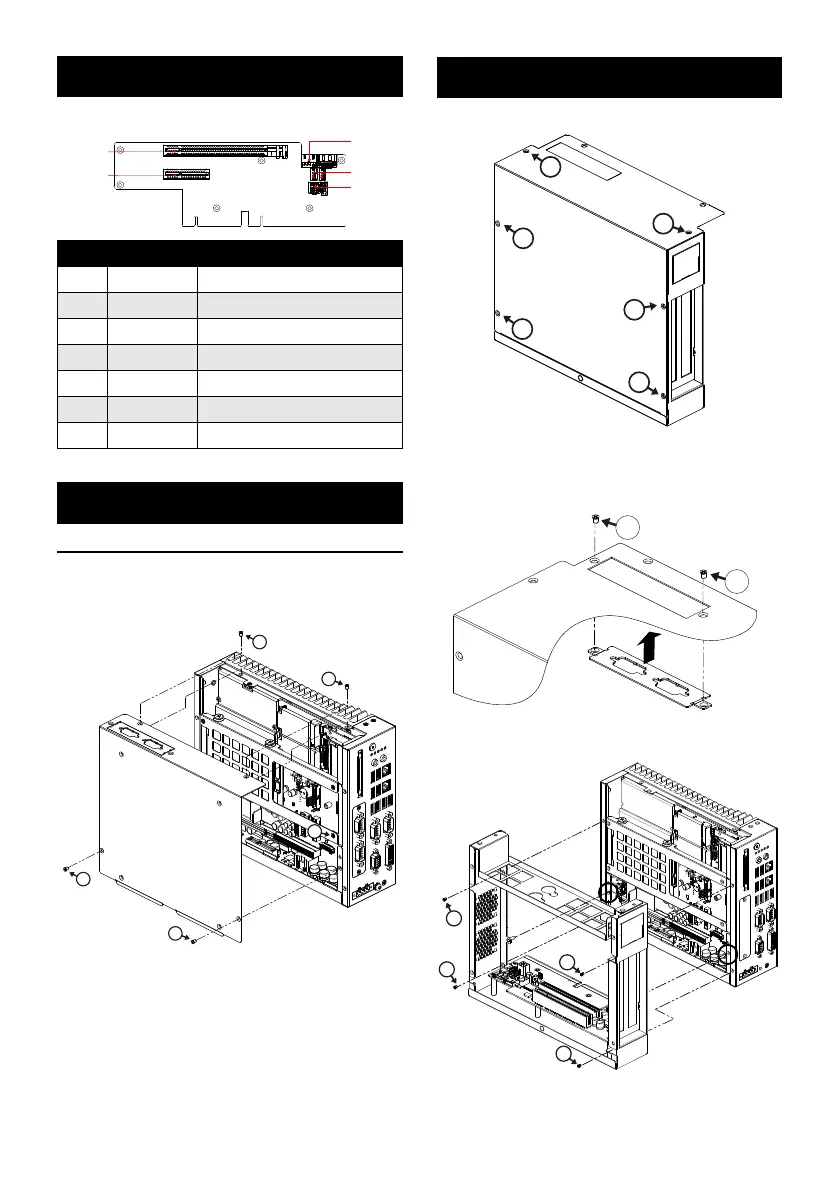

2 MIC-75M20-00 Startup Manual
2. Undo the 6 screws on the MIC-75M20.
2
2
2
2
2
2
3. Remove the i-door cover on the system bottom and
assemble and secure the cover onto the i-module’s
bottom cover.
3
3
4. Align the MIC-75M20 and MIC-7 and secure 4 screws.
3
3
3
3
The table below lists the functions of each of the connectors.
PCIE p2-x4 Socket
PCIE p2-x16 Socket
12V Extra Power
FAN CON 1 & 2
Extra Power
5V Extra Power
Connectors
No. Item Function
1 SATAPWR1 4-pin Power connector (5V)
2 PWR2 4-pin Power connector (12V)
3 FAN 1 4-pin FAN connector
4 FAN 2 4-pin FAN connector
5 PCIEx4_1 PCIe p2-x4 socket
6 PCIEx16_1 PCIe p2-x16 socket
System Installation
The MIC-7 series i-module can be assembled with all MIC-7
series IPC systems.
1. Undo these screws on the MIC-7 series system and
remove the bottom cover.
1
1
1
1
2
Simple Maintenance Process
Jumpers and Connectors
Simple Maintenace Process (Cont.)
