Pagina 1/3
MIC-3954F Startup Manual 1
Before you begin installing your IPC, please make sure that
the following items have been shipped:
1. 1 x MIC-3954F-A1S1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF le.
Acrobat Reader can be downloaded at: www.
adobe.com/Products/acrobat/readstep2. html
(Acrobat is a trademark of Adobe)
MIC-3954F
3U Compact PCI® Serial USB Multi I/O Board
Startup Manual
The MIC-3954F is a 3U 4HP height peripheral board adher-
ing to the CPCI-S.0 standard. It features four USB 3.0 ports
on type A connectors on the front panel and supports up
to two 2230 or 2242 form factor M.2 E key sockets. These
sockets come with PCIe p1-x1 and USB 2.0 interfaces, serving
various purposes such as WiFi5/6/6E modules or storage
devices.
Features
• 3U Height CompactPCI serial interface peripheral board
• Up to quad port USB 3.0 Type A , one or dual M.2 E key
sockets
• Designed to meet EN50155 & EN50121-3-2 & EN50121-4
• PICMG CPCI-S.0 CompactPCI® serial spec.
Specications
Standard Functions
• Backplane Interface: PCIe Gen2 p1-x4 from backplane P1
• Front Panel I/O: 4 x USB 3.0, 2 x SMA antenna hole
• Front Panel Led: PWR ON Green
• On board: 2 x M.2 E Key (PCIe/USB2.0)
• OS support: Windows, Linux, Vxworks, depending on
external M.2 modules
• Power: +12V, power consumption depending on the
plugged in module
Mechnical and Environmental
• Dimensions (W x H x D): 160.00 x 100.00 mm (6.30” x
3.95”)
• Weight: 0.124g
• Non-Operating temperature: -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature (depending on module): -40 ~
70°C (-40 ~ 158°F)
• Operating Humidity: 95% @ 40°C, non-condensing
• Non-Operating Humidity: 95% @ 60°C, non-condensing
• Vibration (5~500 Hz): 2.0 Grms
• Shock: 10 G, 11 ms, each axis three times, operation
mode
Ordering Information
P/N List Description
MIC-3954F-A1S1 3U CPCI-S 4 USB typeA, 2* M.2 E key
board
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support services, please visit our support
website at:
https://www.advantech.com/support
This manual is for the MIC-3954F-A1S1.
Part No. 2041395400 Edition 1
September 2024
Introduction
2 MIC-3954F Startup Manual

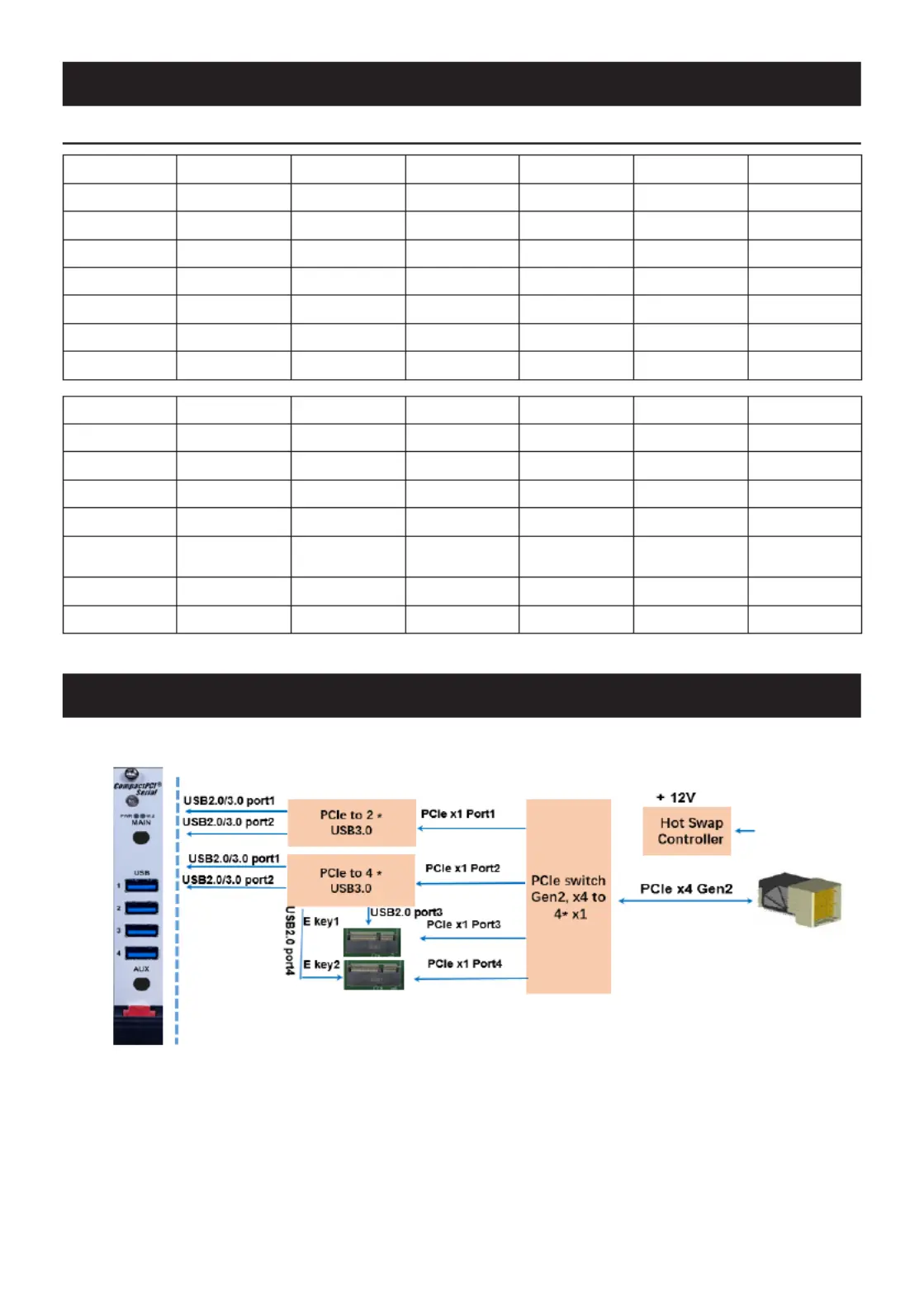

P1 Pin Denition
Pin A B C D E F
1-06 GND 1_PE_TX02+ 1_PE_TX02- GND 1_PE_RX02+ 1_PE_RX02-
1-05 1_PE_TX00+ 1_PE_TX00- GND 1_PE_RX00+ 1_PE_RX00- GND
1-04 GND NC NC GND PE CLKIN+ PE CLKIN-
1-03 NC NC GA0 NC NC GA1
1-02 GND I2C_SCL I2C_SDA GND NC NC
1-01 +12V NC GND +12V +12V GND
Pin A B C D E F
Pin G H I J K L
1-06 GND 1_PE_TX03+ 1_PE_TX03- GND 1_PE_RX03+ 1_PE_RX03-
1-05 1_PE_TX01+ 1_PE_TX01- GND 1_PE_RX01+ 1_PE_RX01- GND
1-04 GND NC NC GND NC NC
1-03 NC NC GA2 NC NC GA3
1-02 GND RST# WAKE_OUT#
(rsvd)
GND PCIE_EN# NC
1-01 +12V +12V GND +12V +12V GND
Pin G H I J K L
Block Diagram
Pin Denition
MIC-3954F Startup Manual 3

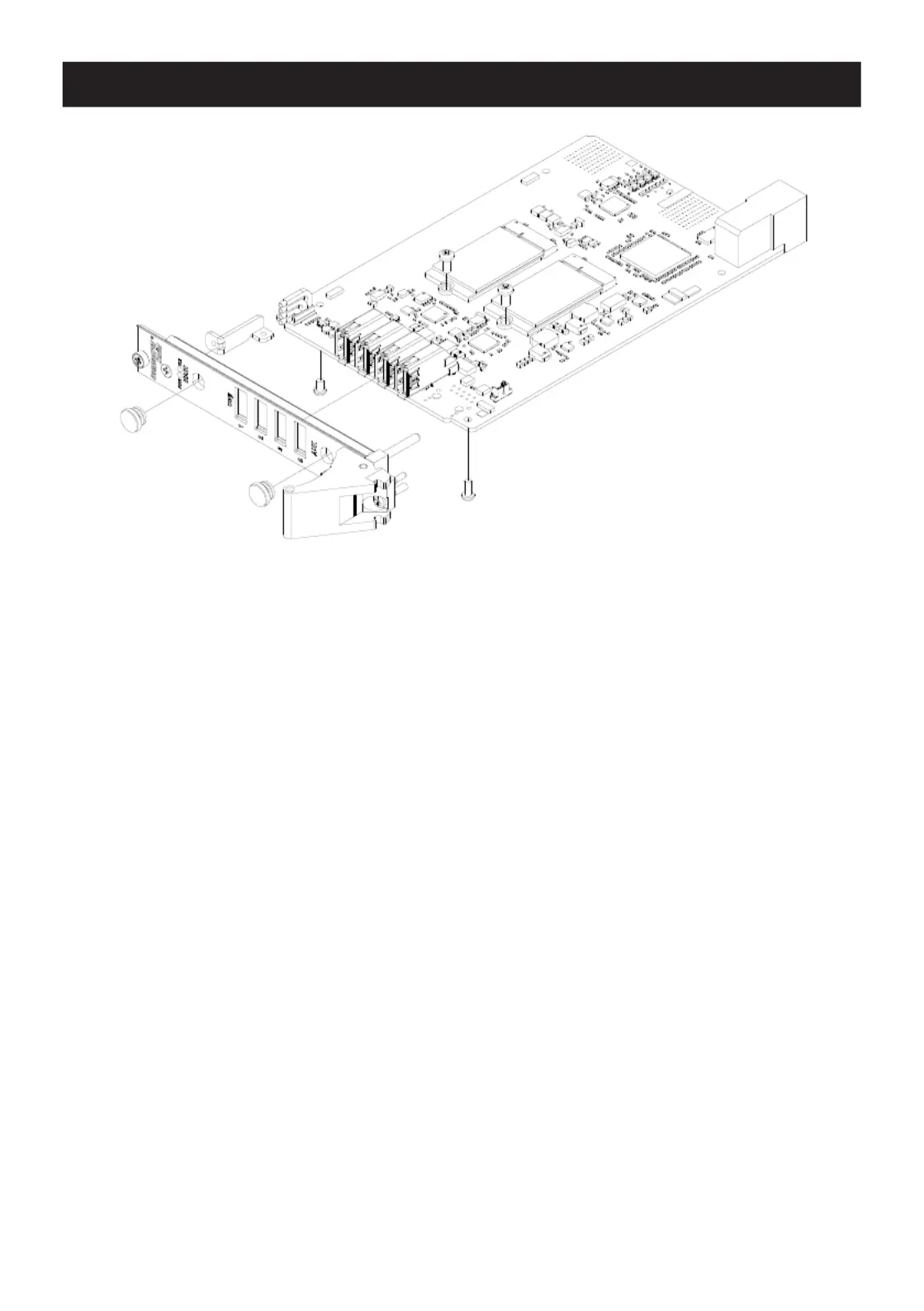

Mechanical Diagram
