MIC-75M11 Startup Manual 1
Before you begin installing your card, please make sure
that the following items have been shipped:
1. MIC-75M11 Module p1-x1
P/N : MIC-75M11-00A1E
2. MIC-75M11 Startup Manual p1-x1 P/N :20015M1100
3. Warranty Card P/N: 2190000902
4. Card Clamp Pad x 4 P/N:1990024989T000
5. Wall-Mount BKT (Left) p1-x1 P/N:
1960070545N001
6. Wall-Mount BKT (Righ) p1-x1 P/N:
1960070543N001
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
MIC-75M11
PCIE/PCI Expansion Module for MIC-7 Series
Embedded System
Startup Manual
PCIe Slots
• One PCIex16 socket
Note 1: PCIEx16 power consumption supports to 35W.
Note 2: For MIC-73 series products (ATOM CPU), only
supports PCIEx4 or PCIEx1 signal.
32-bit PCI
•One 32 Bit/33Mhz PCI socket
Note 1: PCI socket suppots 15W power consumption.
Environment
• Operation Temperature:
-20 ~ 60° C with 0.7 m/sec air flow: with 1 x Industrial SSD
without PC expansion boards
0 ~ 45° C with 0.7 m/sec air flow: with 1 x 2.5” HDD
without PC expansion boards
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Mechanical
• Dimensions (H x W x D): 92 x 90 x 230 mm
Note 1: Please add FAN into i-module, when add-on
card total power consumption is over 45W.
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the MIC-75M11 Series Rev. A1.
Part No. 20015M1100
Printed in China
1st Edition
January 2016
2 MIC-75M11 Startup Manual
2. Undo 6x screws of MIC-75M11.
2
2
2
2
2
2
3. Remove i-door cover by MIC-7500 bottom cover and
assemble and secure cover in i-module’s bottom cover.
3
3
4. Assemble MIC-75M11 and MIC-7 series device and
secure 4x screws to integrate system.
3
3
3
3
The table below list the function of each of the connectors.
PCIE x 16 Socket
PCI Socket
12V Extral Power
SATA CON
SATA Power CON
FAN CON
Connectors
No. Item Function
1 SATAPWR1 4 Pin Power connector (5V)
2 PWR2 4 Pin Power connector (12V)
3 FAN 1 4 Pin FAN connector
4 FAN 2 4 Pin FAN connector
5 PCI_1 PCI socket
6 PCIEx16_1 PCIEx16 Socket

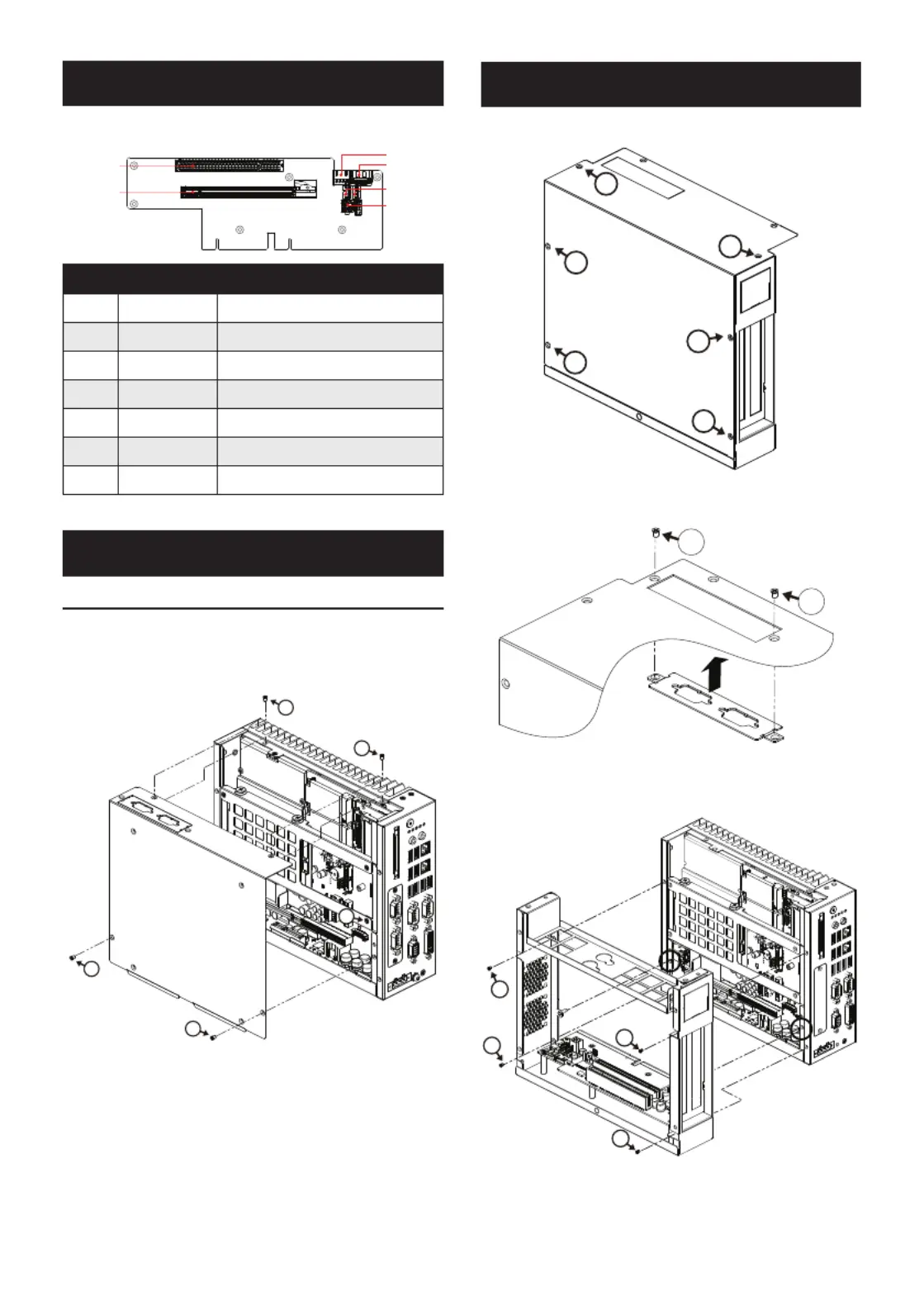

System Installation
MIC-7 series i-module can assemble with all MIC-7 series
IPC system.
1. Undo MIC-7 series system screws and remove the
bottom cover.
1
1
1
1
2
Simple Maintain Process
Jumpers and Connectors
Simple Maintain Process (Cont.)
MIC-75M11 Startup Manual 3
Note: MIC-75M11 has 2 bolts and it must be aligned
into the holes at device.
5. Replacee the cover and secure with screws.
Note: Chassis cover has designed a notch and it must
buckle at a hook at chassis.
Chassis Cover
Chassis hook

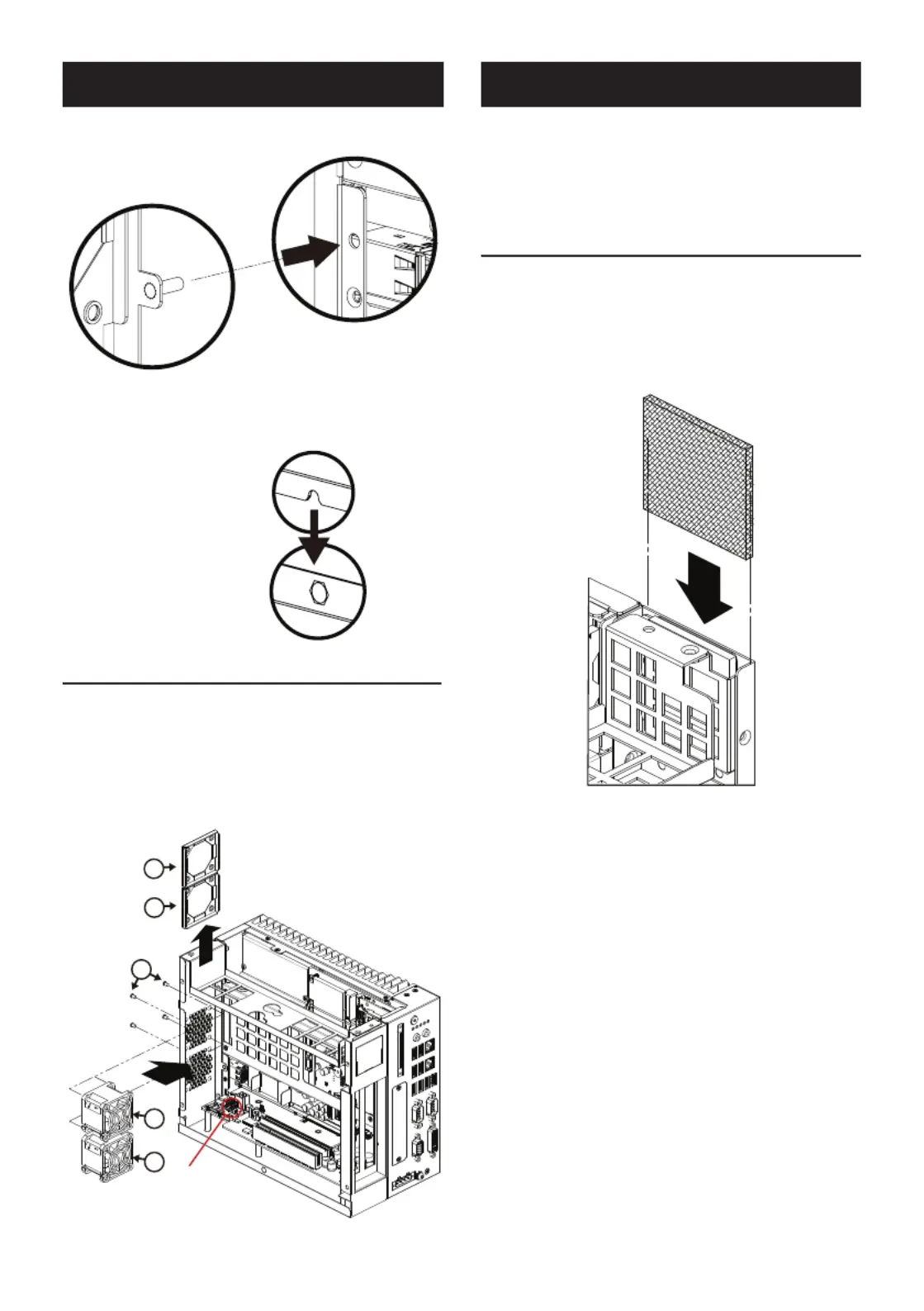

FAN Installation (Optional)
MIC-75M11 supports two 4x4CM FAN space. If system
wants to install high perfornamce epxansion cards (For
example: Graphic or PoE card) or total power consumption
is over 45W, please install FAN for Thermal issue.
FAN is optional module. If you system needs FAN module,
please contact your distributor or sales representative.
Fan Module P/N: 98R1752000E.
1
Fan Connector
3
1
2
2
1. Undo FAN1 & 2 cover.
2. Secrue FAN protectoin nets with 4 screws.
3. Assemble and secure FAN in chassis with 4 screws.
4. Plug the FAN power cable into the connector of
backplane board.
FAN Filter Installation
If your system has installed FAN, we recommend you to be
replaced system fan filter at regular intervals to ensure the
stability of the system cooling.
You can find one new FAN filter at FAN moudle.
1. Undo system cover and remove old Fan filter.
2. Change new fan filter and replace system cover with screws.
Simple Maintain Process
(Cont.)
Simple Maintain Process (Cont.)
