Overview

The EKI-2741 series is designed to convert Gigabit

Ethernet networks to Gigabit ber networks by

transparently converting Ethernet signals to optic

signals. Therefore, the EKI-2741 series is an ideal

solution for “fiber to building” applications at central

oices or local sites. EKI-2741 series supports

MDI/MDIX auto detection, so you don’t need to use

crossover wires. EKI-2741 series is an enhanced

gigabit Ethernet to ber optic converter. Furthermore,

the EKI-2741 series can work normally from 0 to

50°C and also is the most cost-effective solution for

ber optic media converter

Packing List

Before installation, please make sure that you have

received the following:









1 x EKI-2741ML/SL/FL Fiber Optic Gigabit Media

Converters









5V/1A Power Adapter









1 x EKI-2741ML/SL/FL Series Startup manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Datasheet

For more detailed information, please refer to the full

specication which can be found on the Advantech’s

website.

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/products

For technical support and service:

http://www.advantech.com/support/

This startup manual is for EKI-2741ML , EKI-2741SL &

EKI-2741FL.

1st Edition

Sept. 2018

Specications

General









Compatibility: IEEE 802.3, 802.3u, 802.3ab,

802.3x, IEEE 802.3z









LAN: 10/100/1000Base-T (X), 1000Base-SX or

1000Base- LX









Transmission Distance:

- Ethernet: Up to 0 m 10

- Fiber:

Multi-mode: Up to 550 m (EKI-2741ML)

Single-mode: Up to 10 km (EKI-2741SL)

- SFP: N/A (EKI-2741FL)









Transmission Speed: Up to 1000Mbps









Optical Fiber:

Multi-Mode (EKI-2741ML)

- Wavelength: 850nm

- Tx Power: -4 / -9.5 dBm

- Rx Sensitivity: - dBm 17

- Parameters: 50/125 um, 62.5/125 um

Single-Mode (EKI-2741SL)

- Wavelength: 1310nm

- Tx Power: -3/-9.5 dBm

- Rx Sensitivity: - dBm 20

- Parameters: 9/125 um









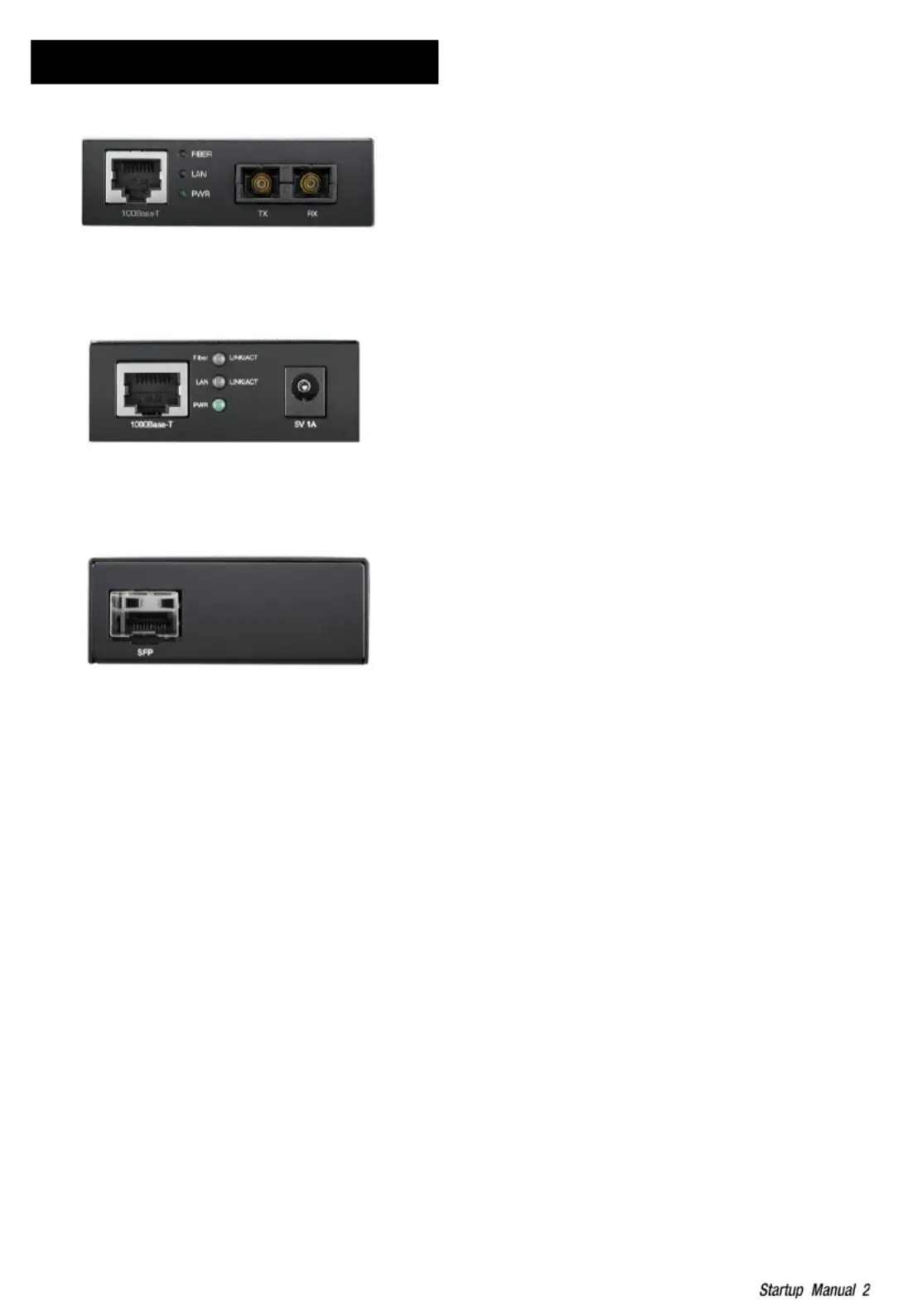

Connectors:

1 x RJ45

1 x SC type ber connector (EKI-2741ML/SL) or

1 x SFP type ber connector (EKI-2741FL)









LED Indicators:

EKI-2741ML/SL FIBER, LAN, PWR

EKI-2741FL Fiber: LINK/ACT

LAN: LINK/ACT

PWR









Operating Current:

0.61A (EKI-2741ML/SL)

0.52A (EKI-2741FL)









Power Adapter: 5V DC, 1A external power

adapter









Power Consumption: 0.5 W (EKI-2701FL, w/o

insert SFP transceiver)









Dimensions (W x H x D):

EKI-2741FL: 60.88 x 23 x 75.58 mm

(2.4" x 0.91" x 2.98")

EKI-2741ML/SL: 75 x 22.6 x 101.2 mm

(2.95" x 0.89" x 3.98")









Enclosure: IP30









Operating Temperature: 0 ~ 50°C (32 ~ 122°F)









Storage Temperature: -40 ~ 70°C (-40 ~ 158°F)









Humidity: 10 ~ 95% (non-condensing)









Safety: LVD









EMC: CE, FCC









Warranty: 2 years
