EKI-2716GI-R Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2716GI-R Ethernet Switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2716GI-R Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
The EKI-2716GI-R industrial Ethernet switch provides 16
x10/100/1000Mbpscopperports,oeringversatilecon-
nectivity for diverse applications. Users can conveniently
enable or disable Quality of Service (QoS) and Network
Redundancy (RSTP or X-Ring) settings using DIP switches.
With the help of the network redundancy function on two
designated ports, the EKI-2716GI-R ensures network
redundancy and rapid recovery, maintaining uninterrupted
communication even during link failures. Equipped with
12–48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
industrial environments. With EMC Level 4 protection, it
resists electromagnetic interference, ensuring stable opera-
tion even in harsh conditions.
EKI-2716GI-R
16-port Gigabit Unmanaged Switch with Network
Redundancy
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u,
802.3ab,802.3x,802.1p,802.1w
• LAN:16 x 10/100/1000 BASE-T/TX RJ-45 ports
• TransmissionDistance:Up to 100 m
• Connectors:16 x RJ45
• SwitchArchitecture: Store and Forward
• PowerInput:12~48 V
DC
, redundant power
• PowerConsumption: 9.6W
• Dimensions(WxHxD):72 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 ~ 185°F)
• OperatingHumidity: 5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 years
Specications
Overview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2716GI-R.
Part No. 2049271640 Edition 1
July 2025

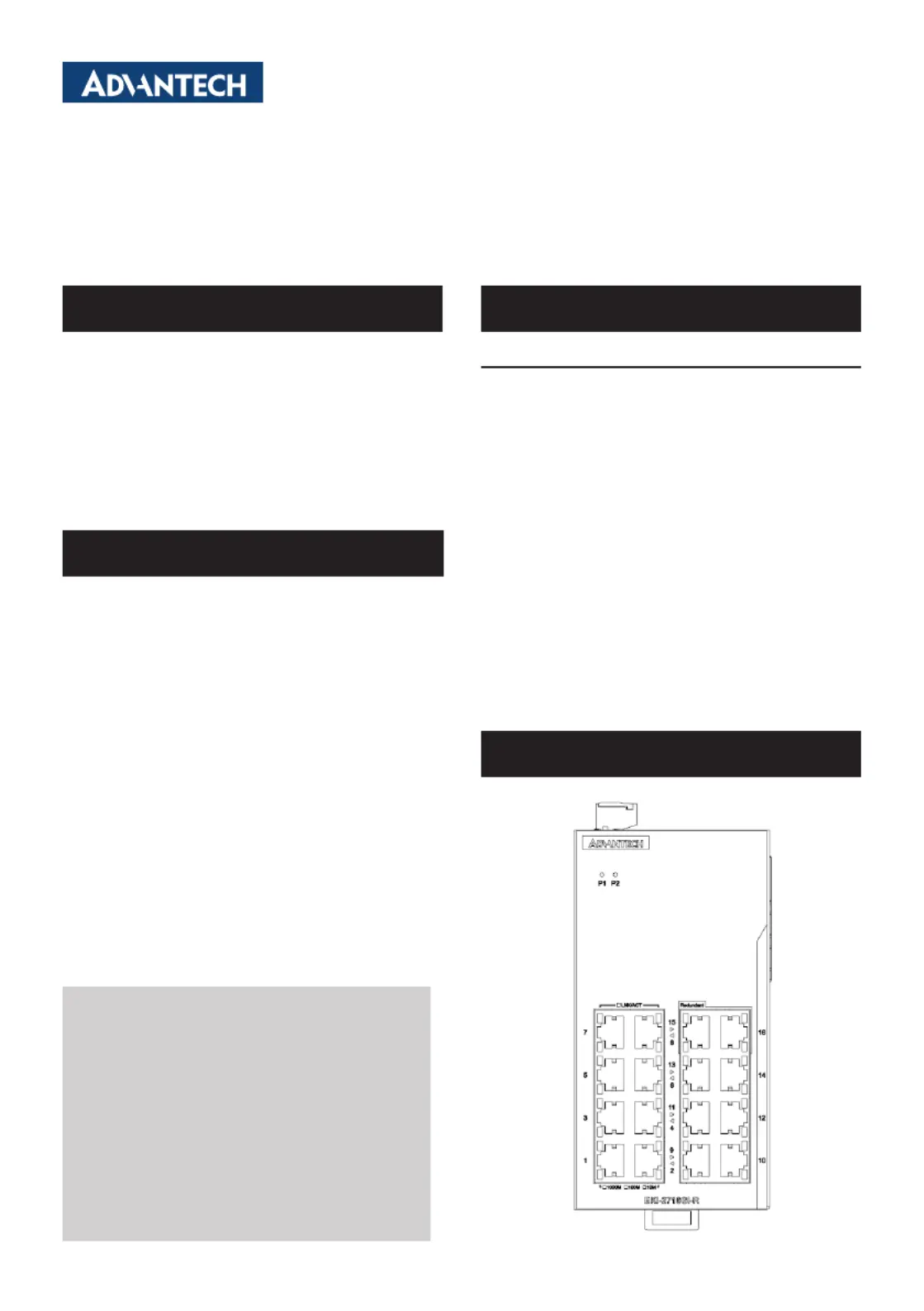

PackingList
Overview
2 EKI-2716GI-R Startup Manual
3 X-Ring Right
Switch the DIP to the ‘right’
position to enable X-Ring. Use
the DIP switch below to select
the Ring ID.
4
Ring 1 Left
Switch the
DIP to the
‘left’ position
to activate
Ring 1 for X-
Ring. Ring 1
corresponds
to Ring ID
255.
*Eectiveonly
when X-Ring
redundancy is
enabled.
* X-Ring
supports only
a single-ring
topology
* The managed
switch within
the same ring
has the same
Ring ID as the
EKI-2716GI-R
* Recommend-
ed default: Ring
1 (ID: 255)
Ring 2 Right
Switch
the DIP to
the ‘right’
position to
activate Ring
2 for X-Ring.
Ring 2 cor-
responds to
Ring ID 254.
Note:
PortLED–StandbyMode
When X-Ring or (R)STP loop protection is active, one port
enters standby mode (blocked port in RSTP terms). The
portstaysconnectedbutdoesnotforwardtrac.Both
RJ45 LEDs blink green once per second. The port resumes
forwarding automatically if the topology changes.
The EKI-2716GI-R switch supports dual +12~48 V
DC
power
inputs. For operation, connecting either power V1 or V2
totheswitchissucient.Ifbothsetsareconnected,it
enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and V-
contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an UL
certiedpowersupplyorDCsourcesuitablefor
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 1.2 A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord connect-
ed to a socket-outlet with earthing connection.

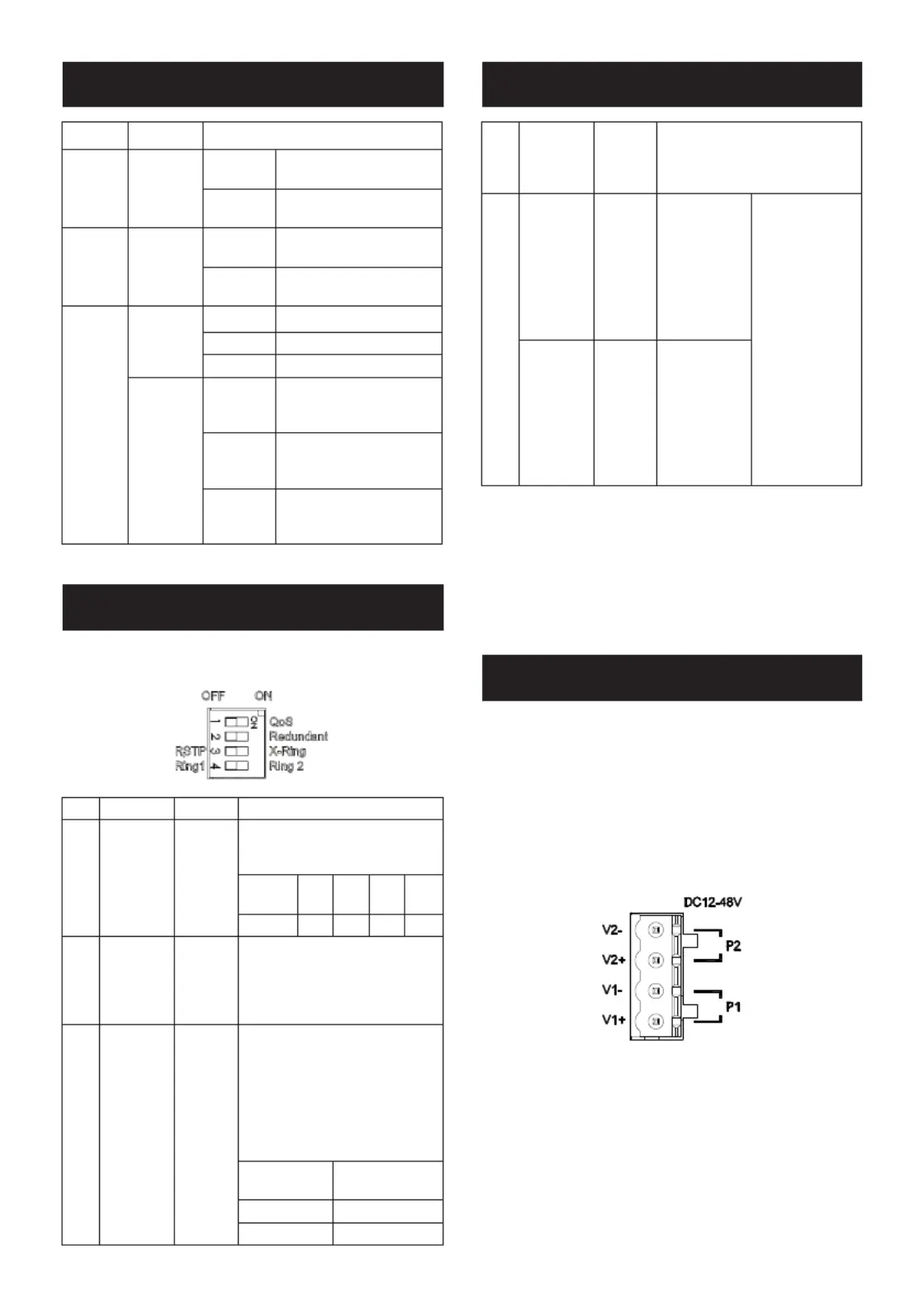

LED DescriptionColor
P1 Green
On
P1 is being supplied to
power input.
O
P1 is not being supplied
to power input.
P2 Green
On
P2 is being supplied to
power input.
O
P2 is not being supplied
to power input.
Copper
Ports
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O No link
Green/
Amber
(bottom)
Green
On
When the port’s data
is being transmitted at
1000M
Amber
On
When the port’s data
is being transmitted at
100M
O
When the port’s data
is being transmitted
at 10M
This series provide 4-pin DIP switches for function setting.
DIPswitchdenitionislistedasfollows:
Pin SettingFunction Description
1 QoS ON
Switch the DIP to “ON” to
activate Quality of Service for
managing packet priorities.
CoS
Priority
7,6 5,4 3,2 1,0
WRR 8 4 2 1
2
Network
Redun-
dancy
ON
Switch the DIP to “ON” to
enable network redundancy for
either RSTP or X-Ring (single
ring) on both Port 15 and 16
using the DIP switch below.
3 RSTP Left
Switch the DIP to the ‘left’
position to enable RSTP. The
device supports both RSTP
and STP to ensure backward
compatibility with legacy
devices.
Note: Make sure to turn on PIN
2 for network redundancy.
Bridge
Priority
32768
Hello Time 2 sec
Max Age 20 sec
DIPSwitch
LEDDenition
DIPSwitch(Cont.)
PowerConnnection
EKI-2716GI-R Startup Manual 3
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by quali-
edskilledperson.
Avertissement: Ce produit est destiné à être alimenté par
unealimentationcertiéeULouunesourcede
courant continu adaptée à une utilisation à au
moins Tma 75°C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48 Vdc,
1.2 A minimum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter
l’équipement à une prise de courant. Utilisez un
cordon d’alimentation connecté à une prise avec
connexion à la terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des Rai-
sons de sécurité, l’équipement ne doit être ouvert
queparunepersonnequaliée.

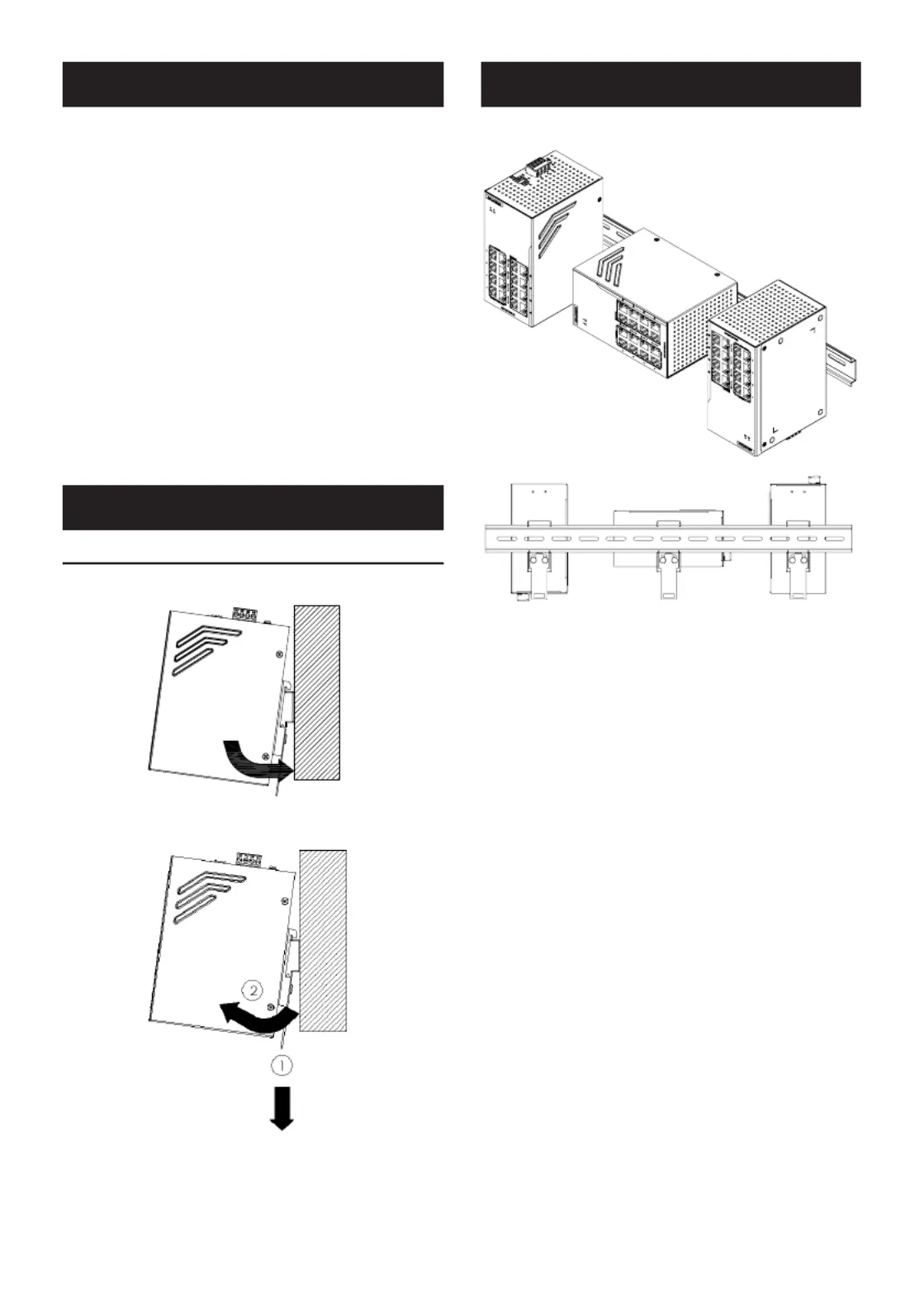

DIN-railMounting
1. Install the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
DIN rail mounting screws (4 pcs, M3 x 5L): Diameter 2.9
mm, Length 5 mm.
Mounting
3. SupportsexibleinstallationangleswiththeDin-railkit.
Mounting(Cont.)
PowerConnnection(Cont.)
