MIC-75S20 Startup Manual 1
Before you begin installing your card, please make sure
that the following items have been shipped:
1. MIC-75S20 Module p1-x1
P/N: MIC-75S20-00A1E
2. MIC-75S20 Startup Manual p1-x1 P/N: 20015S2000
3. Warranty Card P/N: 2190000902
4. Card Clamp Pad x 4 P/N:1990024989T000
5. Wall-Mount BKT (Left) p1-x1 P/N:
1960070545N001
6. Wall-Mount BKT (Righ) p1-x1 P/N:
1960070543N001
7. SATA cable x 2 P/N : 1700014518
8. SATA power cable p1-x2 P/N : 1700023566-02
9. HDD tray power cable p1-x1 P/N : 1700024985-01
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
MIC-75S20
PCIE Expansion Module for MIC-7 Series
Embedded System
Startup Manual
PCIe Slots
• One PCIex16 socket
Note 1: PCIEx16 power consumption supports 35W.
• One PCIex4 socket
Note 1: PCIEx4 supports 15W power consumption.
Note 2: MIC-75S20 does not support MIC-7300 series
systems.
• Storage: 2 x 2.5’ hot swappable HDD tray
Environment
• Operating Temperature:
-20 ~ 60 °C with 0.7 m/sec air flow: with 1 x Industrial SSD
without PC expansion boards
0 ~ 45 °C with 0.7 m/sec air flow: with 1 x 2.5” HDD
without PC expansion boards
• Storage Temperature: - 40 ~ 85 °C (-40 ~185 °F)
• Relative Humidity: 95% @ 40 °C (non-condensing)
Mechanical
• Dimensions (H x W x D): 92 x 90 x 230 mm
Note 1: Please add a fan onto the i-module, if add-on
card total power consumption is over 45W.
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the MIC-75S20 Series Rev. A1.
Part No. 20015S2000
Printed in China
1st Edition
February 2016
2 MIC-75S20 Startup Manual
2. Undo the 6 x screws of MIC-75S20.
2
2
2
2
2
2
3. Remove i-door cover by MIC-7500 bottom cover and
assemble and secure cover in i-module’s bottom cover.
3
3
4. Assemble MIC-75S20 and MIC-7 series device and
secure 4 x screws.
3
3
3
3
Table below lists the functions of each of the connectors.
PCIE x 16 Socket
PCIEx4 Socket
12V Extral Power
FAN CON 1 & 2
5V Extral Power
Connectors
No. Item Function
1 SATAPWR1 4 Pin Power connector (5V)
2 PWR2 4 Pin Power connector (12V)
3 FAN 1 4 Pin FAN connector
4 FAN 2 4 Pin FAN connector
5 PCIEx4_1 PCIEx4 Socket
6 PCIEx16_1 PCIEx16 Socket

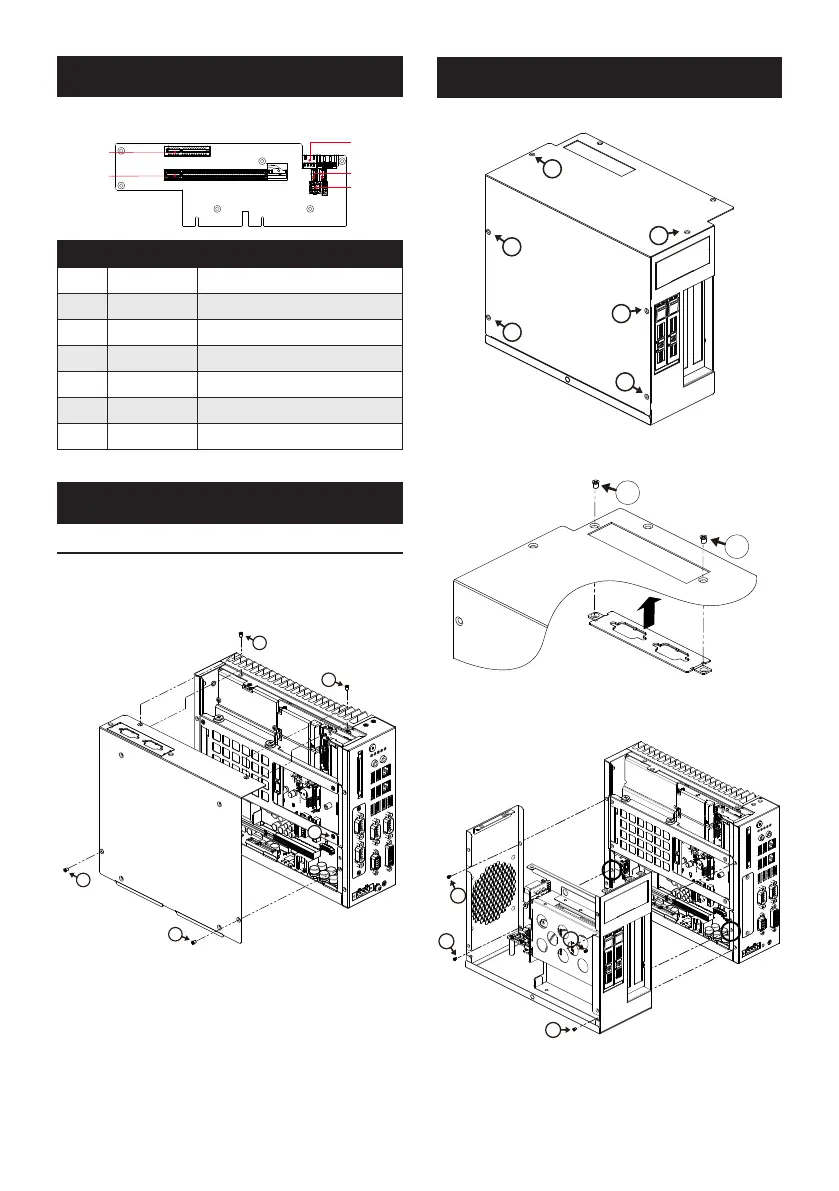

System Installation
MIC-7 series i-module can be assembled with all MIC-7
series IPC systems.
1. Undo MIC-7 series system screws and remove the
bottom cover.
1
1
1
1
2
Simple Maintenance Process
Jumpers and Connectors
Simple Maintenance Process (Cont.)
