Pagina 1/3

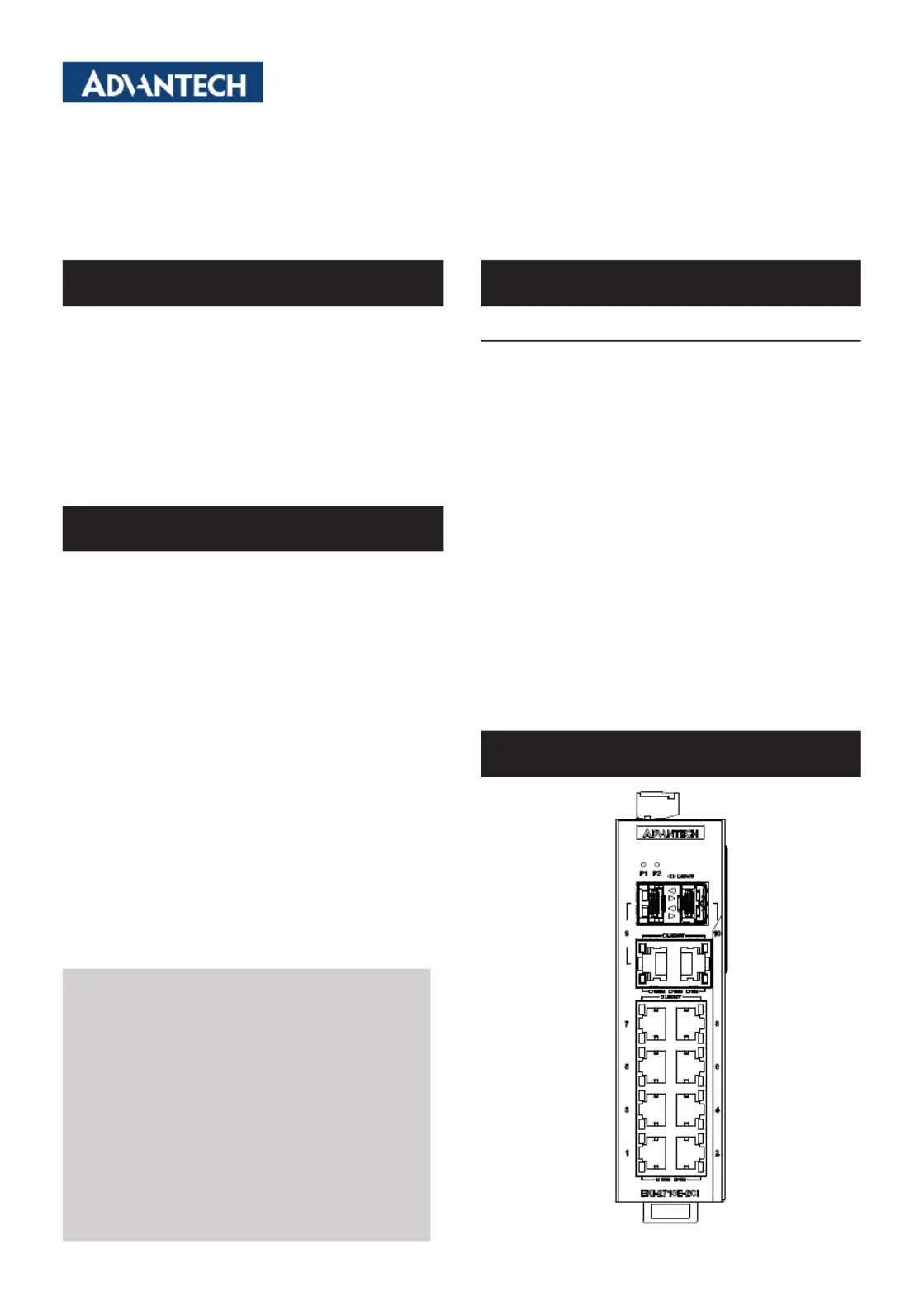

EKI-2710E-2CI Startup Manual 1
The EKI-2710E-2CI industrial Ethernet switch provides 8 x
10/100M + 2GE Combo ports, oering versatile connectivity
for diverse applications. Users can conveniently enable or
disable Quality of Service (QoS), broadcast storm protec-
tion, and VLAN settings using DIP switches. Equipped with
12~48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
industrial environments. With EMC Level 4 protection, it
resists electromagnetic interference, ensuring stable opera-
tion in harsh conditions.
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2710E-2CI Ethernet switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2710E-2CI startup manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
EKI-2710E-2CI
8FE + 2GE Combo Unmanaged Switch
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3ab, 802.3z,
802.3x, 802.1p
• LAN: 8 x 10/100BaseT(X) + 2 x 10/100/1000Base-T(X) or
100/1000Base-FX SFP
• EthernetRJ-45:Up to 100 m
• Connectors:8 x Fast Ethernet (RJ45) + 2 x Giga (RJ45/
SFP) combo ports
• SwitchArchitecture:Store and Forward
• PowerInput:12~48 V
DC
, redundant power
• PowerConsumption:5.8 W
• Dimensions(WxHxD):40 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40°F ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 °F ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 year
SpecicationsOverview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2710E-2CI.
Part No. 2049271000 Edition 1
November 2024
PackingList
Overview
2 EKI-2710E-2CI Startup Manual
4
VLAN
Mode 1
VM1
Switch the DIP to the ‘left’ posi-
tion to activate VLAN Mode 1,
Port Isolated Mode.
All ports are isolated from each
other, with only Uplink Ports 9
& 10 interconnected with other
ports.
VLAN
Mode 2
VM2
Switch the DIP to the ‘right’ posi-
tion to activate VLAN Mode 2,
2-Grouping Mode.
This divides all ports into two
separate groups, ensuring no
interconnection between them.
Group 1 comprises Ports 1-4
with uplink port 9, while Group 2
comprises Ports 5-8, with uplink
port 10.
The EKI-2710E-2CI switch supports dual +12~48 V
DC
power inputs. For operation, connecting either power V1
or V2 to the switch is sucient. If both sets are connected,
it enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an UL
certied power supply or DC source suitable for
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 0.6A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord con-
nected to a socket-outlet with earthing connec-
tion.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by quali-
ed skilled person.
Warning: Laser Class 1 optical transceiver shall be used
only.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une source de
courant continu adaptée à une utilisation à au
moins Tma 75 °C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48Vdc,
0.6A min-imum. Si vous avez besoin d’une aide
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O
P2 is not being supplied to
power input.
Copper
Ports
(P1~P8)
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O No link
Amber
(bottom)
On
When the port’s data is be-
ing transmitted at 100M
O
When the port’s data is be-
ing transmitted at 10M
Combo:
Fiber/
Copper
Ports
(P9~P10)
Green
(Fiber/
top)
On Ethernet port link
Blinking Ethernet port active
O No link
Green/
Amber
(Copper/
bottom)
Green
On
When the port’s data is be-
ing transmitted at 1000M
Amber
On
When the port’s data is be-
ing transmitted at 100M
O
When the port’s data is
being transmitted at 10M

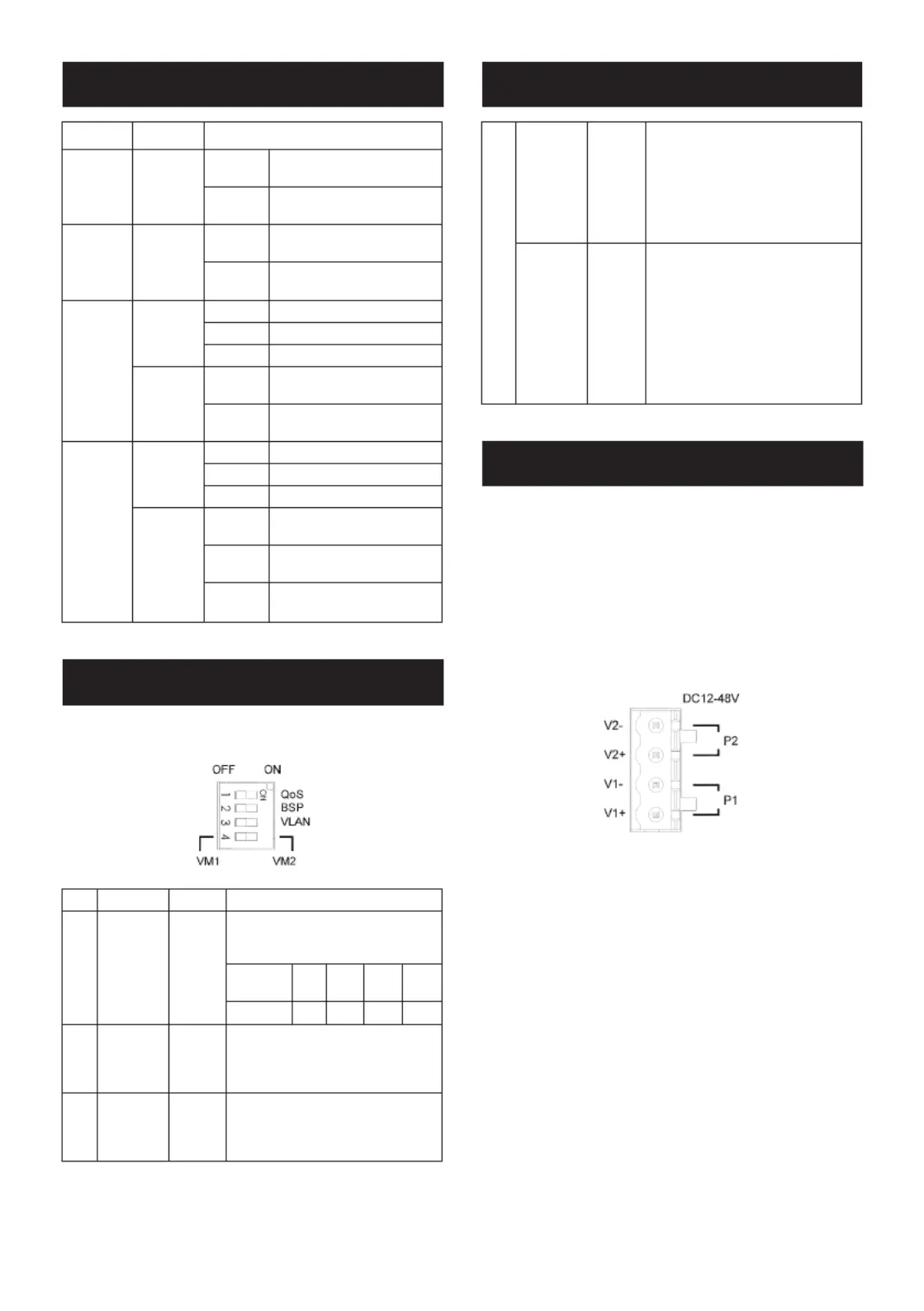

This series provide 4-pin DIP switches for function setting.
DIP switch denition is listed as follows:
Pin Setting DescriptionFunction
1 ONQoS
Switch the DIP to “ON” to activate
Quality of Service for managing
packet priorities.
CoS
Priority
7,6 5,4 3,2 1,0
WRR 8 4 2 1
2 ONBSP
Switch the DIP to “ON” to activate
broadcast storm protection for all
ports, limiting the threshold to be
2000 broadcast packets/second.
3VLAN ON
Switch the DIP to “ON” to activate
VLAN.
(running by the following mode
options.)
DIPSwitch
LEDDenition
PowerConnection
DIPSwitch(Cont.)
EKI-2710E-2CI Startup Manual 3
supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter
l’équipement à une prise de courant. Utilisez un
cordon d’alimentation connecté à une prise avec
connexion à la terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des
Raisons de sécurité, l’équipement ne doit être
ouvert que par une personne qualiée.
Avertissement: L’émetteur-récepteur optique de classe 1
laser doit être utilisé uniquement.

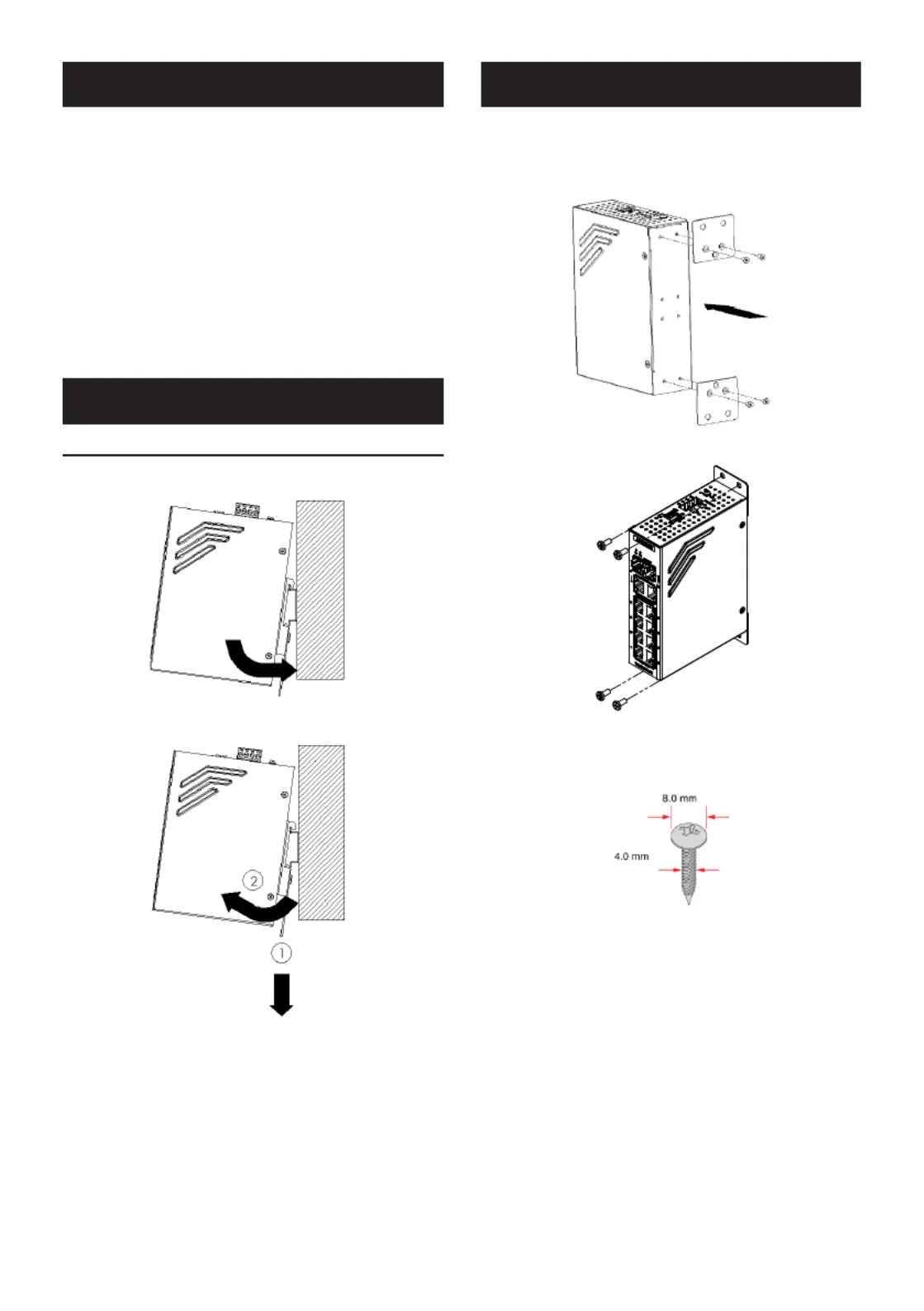

DIN-railMounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
DIN rail mounting screws (4 pcs, M3 x 5L): Diameter 2.9
mm, Length 5 mm
Mounting
1. Secure the wall brackets to the device with M3 screws,
see the following gure.
Wall mounting screws (4 pcs, M3 x 5L): Diameter 2.9
mm, Length 5 mm.
2. Align the wall mount plate over the screw on the wall.
3. To mount the wall plate to the wall, please use screws
of the size indicated in the illustration below (users must
provide their own screws).
Wall Mounting Screw Dimensions
Wall
Mounting
PowerConnection(Cont.)
