1 Startup Manual
EKI-2706E-1GFP/I&EKI-2706G-1GFP/I
Industrial Unmanaged PoE Switch
Overview
The EKI-2706 series supports 48VDC redundant
power input and is secured with a double protec-
tion mechanism: Power Polarity Reverse Protect
and an Overload Current Resetable Fuse. The
EKI-2706 series supports up to 4 IEEE 802.3 af/
at PoE ports, and is more convenient for users to
power up their devices. Each port of the EKI-2706
has two LED’s to show the link status transmis-
sion speed and collision status. It also provides
a relay output for an event alarm. In the event of
a power failure, the built-in LED will activate the
alarm to notify administrators. Engineers can
verify the hardware status by checking the LED,
and make troubleshooting quick and easy. The
compact EKI-2706 comes with IP30 rated metal
housing to help against ingress from dusty indus-
trial environments.
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.1ab, 802.1z
• LAN:
– : EKI-2706E-1GFP/I
4 x 10/100Mbps PoE ports (RJ-45),
1 x 100/1000Mbps(RJ45),1x100/1000Mbps
(SFP)
– : EKI-2706G-1GFP/I
4 x 10/100/1000Mbps PoE ports(RJ-45),
1 x 100/1000Mbps(RJ45),1x100/1000Mbps
(SFP)
• Ethernet RJ-45: Up to 100 m
• SFP: Up to 110 Km (depends on SFP)
• Connectors: 5 x RJ-45, 1 x SFP
• Switch Architecture: Store and Forward
• Power Requirement: 48V
DC
, redundant Power
Input with reverse polarity protection.
• Power Consumption: Max. 2W
• Power Budget: 90W
• Dimensions (W x H x D): 30 x 140 x 95 mm
• Enclosure: IP30
• Operating Temperature:
- EKI-2706E-1GFP & EKI-2706G-1GFP:
-10 ~ 60°C (-40 ~ 140°F)
- EKI-2706E-1GFPI & EKI-2706G-1GFPI:
-40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~
185°F)
• Operating Humidity: 10 ~ 95% (non-condens-
ing)
• Storage Humidity: 10 ~ 95% (non-condensing)
• Safety: UL 61010
• EMC: FCC Class A, CE
• Warranty: 5 years
Packing List
Before installation, please make sure that you
have received the following:
• 1 x EKI-2706 Ethernet Switch
• 2 x Wall mounting brackets with screws
• 1 x DIN-rail Mounting Bracket and Screws
• 1 x EKI-2706 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
Notes
For more information on this and other Advan-
tech
products, please visit our websites at:
http://www.advantech.com/products/
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-2706.
Part No: 2009270601 2nd Edition
August 2016
STARTUP MANUAL
User Manual
For more detailed information, please refer to the
full manual which can be found on the Advan-
tech’s website.
Startup Manual 2

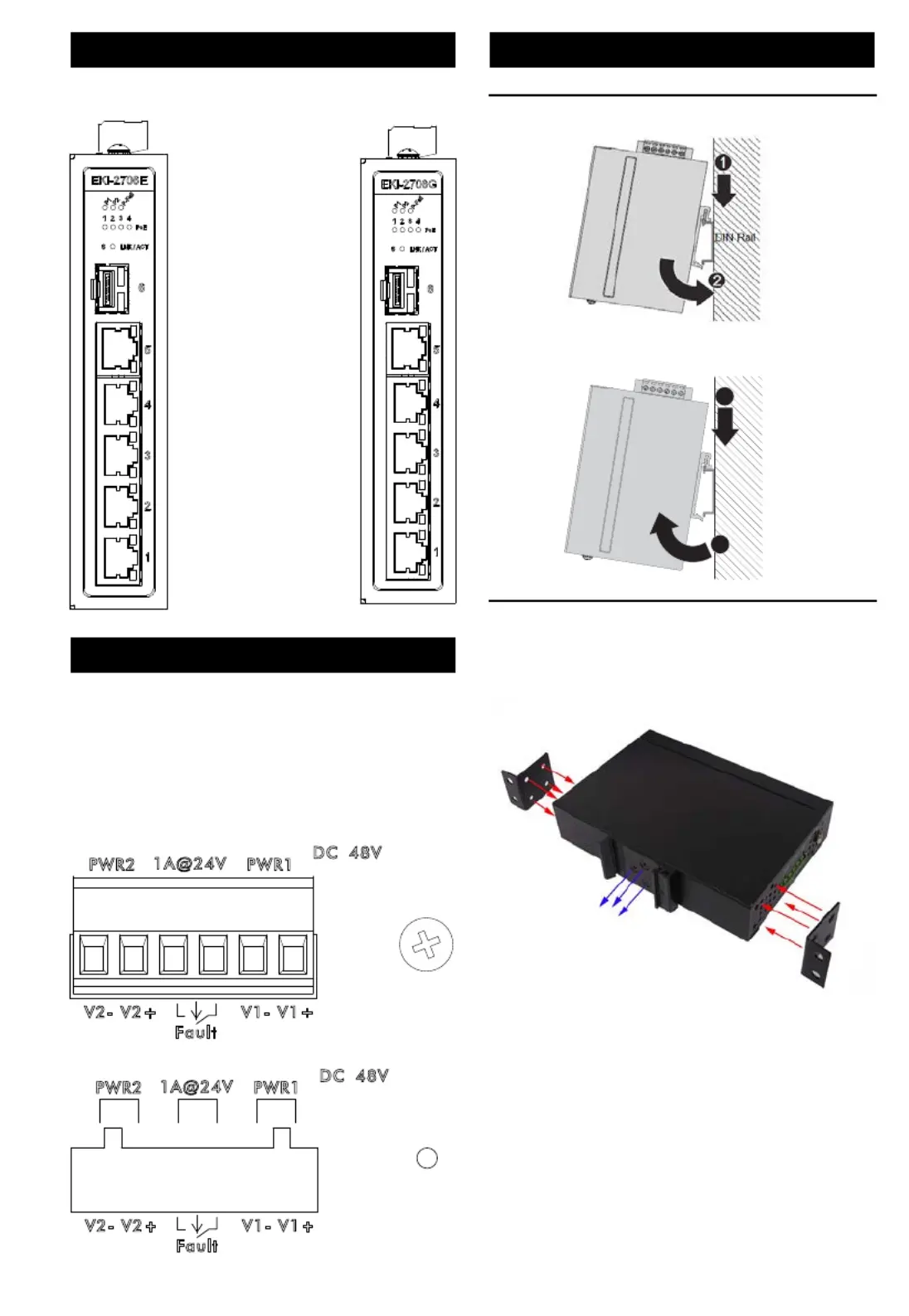

Overview
Mounting
DIN-rail Mounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail.
Wall Mounting
1. Attach the brackets included to the switch with
screws.
2. With the brackets attached, hang the switch to
nails on the wall.
Power Connection
The EKI-2706 series switch supports dual
48 V
DC
power inputs and changes relay status
when power failure occurs.
1. Insert the positive and negative wires into the
V+ and V- contacts on the terminal block
connector.
2. Tighten the wire-clamps screws to prevent the
DC wires coming loose.
EKI-2706G
\
1
2
EKI-2706E
